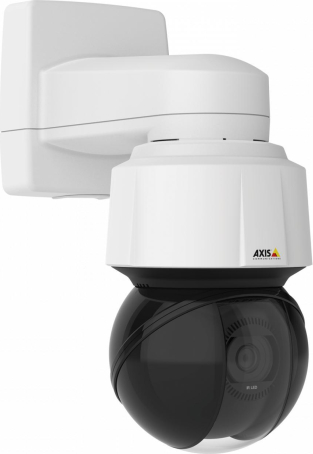

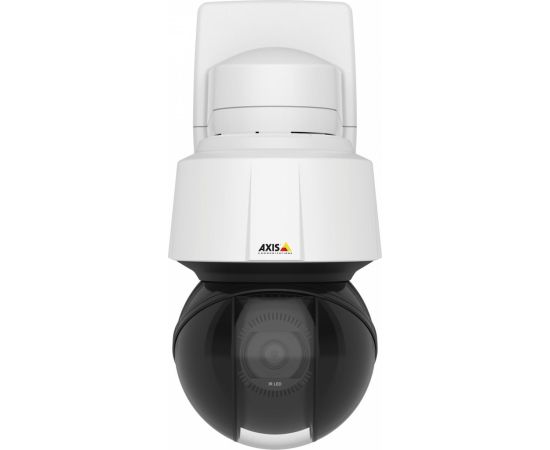

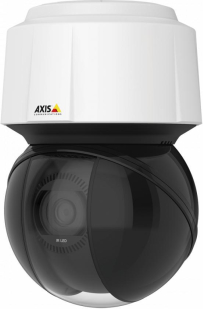

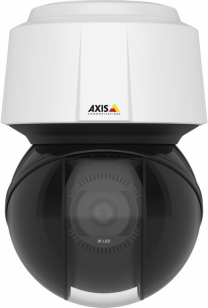

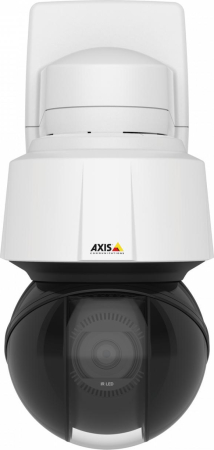

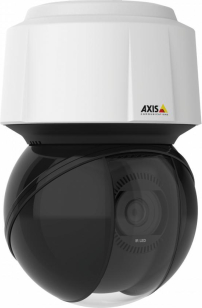

AXIS Q6135-LE offers HDTV 1080p with 32x optical zoom. It features OptimizedIR up to 250 m (820 ft) or more depending on the scene and Lightfinder 2.0 for clear, sharp images even in challenging light. Sharpdome technology allows you to see 20° above the horizon with the same sharp image quality as below. It includes orientation aid and autotracking 2 with click and track functionality. Privacy masking with mosaic lets you pixelate whole areas of the scene. It includes enhanced security features such as signed firmware, secure boot and TPM module. Plus, Axis Zipstream with support for H.264 and H.265.
- Autotracking 2 and orientation aid; HDTV 1080p with 32x optical zoom; Lightfinder 2.0; OptimizedIR (250 m/820 ft range); TPM, FIPS 140-2 level 2 certified
Manufacturer Website:
https://www.axis.com/products/axis-q6135-le
|
| Summary | Axis 01959-007. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.01 lx, Lens viewing angle, horizontal: 58.3 – 2.4, Lens viewing angle, vertical: 34.9 – 1.3. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 32x, Digital zoom: 12x, Focal length range: 4.3 - 137.6 mm | | Category Code | FNC | | CnCode | 85258900 | | Unit Box Height | 0.22 | | Unit Box Length | 0.365 | | Unit Box Width | 0.22 | | Form factor | Dome | | Housing material | Aluminium/Polycarbonate (PC) | | IK code | IK08, IK10 | | International Protection (IP) code | IP66 | | Mounting type | Ceiling | | Product colour | Black/White | | Auto-tracking | Jā | | Connectivity technology | Wired | | Day/night mode | Jā | | Infrared (IR) cut-off filter | Jā | | Languages support | English/French/German/Italian/Japanese/Korean/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese | | Number of languages | 11 | | Placement supported | Indoor & outdoor | | Processor model | ARTPEC-7 | | PTZ control | Jā | | Tour recording | Jā | | Type | IP security camera | | Wide Dynamic Range (WDR) | Jā | | Camera pan control | Jā | | Camera shutter speed | 1/66500 - 2 s | | Camera tilt control | Jā | | Lens viewing angle, horizontal | 58.3 - 2.4 ° | | Lens viewing angle, vertical | 34.9 - 1.3 ° | | Minimum illumination | 0.01 lx | | Pan range | 0 - 360 ° | | Pan speed | 700 °/sec | | Tilt angle range | 20 - 90 ° | | Tilt speed | 500 °/sec | | Optical sensor size | 1/2.8 " | | Progressive scan | Jā | | Sensor type | CMOS | | Auto focus | Jā | | Digital zoom | 12 x | | Focal length range | 4.3 - 137.6 mm | | Maximum aperture number | 4 | | Minimum aperture number | 1.4 | | Number of lenses | 1 | | Optical zoom | 32 x | | Zoom capability | Jā | | Infra-red wavelength | 850 nm | | LED type | IR | | Night vision | Jā | | Night vision distance | 250 m | | Frame rate | 60 fps | | Image quality adjustment | Brightness/Contrast/Saturation/Sharpness | | Maximum resolution | 1920 x 1080 pixels | | Privacy masking | Jā | | Supported graphics resolutions | 1920 x 1080 (HD 1080)/320 x 180 | | Supported video modes | 1080p | | Text caption overlay | Jā | | Video compression formats | H.264/H.265/M-JPEG | | Video streaming | Jā | | Audio system | 2-way | | Bluetooth | Nē | | Ethernet LAN | Jā | | Networking standards | IEEE 802.1x/IEEE 802.3at | | Quality of Service (QoS) support | Jā | | Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTPSa , HTTP/2, SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, NTCIP, LLDP, MQTT, Sy | | Wi-Fi | Nē | | Built-in HDD | Nē | | Card reader integrated | Jā | | Compatible memory cards | MicroSD (TransFlash)/MicroSDHC/MicroSDXC | | Flash memory | 512 MB | | Internal memory | 1024 MB | | Ethernet LAN (RJ-45) ports | 1 | | Alert notification type | E-mail | | Digest authentication | Jā | | HTTPS encryption | Jā | | IP address filtering | Jā | | Password protection | Jā | | Pixel counter | Jā | | Video motion detection | Jā | | AC input voltage | 100 - 240 V | | Power consumption (max) | 51 W | | Power consumption (Power over Ethernet (PoE)) | 37 W | | Power consumption (typical) | 13.5 W | | Power source type | AC,PoE | | Operating relative humidity (H-H) | 10 - 100 % | | Operating temperature (T-T) | -30 - 50 °C | | Storage relative humidity (H-H) | 5 - 95 % | | Storage temperature (T-T) | -40 - 70 °C | | Diameter | 165 mm | | Height | 241 mm | | Weight | 3000 g | | Manual | Jā | | Number of cameras | 1 | | Doesn't contain | PVC | | Warranty period | 5 year(s) | | Units per Shipping Box | 1 | | Unit Calculated Volume | 0.01767 cubm | | Unit Calculated Weight | 3.63 kg |
|
