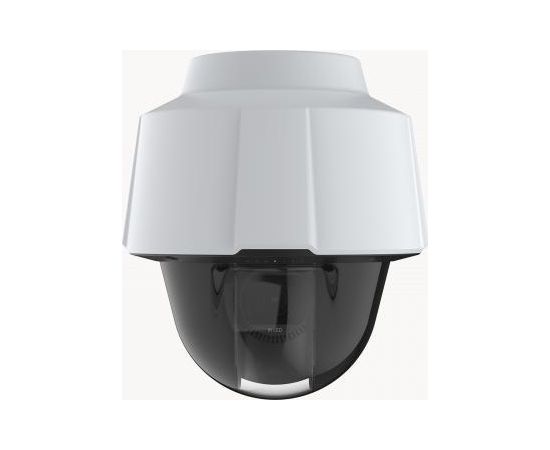

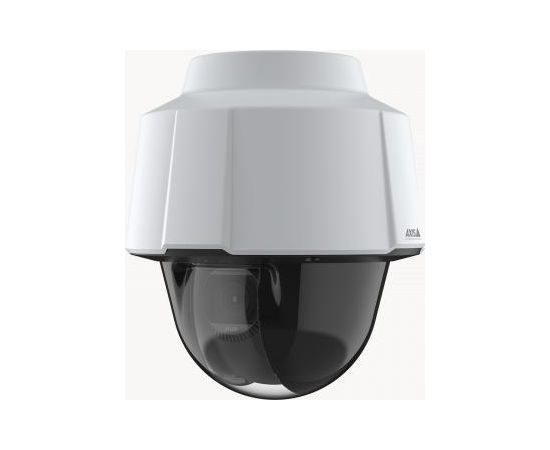

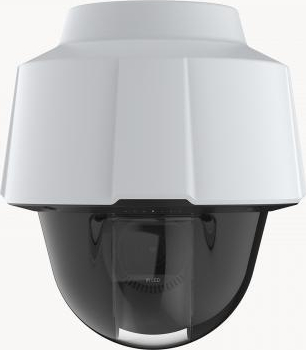

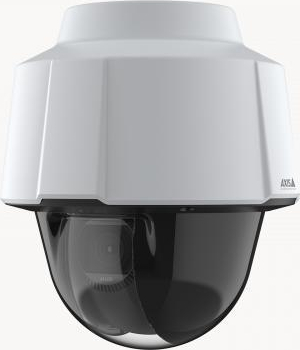

| Summary | Axis 02413-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Bulb. Minimum illumination: 0.1 lx, Field of view (FOV) angle: 57.1°, Lens viewing angle, horizontal: 57.1°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Optical zoom: 30x, Digital zoom: 12x, Focal length range: 4.5 - 135 mm |
| Category Code | FNC |
| CnCode | 85258900 |
| Unit Box Height | 0.23 |
| Unit Box Length | 0.32 |
| Unit Box Width | 0.23 |
| Form factor | Bulb |
| Housing material | Plastic |
| IK code | IK10 |
| International Protection (IP) code | IP66 |
| Mounting type | Wall |
| Product colour | White |
| Auto-tracking | Jā |
| Built-in processor | Jā |
| Connectivity technology | Wired |
| Day/night mode | Jā |
| Infrared (IR) cut-off filter | Jā |
| Languages support | English/French/German/Italian/Japanese/Korean/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese |
| Number of languages | 12 |
| Placement supported | Outdoor |
| Preset points | Jā |
| Processor model | ARTPEC-4 |
| PTZ control | Jā |
| PTZ modes | Preset point |
| Remote viewing | Jā |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Jā |
| Camera pan control | Jā |
| Camera pixel size | 2.9 µm |
| Camera shutter speed | 1/50000 - 1/5 s |
| Camera shutter type | Electronic |
| Camera tilt control | Jā |
| Field of view (FOV) angle | 57.1 ° |
| Lens viewing angle, horizontal | 57.1 ° |
| Lens viewing angle, vertical | 34.4 ° |
| Minimum illumination | 0.1 lx |
| Pan range | 0 - 360 ° |
| Tilt angle range | 0 - 90 ° |
| Number of sensors | 1 |
| Optical sensor size | 1/2.9 " |
| Progressive scan | Jā |
| Sensor type | CMOS |
| Digital zoom | 12 x |
| Focal length range | 4.5 - 135 mm |
| Number of lenses | 1 |
| Optical zoom | 30 x |
| Zoom capability | Jā |
| LED type | IR |
| Night vision | Jā |
| Night vision distance | 200 m |
| Bit rate control | Variable Bit Rate (VBR) |
| Frame rate | 60 fps |
| Gain control type | Auto |
| Image quality adjustment | Brightness/Contrast/Saturation/Sharpness |
| Image stabilizer | Jā |
| Maximum resolution | 2688 x 1512 pixels |
| Privacy masking | Jā |
| Supported graphics resolutions | 2688 x 1512 |
| Total megapixels | 4 MP |
| Video compression formats | AVC/H.264/H.265/HEVC |
| Video intelligence analytic | Jā |
| Video recording | Jā |
| Video streaming | Jā |
| Audio detection | Jā |
| Audio formats supported | AAC-LC/ADPCM/G.711/G.726/LPCM/OPUS/PCM |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Audio system | 2-way |
| Sample rate | 48 kHz |
| Sample rates | 8 - 48 kHz |
| Bluetooth | Nē |
| Ethernet LAN | Jā |
| Live view | Jā |
| Networking standards | IEEE 802.1x |
| Quality of Service (QoS) support | Jā |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH |
| Wi-Fi | Nē |
| Built-in HDD | Nē |
| Card reader integrated | Jā |
| Compatible memory cards | MicroSD (TransFlash)/SDHC/SDXC |
| Flash memory | 512 MB |
| Internal memory | 1024 MB |
| DC-in jack | Jā |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Jā |
| Alert notification type | E-mail,Text alert message |
| Digest authentication | Jā |
| IP address filtering | Jā |
| Network access storage (NAS) | Jā |
| Password protection | Jā |
| Pixel counter | Jā |
| Security algorithms | 256-bit AES-XTS/FIPS 140-2 |
| Video motion detection | Jā |
| Remotely operated | Jā |
| DC output voltage | 10,24,28 |
| Power consumption (max) | 30 W |
| Power consumption (typical) | 12 W |
| Power source type | DC,PoE |
| Operating relative humidity (H-H) | 10 - 100 % |
| Operating temperature (T-T) | -30 - 50 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 65 °C |
| Diameter | 205 mm |
| Height | 242 mm |
| Weight | 2500 g |
| Compliance certificates | REACH/RoHS |
| Sustainability compliance | Jā |
| Number of cameras | 1 |
| Model | P5676-LE |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.01693 cubm |
| Unit Calculated Weight | 3 kg |
