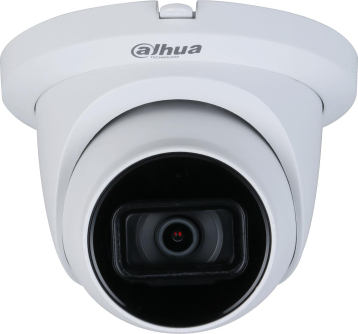

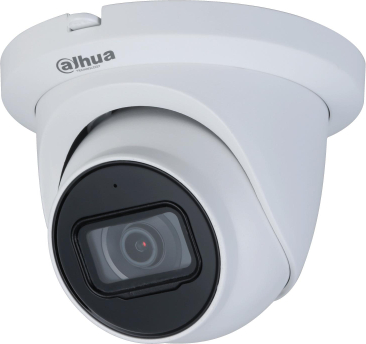

CAMERA HDCVI 5MP EYEBALL/HDW2501TMQ-A-0280B-S2 DAHUA

DH-HAC-HDW2501TMQ-A-0280B-S2
Preces ID:1830655
7430
Piegādātāja noliktavā: 16 prece(s)
Piegāde
Apmaksas veidi
Mūsu priekšrocības

24 mēnešu garantija

SMS / E-pasta paziņojumi

Preču atgriešana 14 dienu laikā

Dažādi maksājuma veidiPay orders in convenient ways: cash to the courier, by bank transfer on the receipt of the bank or by credit card right at the time of the order.

Godīga cenaLepojamies, ka arī juridiskām personām esošā cena ir bez kādiem papildus maksājumiem!

System Overview
Experience 5MP full HD video and the simplicity of using existing cabling infrastructure with HDCVI. The Pro series 5MP HDCVI camera features a compact design and offers a high quality image at a friendly price. It offers various motorized/fixed lens models with 120 dB true WDR and a multi-language OSD and HD/SD switchable output. Its structural flexibility and high cost-performance makes the camera an ideal choice for SMB solutions.

Functions
4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio, data and power. Dual-way data transmission allows the HDCVI camera to interact with the XVR, such as sending control signal or triggering alarm. Moreover, HDCVI technology supports PoC for construction flexibility.

Easy Installation
HDCVI Quick-to-install eyeball adopts quick-to-install pedestal, which can achieve easier installation than conventional eyeball. Quick-to-install camera reduces time and labor costs.


Long Distance Transmission

HDCVI technology guarantees real-time transmission at long distance without any loss. It supports up to 700 m for 5MP HD video via coaxial cable, and up to 300 m via UTP cable.

Simplicity
HDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling. The plug and play approach enables full HD video surveillance without the hassle of configuring a network.

Starlight
With the adoption of large sized high performance sensor, the camera is able to provide incomparable performance even under extreme lowlight environment. The starlight feature allows more details to be captured and accurate color to be recognized at night or in scenes with limited illumination.

Broadcast-quality Audio
Audio information is used as supplementary evidence in video surveillance applications. The HDCVI camera supports audio signal transmission over coaxial cable. In addition, it adopts unique audio processing and transmission technology that best restores source audio and eliminates noise, guaranteeing the quality and effectiveness of collected audio information.

Smart IR
The camera is designed with IR LED illumination for best lowlight performance. Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination. Dahua unique Smart IR adjusts to the intensity of camera's infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing images as the object comes closer to the camera.

Wide Dynamic Range
Embedded with industry leading wide dynamic range (WDR) technology, vivid pictures are achieved even in the most intense contrast lighting conditions. True WDR (120dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

Advanced 3DNR
3DNR is noise reduction technology that detects and eliminates random noises by comparing two sequential frames. Dahua’s advanced 3DNR technology allows remarkable noise reduction with little impact to sharpness, especially under limited lighting condition. Besides, the advanced 3DNR effectively decreases the band width and saves

  • Max 25 fps@5MP (16:9 video output)
  • Starlight, 120 dB true WDR, 3D NR
  • CVI/CVBS/AHD/TVI switchable
  • Quick-to-install eyeball saves installation time
  • Built-in mic
  • Max. IR length 60 m, Smart IR
  • IP67, DC12V±30%
  • 2.8 mm fixed lens



Manufacturer Website:
https://www.dahuasecurity.com/products/All-Products/HDCVI-Cameras/Pro-Series/5MP/Starlight/HAC-HDW2501TMQ-A

Summary Dahua Technology Pro HAC-HDW2501TMQ-A-0280B-S2. Type: CCTV security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Turret. Angle of rotation: 360°, Lens viewing angle, horizontal: 132°, Lens viewing angle, vertical: 111°. Sensor type: CMOS. Fixed focal length: 2.8 mm, Detect distance (wide): 63.6 m, Observe distance (wide): 25.4 m
Category Code HSC
CnCode 85258900
Unit Box Height 0.135
Unit Box Length 0.14
Unit Box Width 0.155
Certification CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368- 1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Connectivity technology Wired
Day/night mode
Dynamic range 120 dB
Number of languages 11
Placement supported Indoor & outdoor
Type CCTV security camera
Wide Dynamic Range (WDR)
Form factor Turret
Mounting type Ceiling/Wall/Pole
Product colour White
Angle of rotation 360 °
Camera pan control
Camera shutter type Electronic
Camera tilt control
Lens viewing angle, diagonal 58 °
Lens viewing angle, horizontal 132 °
Lens viewing angle, vertical 111 °
Minimum illumination 0 lx
Pan range 0 - 360 °
Tilt angle range 0 - 78 °
White balance ATW
Progressive scan
Sensor type CMOS
Closest focusing distance 0.9 m
Detect distance (wide) 63.6 m
Fixed focal length 2.8 mm
Identify distance (wide) 6.4 m
Maximum aperture number 1.6
Number of lenses 1
Observe distance (wide) 25.4 m
Recognize distance (wide) 12.7 m
LED type IR
Night vision
Night vision distance 60 m
Number of illumination LEDs 2
Back Light Compensation (BLC)
Flip & mirror
Frame rate 30 fps
Gain control type Auto/Manual
Highlight Compensation (HLC)
Maximum resolution 2880 x 1620 pixels
Noise reduction
Noise reduction technology 2D noise reduction
Privacy masking
Smart IR
Supported graphics resolutions 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2560 x 1440/2880 x 1620/960 x 480/960 x 576
Supported video modes 1440p/1620p/480p/576p
Total megapixels 5 MP
Built-in microphone
Signal-to-Noise Ratio (SNR) 65 dB
Bluetooth
Ethernet LAN
Wi-Fi
Built-in HDD
BNC output ports 1
DC output voltage 12
Power consumption (typical) 5.9 W
Power source type DC
Operating relative humidity (H-H) 0 - 95 %
Operating temperature (T-T) -40 - 60 °C
Storage relative humidity (H-H) 0 - 95 %
Storage temperature (T-T) -40 - 60 °C
Diameter 121.9 mm
Height 99.1 mm
Weight 540 g
Package weight 730 g
Number of cameras 1
Units per Shipping Box 1
Unit Calculated Volume 0.002929 cubm
Unit Calculated Weight 0.61 kg
Ražotājs:
DAHUA
