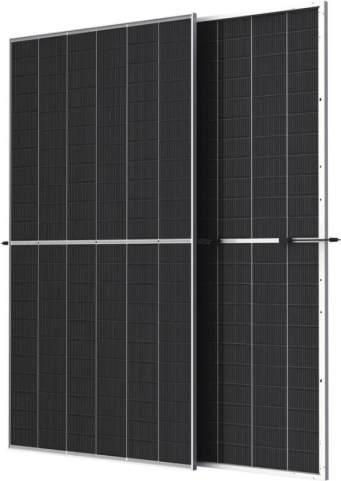

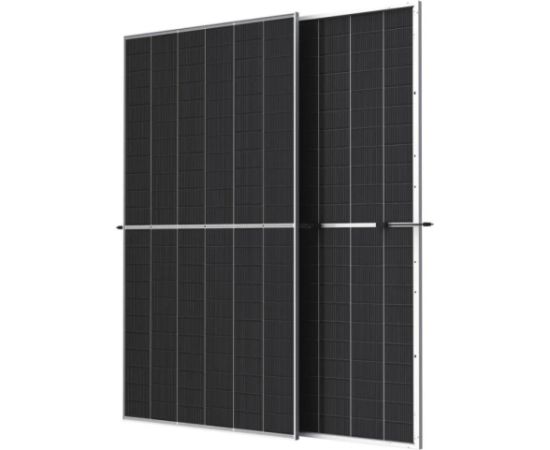

TrinaSolar 715 W VERTEX TSM-NEG21C.20 N-Type BIFACIAL Dual Glass i-TOPCon Monocrystalline

TSM-NEG21C.20 N-TYPE 715 W
Preces ID:1894831
17920 €
Piegādātāja noliktavā: 50 prece(s)
+ −
Pievienot vēlmju sarakstam
Pasūtot, birojā pēc 1-3 darba dienām
Piegāde
Apmaksas veidi
Mūsu priekšrocības

24 mēnešu garantija

SMS / E-pasta paziņojumi

Preču atgriešana 14 dienu laikā

Dažādi maksājuma veidiPay orders in convenient ways: cash to the courier, by bank transfer on the receipt of the bank or by credit card right at the time of the order.

Godīga cenaLepojamies, ka arī juridiskām personām esošā cena ir bez kādiem papildus maksājumiem!

More information: original (external link)

Gross depth (mm) 2390.00 mm
Gross height (mm) 40.00 mm
Gross weight 38.79 kg
Gross width (mm) 1310.00 mm
Net weight 38.30 kg
Packing quantity 33 pc(s)
Paper/Pasteboard 400.00 g
Plastic (No PET) 85.00 g
Tare weight (kg) 0.49 kg
Volume (m3) 0.13 m³
Embeeded battery Nē
WEEE tax Jā
WEE classification CL109:4B:2024-01-01
Producer TrinaSolar
Palette Qty 33 pc(s)
Net weight master carton 1263.9 kg
Tare weight master carton 16.005 kg
Peak power 715 W
Power Tolerance-PMAX 0/+5 W
Maximum Power Voltage 41.1 V
Open Circuit Voltage 49.2 V
Short Circuit Current 18.44 A
Efficiency 23.2 %
Number of cells 132
Glass thickness 2 mm
Module weight 38.3 kg
Module Dimensions 2384 x 1303 x 33 mm
J-Box IP68
Frame dimensions 33 mm
Maximum System Voltage 1500 V
Operating temperature (T-T) -40 to +85 °C
Temperature Coefficient of PMAX -0.29%/°C
Temperature Coefficient of VOC -0.24%/°C
Temperature Coefficient of ISC 0.04%/°C
Product workmanship warranty 12 year(s)
Power warranty 30 year(s)
First year degradation 1 %
Annual power degradation 0.40 %
Solar Cells Monocrystalline
Quantity per shipping carton 33 pc(s)
Producer product name VERTEX TSM-NEG21C.20
Producer product family N-Type BIFACIAL Dual Glass i-TOPCon Monocrystalline
Warranty 144 month(s)
