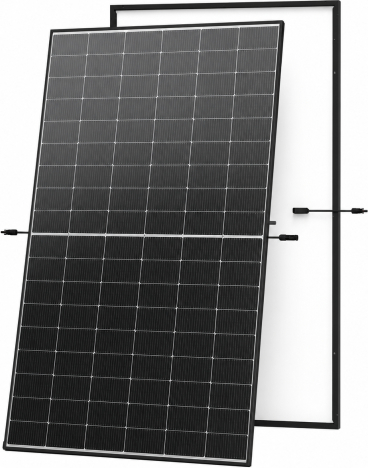

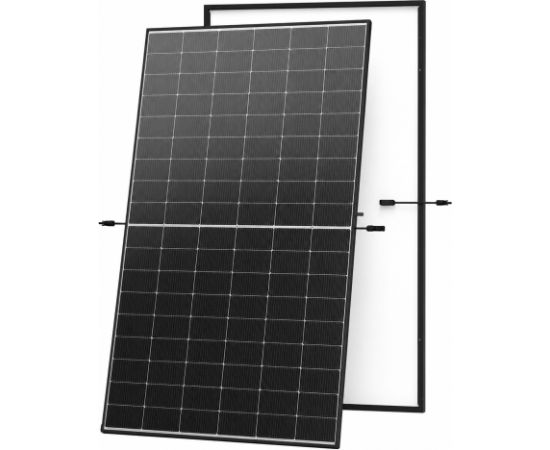

TrinaSolar 515 W VERTEX S+ NEG18R.28 N-Type Monofacial Dual Glass i-TOPCon Monocrystalline

KODS: TSM-NEG18R.28 515W

Preces ID:1895533

92⁴⁰ ^€

Piegādātāja noliktavā: 50 prece(s)

+ −

Pasūtot, birojā pēc 1-3 darba dienām

Piegāde

Apmaksas veidi

Mūsu priekšrocības

24 mēnešu garantija

SMS / E-pasta paziņojumi

Preču atgriešana 14 dienu laikā

Dažādi maksājuma veidiPay orders in convenient ways: cash to the courier, by bank transfer on the receipt of the bank or by credit card right at the time of the order.

Godīga cenaLepojamies, ka arī juridiskām personām esošā cena ir bez kādiem papildus maksājumiem!

RažotājsTRINASOLAR

Preces apraksts
Specifikācija
Uzdot jautājumu
Energoefektivitātes lapa

More information: NEG18R (external link)
More information: original (external link)

Gross depth (mm)	2000.00 mm
Gross height (mm)	30 mm
Gross weight	25.00 kg
Gross width (mm)	1140.00 mm
Net weight	23.50 kg
Packing quantity	1.00 pc(s)
Paper/Pasteboard	1200.00 g
Plastic (No PET)	300.00 g
Tare weight (kg)	1.50 kg
Volume (m3)	0.0684 m³
Embeeded battery	Nē
WEEE tax	Jā
WEE classification	CL109:4B:2024-01-01
Producer	TrinaSolar
Peak power	515 W
Maximum Power Voltage	33.9 V
Open Circuit Voltage	40.9 V
Short Circuit Current	15.96 A
Efficiency	23.4 %
Number of cells	108
Glass thickness	1.6 mm
Module weight	23.5 kg
Module Dimensions	1961 x 1134 x 30 mm
J-Box	IP68
Maximum System Voltage	1500 V
Operating temperature (T-T)	-40 to +70 °C
Temperature Coefficient of PMAX	-0.29%/°C
Temperature Coefficient of VOC	-0.24%/°C
Temperature Coefficient of ISC	0.04%/°C
First year degradation	1 %
Annual power degradation	0.4 %
Solar Cells	Monocrystalline
Producer product name	VERTEX S+ NEG18R.28
Producer product family	N-Type Monofacial Dual Glass i-TOPCon Monocrystalline
Palette Qty	36 pc(s)
Warranty	300 month(s)
