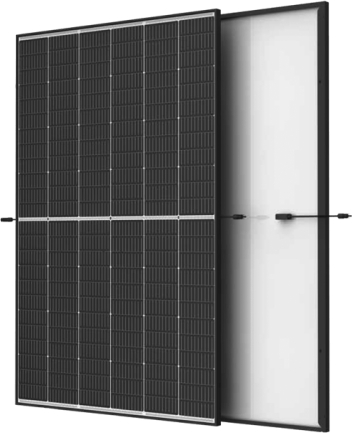

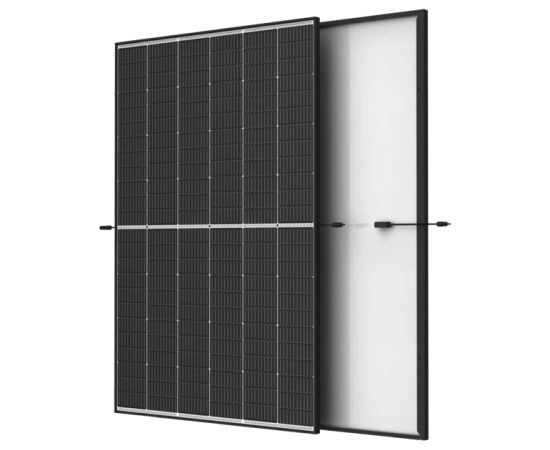

TrinaSolar 510 W VERTEX S+ NEG18R.28 N-Type Dual Glass TOPCon Monocrystalline

TSM-NEG18R.28 510W
Preces ID:1894829
8680 €
Piegādātāja noliktavā: 50 prece(s)
+ −
Pievienot vēlmju sarakstam
Pasūtot, birojā pēc 1-3 darba dienām
Piegāde
Apmaksas veidi
Mūsu priekšrocības

24 mēnešu garantija

SMS / E-pasta paziņojumi

Preču atgriešana 14 dienu laikā

Dažādi maksājuma veidiPay orders in convenient ways: cash to the courier, by bank transfer on the receipt of the bank or by credit card right at the time of the order.

Godīga cenaLepojamies, ka arī juridiskām personām esošā cena ir bez kādiem papildus maksājumiem!

More information: original (external link)

Gross depth (mm) 2000 mm
Gross height (mm) 30.00 mm
Gross weight 25.00 kg
Gross width (mm) 1150 mm
Net weight 23.50 kg
Packing quantity 1.00 pc(s)
Paper/Pasteboard 1200.00 g
Plastic (No PET) 300.00 g
Tare weight (kg) 1.50 kg
Volume (m3) 0.069 m³
Embeeded battery Nē
WEEE tax Jā
WEE classification CL109:4B:2024-01-01
Palette Qty 36 pc(s)
Temperature Coefficient of PMAX -0.29%/°C
Peak power 510 W
Power Tolerance-PMAX 0/+5 W
Maximum Power Voltage 33.7 V
Open Circuit Voltage 40.6 V
Short Circuit Current 15.93 A
Efficiency 22.9 %
Number of cells 108
Glass thickness 1.6 mm
Module weight 23.5 kg
Module Dimensions 1961 x 1134 x 30 mm
J-Box IP68
Frame dimensions 30 mm
Maximum System Voltage 1500 V
Operating temperature (T-T) -40 to +85 °C
Temperature Coefficient of VOC -0.24%/°C
Temperature Coefficient of ISC 0.04%/°C
Product workmanship warranty 15 year(s)
Power warranty 30 year(s)
First year degradation 1 %
Annual power degradation 0.4 %
Solar Cells Monocrystalline
Quantity per shipping carton 36 pc(s)
Producer product name VERTEX S+ NEG18R.28
Producer product family N-Type Dual Glass TOPCon Monocrystalline
Producer TrinaSolar
Warranty 300 month(s)
