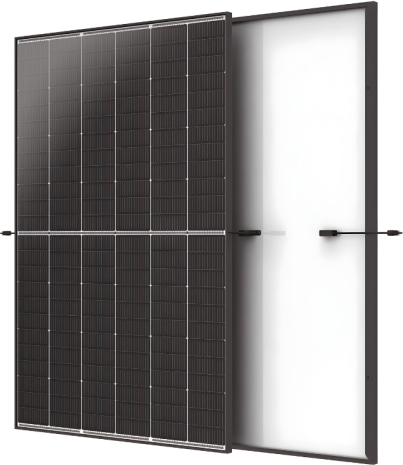

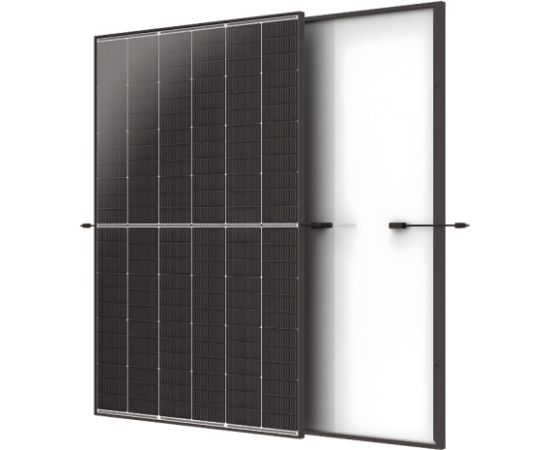

TrinaSolar 465 W VERTEX S+ NEG9R.28 N-type Dual Glass i-TOPCon Monocrystalline

KODS: TSM-NEG9R.28 465W

Preces ID:1895543

83⁶⁰ ^€

Piegādātāja noliktavā: 50 prece(s)

+ −

Pasūtot, birojā pēc 1-3 darba dienām

Piegāde

Apmaksas veidi

Mūsu priekšrocības

24 mēnešu garantija

SMS / E-pasta paziņojumi

Preču atgriešana 14 dienu laikā

Dažādi maksājuma veidiPay orders in convenient ways: cash to the courier, by bank transfer on the receipt of the bank or by credit card right at the time of the order.

Godīga cenaLepojamies, ka arī juridiskām personām esošā cena ir bez kādiem papildus maksājumiem!

RažotājsTRINASOLAR

Preces apraksts
Specifikācija
Uzdot jautājumu
Energoefektivitātes lapa

More information: original (external link)

Gross depth (mm)	1800 mm
Gross height (mm)	30.00 mm
Gross weight	21.32 kg
Gross width (mm)	1150 mm
Net weight	21.00 kg
Packing quantity	1.00 pc(s)
Paper/Pasteboard	260.00 g
Plastic (No PET)	60.00 g
Tare weight (kg)	0.32 kg
Volume (m3)	0.0621 m³
Embeeded battery	Nē
WEEE tax	Jā
WEE classification	CL109:4B:2024-01-01
Producer	TrinaSolar
Palette Qty	36 pc(s)
Producer product name	VERTEX S+ NEG9R.28
Producer product family	N-type Dual Glass i-TOPCon Monocrystalline
Maximum Power Voltage	45.8
Power warranty	30
Product workmanship warranty	25
Annual power degradation	0.4
Peak power	465 W
Power Tolerance-PMAX	0/+5 W
Open Circuit Voltage	54.2 V
Short Circuit Current	10.85 A
Efficiency	23.5 %
Number of cells	144
Glass thickness	1.6 mm
Module weight	21 kg
Module Dimensions	1762 x 1134 x 30 mm
J-Box	IP68
Frame dimensions	30 mm
Maximum System Voltage	1500 V
Operating temperature (T-T)	-40 to +70 °C
Temperature Coefficient of PMAX	-0.29%/°C
Temperature Coefficient of VOC	-0.24%/°C
Temperature Coefficient of ISC	0.04%/°C
Solar Cells	Monocrystalline
Quantity per shipping carton	36 pc(s)
Warranty	300 month(s)
