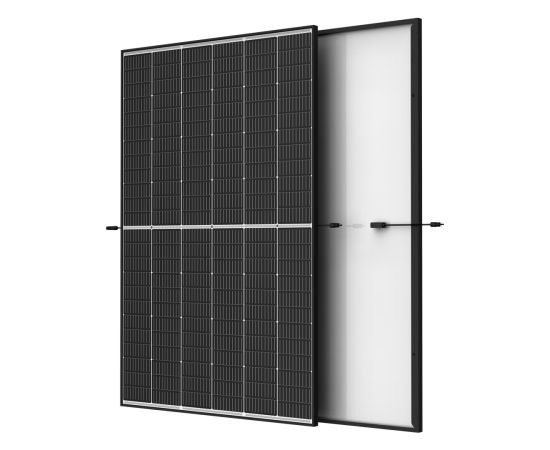

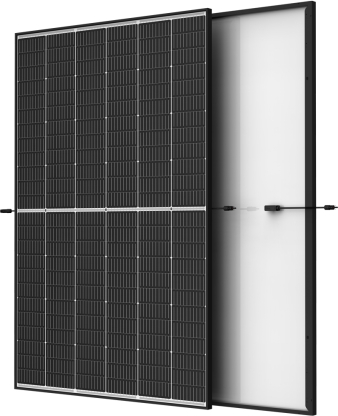

TrinaSolar 460 W VERTEX S+ NEG9R.28 N-Type i-TOPCon Dual Glass Monocrystalline

TSM-NEG9R.28 460W
Preces ID:1894835
12140 €
Piegādātāja noliktavā: 30 prece(s)
+ −
Pievienot vēlmju sarakstam
Pasūtot, birojā pēc 1-3 darba dienām
Piegāde
Apmaksas veidi
Mūsu priekšrocības

24 mēnešu garantija

SMS / E-pasta paziņojumi

Preču atgriešana 14 dienu laikā

Dažādi maksājuma veidiPay orders in convenient ways: cash to the courier, by bank transfer on the receipt of the bank or by credit card right at the time of the order.

Godīga cenaLepojamies, ka arī juridiskām personām esošā cena ir bez kādiem papildus maksājumiem!

More information: original (external link)

Gross depth (mm) 1762.00 mm
Gross height (mm) 30 mm
Gross weight 21.32 kg
Gross width (mm) 1134.00 mm
Net weight 21.00 kg
Packing quantity 1.00 pc(s)
Paper/Pasteboard 260.00 g
Plastic (No PET) 60.00 g
Tare weight (kg) 0.32 kg
Volume (m3) 0.05994324 m³
Embeeded battery Nē
WEEE tax Jā
WEE classification CL109:4B:2024-01-01
Producer TrinaSolar
Palette Qty 36 pc(s)
Peak power 460 W
Power Tolerance-PMAX 0/+5 W
Maximum Power Voltage 45.4 V
Open Circuit Voltage 53.8 V
Short Circuit Current 10.81 A
Efficiency 23 %
Number of cells 144
Module weight 21 kg
Module Dimensions 1762 x 1134 x 30 mm
J-Box IP68
Frame dimensions 30 mm
Maximum System Voltage 1500 V
Operating temperature (T-T) -40 to +85 °C
Temperature Coefficient of PMAX -0.29%/°C
Temperature Coefficient of VOC -0.24%/°C
Temperature Coefficient of ISC 0.04%/°C
Solar Cells Monocrystalline
Producer product name VERTEX S+ NEG9R.28
Producer product family N-Type i-TOPCon Dual Glass Monocrystalline
Warranty 300 month(s)
