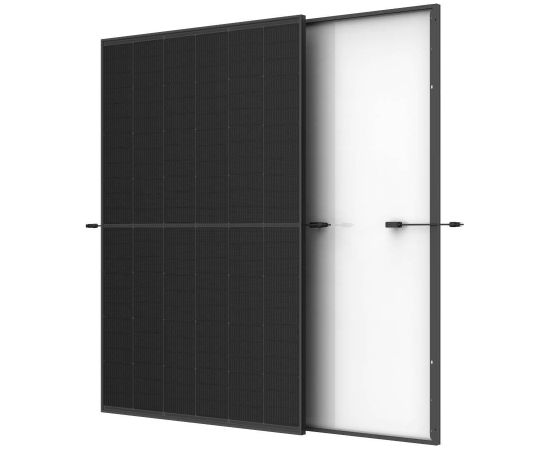

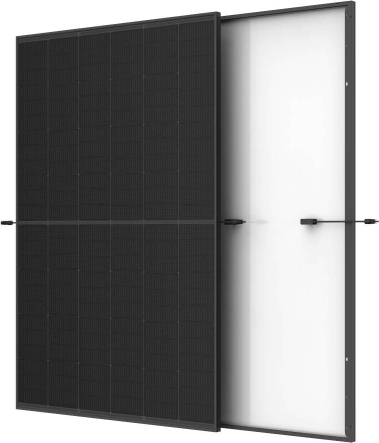

TrinaSolar 455 W VERTEX S+ NEG9R.25 Full Black N-Type Dual Glass TOPCon Monocrystalline

KODS: TSM-NEG9R.25 455W

Preces ID:1894886

83¹⁰ ^€

Piegādātāja noliktavā: 50 prece(s)

+ −

Pasūtot, birojā pēc 1-3 darba dienām

Piegāde

Apmaksas veidi

Mūsu priekšrocības

24 mēnešu garantija

SMS / E-pasta paziņojumi

Preču atgriešana 14 dienu laikā

Dažādi maksājuma veidiPay orders in convenient ways: cash to the courier, by bank transfer on the receipt of the bank or by credit card right at the time of the order.

Godīga cenaLepojamies, ka arī juridiskām personām esošā cena ir bez kādiem papildus maksājumiem!

RažotājsTRINASOLAR

Preces apraksts
Specifikācija
Uzdot jautājumu
Energoefektivitātes lapa

More information: original (external link)

Gross depth (mm)	1762.00 mm
Gross height (mm)	30.00 mm
Gross weight	21.32 kg
Gross width (mm)	1134.00 mm
Net weight	21.00 kg
Packing quantity	1.00 pc(s)
Paper/Pasteboard	260.00 g
Plastic (No PET)	60.00 g
Tare weight (kg)	0.32 kg
Volume (m3)	0.06 m³
Embeeded battery	Nē
WEEE tax	Jā
WEE classification	CL109:4B:2024-01-01
Producer	TrinaSolar
Producer product name	VERTEX S+ NEG9R.25
Maximum Power Voltage	45
Open Circuit Voltage	53.4
Short Circuit Current	10.77
Solar Cells	Monocrystalline
Number of cells	144
Module weight	21
Module Dimensions	1762 x 1134 x 30
Frame dimensions	30
Power warranty	30
Power Tolerance-PMAX	0/+5 W
Efficiency	22.8 %
Glass thickness	1.6 mm
J-Box	IP68
Maximum System Voltage	1500 V
Operating temperature (T-T)	-40 to +85 °C
Temperature Coefficient of PMAX	-0.29%/°C
Temperature Coefficient of VOC	-0.24%/°C
Temperature Coefficient of ISC	0.04%/°C
Quantity per shipping carton	36 pc(s)
Producer product family	N-Type Dual Glass TOPCon Monocrystalline
Palette Qty	36 pc(s)
Peak power	455 W
Design	Full Black
Warranty	300 month(s)
