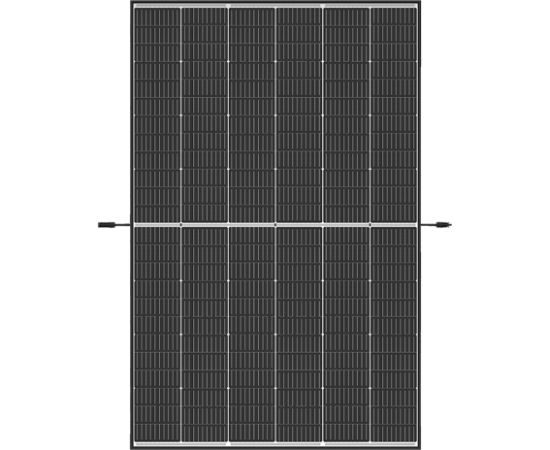

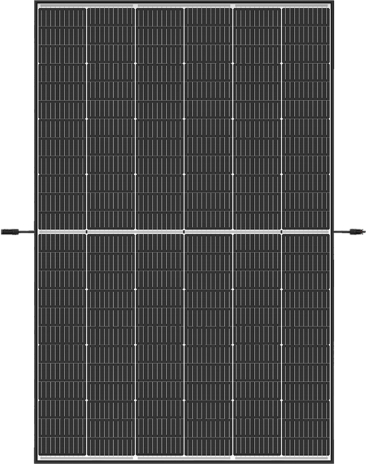

TrinaSolar 450 W VERTEX S+ NEG9R.28 N-Type Dual Glass TOPCon Monocrystalline

KODS: TSM-NEG9R.28 450W

Preces ID:1894834

68¹⁰ ^€

Piegādātāja noliktavā: 3 prece(s)

+ −

Pasūtot, birojā pēc 1-3 darba dienām

Piegāde

Apmaksas veidi

Mūsu priekšrocības

24 mēnešu garantija

SMS / E-pasta paziņojumi

Preču atgriešana 14 dienu laikā

Dažādi maksājuma veidiPay orders in convenient ways: cash to the courier, by bank transfer on the receipt of the bank or by credit card right at the time of the order.

Godīga cenaLepojamies, ka arī juridiskām personām esošā cena ir bez kādiem papildus maksājumiem!

RažotājsTRINASOLAR

Preces apraksts
Specifikācija
Uzdot jautājumu
Energoefektivitātes lapa

Gross depth (mm)	1762.00 mm
Gross height (mm)	30.00 mm
Gross weight	21.32 kg
Gross width (mm)	1134.00 mm
Net weight	21 kg
Packing quantity	1.00 pc(s)
Paper/Pasteboard	260.00 g
Plastic (No PET)	60.00 g
Tare weight (kg)	0.32 kg
Volume (m3)	0.06 m³
Embeeded battery	Nē
WEEE tax	Jā
WEE classification	CL109:4B:2024-01-01
Producer	TrinaSolar
Palette Qty	36 pc(s)
Peak power	450 W
Power Tolerance-PMAX	0/+5 W
Maximum Power Voltage	44.6 V
Open Circuit Voltage	52.9 V
Short Circuit Current	10.74 A
Efficiency	22.5 %
Number of cells	144
Glass thickness	1.6 mm
Module weight	21 kg
Module Dimensions	1762 x 1134 x 30 mm
J-Box	IP68
Frame dimensions	30 mm
Maximum System Voltage	1500 V
Operating temperature (T-T)	-40 to +85 °C
Temperature Coefficient of PMAX	-0.30%/°C
Temperature Coefficient of VOC	-0.24%/°C
Temperature Coefficient of ISC	0.04%/°C
Product workmanship warranty	15 year(s)
Power warranty	30 year(s)
First year degradation	1 %
Annual power degradation	0.4 %
Solar Cells	Monocrystalline
Quantity per shipping carton	36 pc(s)
Producer product name	VERTEX S+ NEG9R.28
Producer product family	N-Type Dual Glass TOPCon Monocrystalline
Warranty	300 month(s)
