CPU COOLER ACC THERMAL PAD/100X100X0.5 ACTPD00062A ARCTIC

KODS: ACTPD00062A

Preces ID:1908904

9¹⁰ ^€

Piegādātāja noliktavā: 100 prece(s)

+ −

Pasūtot, birojā pēc 1-2 darba dienām

Piegāde

Apmaksas veidi

Mūsu priekšrocības

24 mēnešu garantija

SMS / E-pasta paziņojumi

Preču atgriešana 14 dienu laikā

Dažādi maksājuma veidiPay orders in convenient ways: cash to the courier, by bank transfer on the receipt of the bank or by credit card right at the time of the order.

Godīga cenaLepojamies, ka arī juridiskām personām esošā cena ir bez kādiem papildus maksājumiem!

RažotājsARCTIC

Preces apraksts
Specifikācija
Uzdot jautājumu
Energoefektivitātes lapa

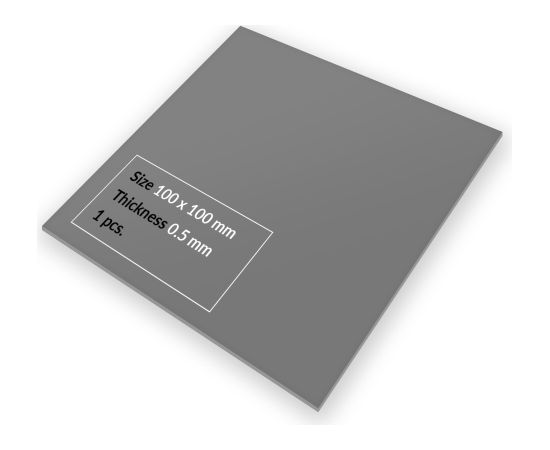

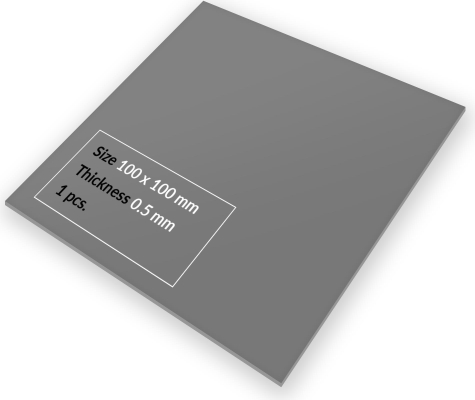

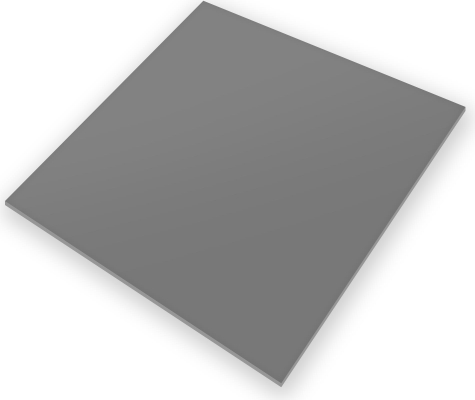

ARCTIC TP-4 100X100X0.5 Premium Performance Thermal Pad (ACTPD00062A)

High Performance — Extremely Soft
The silicone-based TP-4 combines high thermal conductivity with extremely low hardness and reliably compensates for manufacturing tolerances between chips.

Safe Application
Safe Application
Electrically insulating, non-adhesive, and easy to handle — for safe and reliable heat transfer.

Tailored Made for SP6
Minimizing Thermal Resistance
The thinner the pad, the lower the thermal resistance. Depending on mounting pressure, the TP-4 can be compressed to up to 60% of its original thickness.

Water Block Design for SP6
Bridging Uneven Surfaces
Adapts optimally to varying chip heights, air gaps, and uneven surfaces to ensure reliable contact.

Available in Various Thicknesses and Sizes
Available in Various Thicknesses and Sizes
Available in 0.5 mm, 1.0 mm, and 1.5 mm thicknesses as well as multiple sizes. Can be individually cut to size if needed.

Stackable Without Performance Loss
Stackable Without Performance Loss
Thanks to its low hardness and low interface resistance, multiple pads can be combined without affecting thermal transfer performance.

Versatile Applications
Ideal for RAM, chipsets, GPUs, consoles, laptops, and many other electronic components. Flexible, vibration-dampening, and easy to cut.

General Specifications
Operating Ambient Temperature -40-200 °C
Dimensions 100 (L) x 100 (W) x 0.5 (H) mm
Thermal Pad Specifications
Hardness 50 Shore OO
Specific Gravity 3.4 g/cm³
Breakdown Voltage 8620 V/mil
Dielectric Constant 7.2 @1 MHz
Volume Resistance 1.52 x 10^13 Ω-cm
Flammability Rating UL 94 V-0

Manufacturer Website:
https://www.arctic.de/en/en/TP-4/ACTPD00062A

Category Code	COA
CnCode	38249996
Unit Box Height	0.002
Unit Box Length	0.119
Unit Box Width	0.115
Model	ACTPD00062A
Model name	ARCTIC TP-4 100X100X0.5 Premium Performance Thermal Pad (ACTPD00062A)
Colour	Grey
Units per Shipping Box	200
Unit Calculated Volume	6.254E-05 cubm
Product Net Weight	0.025 kg
Unit Calculated Weight	0.033 kg
