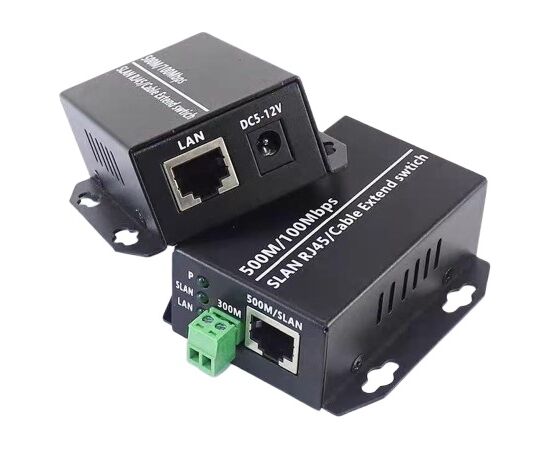

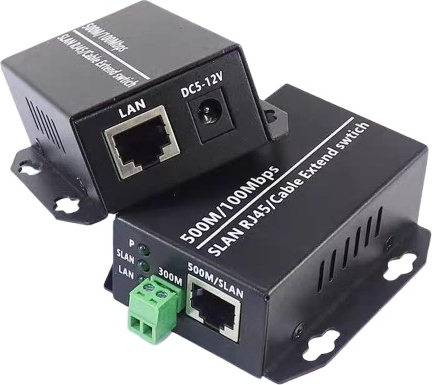

LAN Network Extender 10/100M, up to 300 m / 500 m, DC 5-12V
Designed to extend an Ethernet network signal up to 500 m using CAT5/CAT5e UTP twisted-pair cable, or up to 300 m using a two-wire line connected via Phoenix terminals. Supports 100 Mbps Ethernet speed and up to 94 Mbps actual data throughput. Suitable for IP cameras, CCTV video surveillance systems, and other Ethernet network equipment.


Features:
Extends the Ethernet network signal up to 500 metres via the RJ45 connection and up to 300 metres via Phoenix terminals.
The kit consists of two modules: transmitter TX and receiver RX.
Supports 100 Mbps Ethernet connection and up to 94 Mbps maximum data throughput.
Designed for use with CAT5 / CAT5e UTP twisted-pair cables or a two-wire cable.
The device operates from a 5-12 V DC power supply and features low power consumption of up to 2 W.
Supports IGMP multicast data transmission.
RJ45 and Phoenix-type terminal connections provide convenient connection of the network and transmission line.
LED indicators show power, SLAN link, and LAN activity status.
Operates over a wide temperature range from -10°C to +70°C.
The black metal housing features mounting tabs for convenient installation on a wall, inside a cabinet, or in other equipment locations.
Suitable for IP cameras, CCTV video surveillance systems, network equipment, and other installations where the standard Ethernet cable transmission distance is insufficient.


Technical specifications:
Power supply voltage: 5-12 V DC ±10%.
Power consumption: up to 2 W.
Transmission medium: CAT5 / CAT5e UTP twisted-pair cable / 2-wire cable.
Maximum transmission distance: up to 500 m (RJ45 / SLAN) / up to 300 m (Phoenix terminals).
Network speed: 100 Mbps Ethernet.
Maximum data throughput: 94 Mbps.
Multicast support: IGMP multicast.
Connectors: RJ45, 2-pin Phoenix-type terminal connector, DC power socket.
LED indicators: power, SLAN, LAN status.
Operating temperature: -10 °C to +70 °C.
Operating humidity: 0-95% RH.
Power adapter: 12 V, EU plug.
Housing colour: black.
Package contents: transmitter, receiver, power adapter (12V, EU plug).


Warranty: 24 months.


Ražotājs:
EXTRADIGITAL
