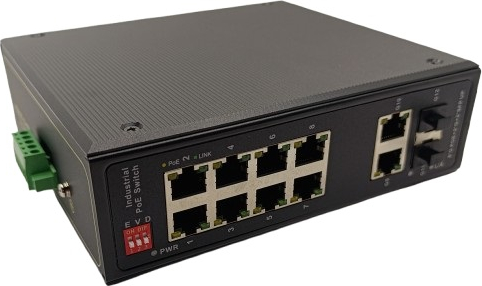

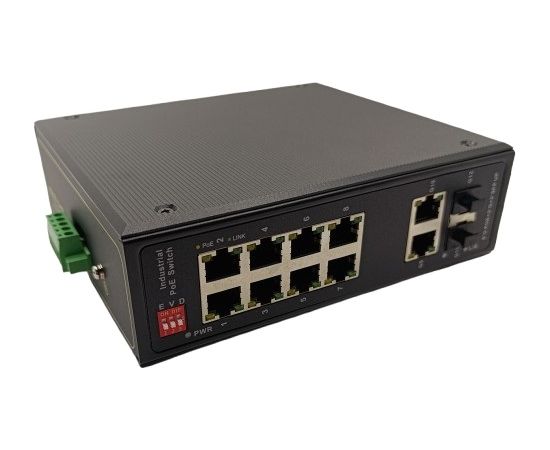

Extradigital PoE Switch 10 Ports 1000M with 2 SFP Ports 1000M

KODS: POE804PRO

Preces ID:1865173

127⁸⁰ ^€

Piegādātāja noliktavā: 5 prece(s)

+ −

Pasūtot, birojā pēc 2-3 darba dienām

Piegāde

Apmaksas veidi

Mūsu priekšrocības

24 mēnešu garantija

SMS / E-pasta paziņojumi

Preču atgriešana 14 dienu laikā

Dažādi maksājuma veidiPay orders in convenient ways: cash to the courier, by bank transfer on the receipt of the bank or by credit card right at the time of the order.

Godīga cenaLepojamies, ka arī juridiskām personām esošā cena ir bez kādiem papildus maksājumiem!

RažotājsEXTRADIGITAL

Preces apraksts
Specifikācija
Uzdot jautājumu
Energoefektivitātes lapa

Unmanaged Industrial PoE Switch 10 Ports 1000M with 2 SFP Ports 1000M.

Features:
8x 10/100/1000M PoE ports, 2x 10/100/1000M RJ45uplink ports, 2x 1000M SFP ports Industrial PoE Switch, port 1-8 support IEEE 802.3af/at.
PoE ports support AF/AT intelligent recognition. Standard power is 15.4W/port, Maximum power: 30W/port.
Only support 1,2(+)/3,6(-).
Input voltage: DC12-40V, Redundant dual power 5-bit industrial terminals; Output Voltage: 48V.
IP protection level: IP40; Rail-type installation.

Specification:
Interface: 8x10/100/1000Base-TX PoE ports (Data/Power), 2x 1000M RJ45 ports (Data), 2x 1000Base-X uplink SFP fiber slot ports (Data); 2 set of V+, V- redundant DC power interface (5Pin Phoenix terminal).
Network Protocol:
IEEE802.3 10BASE-T.
IEEE802.3i 10Base-T.
IEEE802.3u 100Base-TX.
IEEE802.3ab 1000Base-T.
IEEE802.3z 1000Base-X.
IEEE802.3x.
PoE Standard: IEEE802.3af/at.
Ethernet Port Feature: Port 1-8 support 10/100/1000Base-TX, Port 9-10 support 10/100/1000Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption.
SFP Port: Gigabit SFP optical fiber interface, default matching optical modules, need to buy separately, (optional order mode / multi-mode, single fiber / double fiber optical module).
MAC: 8K.
Buffer Memory: 4M.
Twisted Pair Transmission:
10BASE-T: Cat3,4,5 UTP ( 100BASE-TX: Cat5 or later UTP ( 1000BASE-T: Cat5e or later UTP ( Optical Fiber Cable: Multi-mode: 850nm 0~500M; single mode: 1310nm 0~40KM,1550nm 0-120KM.
Power Supply Pin: Default:1/2 (+), 3/6 (-) optional: 4/5(+),7/8(-).
Working Voltage: Input voltage: DC12-40V, Redundant dual power 5-bit industrial terminals; Output Voltage: 48V; 5 Pin industrial Phoenix terminal, support anti-reverse protection.
Max Power Per Port: 30W; IEEE802.3af/at.
Power Consumption: Standby: < 6W.
LED Indicator: Power: PWR (green), Network: Link, Link/Act (yellow), PoE: PoE (green).
Power Supply: No, optional 48V/120W or 48V/240W industrial power supply.
Operation Temperature / Humidity: -40~+75°C; 5%~90% RH Non condensing.
Dimension (LxWxH): 165x145x52mm.
Weight: < 1.3kg.
Installation: Desktop, DIN rail.
Lightning protection: 6KV 8/20us.
Protection level: IP40.
Mechanical Properties: IEC60068-2-6 (anti vibration), IEC60068-2-27 (anti shock); IEC60068-2-32 (free fall).
Certification: CCC; CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS.

Warranty: 24 months.
