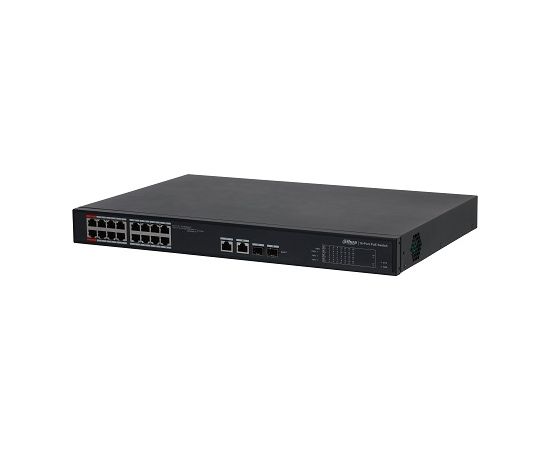

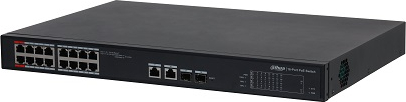

Dahua PoE switch 100Mbps 16+2G uplink S4101-16ET2GF-240-C

4101-16ET240
Preces ID:1894106
22360 €
Piegādātāja noliktavā: 8 prece(s)
+ −
Pievienot vēlmju sarakstam
Pasūtot, birojā pēc 2-3 darba dienām
Piegāde
Apmaksas veidi
Mūsu priekšrocības

24 mēnešu garantija

SMS / E-pasta paziņojumi

Preču atgriešana 14 dienu laikā

Dažādi maksājuma veidiPay orders in convenient ways: cash to the courier, by bank transfer on the receipt of the bank or by credit card right at the time of the order.

Godīga cenaLepojamies, ka arī juridiskām personām esošā cena ir bez kādiem papildus maksājumiem!

Hardware

Included Power Adapter

Yes

PoE

Yes

Ethernet Port

16

Ethernet Port Speed

10/100 Mbps

Optical Port Uplink Speed

1 Gbps

Description of Function Slots

Port 1–16: 16 × RJ–45 10/100 Mbps

Port 17-18: 2 × 10M/100M/1000M Base-T (uplink)(combo)

Port 17-18: 2 × 1000M SFP (uplink)(combo)

Power Supply

100–240 VAC, 50/60 Hz, 2 A

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

5%–95% (RH), non-condensing

Storage Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Storage Humidity

5%–95% (RH), non-condensing

Power Consumption

Idling: ?5 W
Full: 240 W

Performance

Smart Managed Switch

Yes

MTBF

371,069 h

Switching Capacity

7.2 Gbps

Packet Forwarding Rate

5.36 Mpps

Packet Buffer Size

4 Mbit

MAC Table Size

16K

PoE

PoE Protocol

IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt

PoE Power

Port 1–2 ?90 W;
Port 3–16 ?30 W;
Total ?240 W

PoE Power Consumption Management

Yes

PoE Pin Assignment

1, 2, 4, 5 (V+), 3, 6, 7, 8(V–)

Long Distance PoE Transmission

Yes

General

Statics Protection

Air discharge: 8 kV
Contact discharge: 6 kV

Lighting Protection

Common mode: 4 kV
Differential mode: 2 kV

Net Weight

3.20 kg (7.05 lb)

Gross Weight

4.30 kg (9.48 lb)

Product Dimensions

440 mm × 300 mm × 44 mm
(17.32"" × 11.81"" × 1.73"") (L × W × H)

Packaging Dimensions

528 mm × 412 mm × 112 mm
(20.79"" × 16.22"" × 4.41"") (L × W × H)

Certifications

CE; FCC

Transmission Performance:

Switch power supply voltage 53V.

CAT5E/CAT6. Max. DC resistance < 10?/100m

Cable(m)

Load Capacity(W)

Bandwidth(Mbps)

IEEE802.3bt 90W

100

71.3

100

150

62

10

200

51

10

250

40

10

Hi-PoE 60W

100

53

100

150

50

10

200

47

10

250

37

10

IEEE802.3at 30W

100

25.5

100

150

25.5

10

200

25.5

10

250

25.5

10

Note: Data from this table was collected by Dahua test lab and is for reference only. The actual transmission distance may vary due to power consumption of connected devices or the cable type and status.
