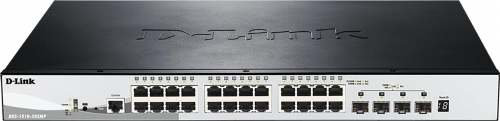

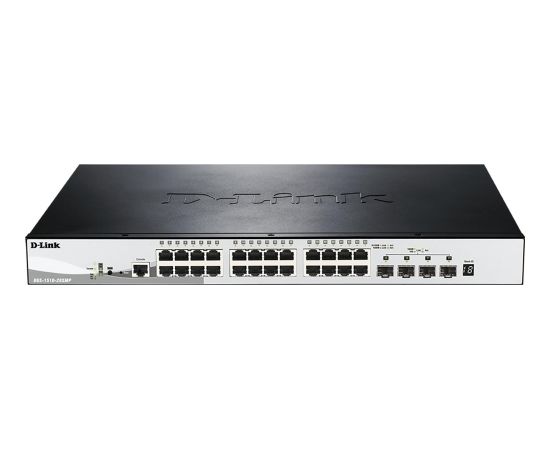

D-LINK 28-Port Smart Managed PoE+

DGS-1510-28XMP
Preces ID:501650
130080
Prece izpārdota
Piegāde
Apmaksas veidi
Mūsu priekšrocības

24 mēnešu garantija

SMS / E-pasta paziņojumi

Preču atgriešana 14 dienu laikā

Dažādi maksājuma veidiPay orders in convenient ways: cash to the courier, by bank transfer on the receipt of the bank or by credit card right at the time of the order.

Godīga cenaLepojamies, ka arī juridiskām personām esošā cena ir bez kādiem papildus maksājumiem!

The D-Link DGS-1510 Series is the latest generation of Smart Managed switches with 10G capability, available with 16, 24, or 48 10/100/1000 Mbps ports plus additional fibre ports for physical stacking or uplinks. The PoE-capable DGS-1510-28P and DGS-1510-28XMP switches provide additional flexibility for businesses looking to power IP phones, wireless access points, or IP cameras using existing network infrastructure. The combination of high bandwidth connections and PoE support make the DGS-1510 Series ideal for Small-Medium Enterprise (SME) and Small-Medium Business (SMB) environments.

10G SFP+ Stacking/Uplink Ports

The last two SFP+ ports of the DGS-1510 Series switches allow users to create a physical stack of up to 6 units in a fault-tolerant ring or linear topology using Direct Attach Cables (DACs) or any compatible SFP+ transceiver1. This creates a total of 288 Gigabit ports, ensuring high bandwidth while staying cost-efficient. Meanwhile, the remaining uplink ports can be used for other functions, such as connecting to a larger network. Users can also easily configure and manage any of the DGS-1510 Series Smart Managed switches in a single stack. With 20 Gbps full-duplex capabilities, the DGS-1510 Series offers 10G connectivity to core networks and servers while still maintaining fast data transfer rates.

Layer 3 Traffic Management

The DGS-1510 Series provides static routing, allowing you to segment your network into workgroups that communicate between VLANs and increase application performance. With these capabilities, you can reduce the load on your core devices, allowing you to create a scalable and efficient network.

Extensive Layer 2 Features

The DGS-1510 Series switches are equipped with a complete line-up of Layer 2 features, including IGMP Snooping, Port Mirroring, Spanning Tree, and Link Layer Discovery Protocol (LLDP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfer. Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection automatically detects and shuts down loops created by a specific port or VLAN. The Cable Diagnostics feature, designed primarily for administrators and customer service representatives, can determine cable quality and can quickly discover sections of cabling that need to be replaced.

Traffic Classification & QoS

The DGS-1510 Series supports Auto Surveillance VLAN (ASV) and Auto Voice VLAN, which are best suited for VoIP and video surveillance deployments. Auto Surveillance VLAN is a new, industry-leading technology built into D-Link Smart switches. This technology consolidates data and surveillance video transmissions through a single DGS-1510 Series Smart Managed switch, saving businesses the costs of maintaining expensive dedicated hardware and infrastructure. ASV also ensures the quality of real-time video for monitoring and control without compromising the transmission of conventional network data by giving ASV traffic priority over other packets.

Keep Your Network Secure

D-Link’s innovative Safeguard Engine protects the DGS-1510 Series against traffic flooding caused by malicious attacks. The DGS-1510 Series supports both MAC and web-based access control. This gives network administrators multiple authentication options, reducing deployment times and removing the need for client software. The DGS-1510 Series supports IEEE 802.1X port-based authentication, allowing network users to be authenticated through external RADIUS servers. The Address Resolution Protocol (ARP) Spoofing Prevention feature helps to prevent attacks that may allow an intruder to intercept users’ traffic while the DHCP Server Screening feature screens rogue DHCP server packets from user ports to prevent unauthorised IP assignment.

IPv6 Ready

The DGS-1510 Series is IPv6 ready and supports various IPv6 functions such as MLD Snooping, IPv6 security features, and IPv6 Quality of Service (QoS), ensuring seamless integration with next generation networks. The DGS-1510 Series also supports IPv4/v6 dual stack functionality, which allows the switches to act as a bridge between IPv4 and IPv6 networks.
1 When stacking in a linear typology, the remaining unused SFP+ ports in the stacking port pair of the top and bottom switches will also be considered occupied by the switch and cannot be used for any other purpose.

Basic switching RJ-45 Ethernet portu daudzums 24
Basic switching RJ-45 Ethernet portu veids Gigabit Ethernet (10/100/1000)
SFP+ moduļa slotu skaits 4
Optiskās šķiedras konektors SFP+
Platums 440 mm
Dziļums 308 mm
Augstums 44 mm
Svars 4,25 kg
Maiņstrāvas ievades spriegums 100 - 240 V
Maiņstrāvas ievades frekvence 50 - 60 Hz
Strāvas patēriņš (maks) 436,3 W
Darbības temperatūras amplitūda (T-T) -5 - 50 °C
Uzglabāšanas temperatūras amplitūda (T-T) -20 - 70 °C
Darbības relatīvā mitruma amplitūda 0 - 95%
Uzglabāšanas relatīvā mitruma amplitūda 0 - 95%
Karstuma izkliedēšana 1487,78 BTU/h
Transportējamās kastes augstums 48,5 cm
Transportējamās kastes platums 38,5 cm
Transportējamās kastes garums 53 cm
Transportēšanas kārbas neto svars 14,3 kg
Daudzums transportējamā kastē 3 pcs
Transportēšanas kārbas bruto svars 22,6 kg
Paletes neto svars (aviotransportam) 561,6 kg
Kastu skaits paletē (aviotransportam) 24
Skaits vienā paletē (aviotransportam) 72 pcs
Paletes garums 110 cm
Paletes platums 120 cm
Paletes svars (aviotransportam) 2,08 m
Paletes bruto svars (jūras transportam) 561,6 kg
Kastu skaits paletē (jūras transportam) 24
Skaits vienā paletē (jūras transportam) 72 pcs
Paletes augstums (jūras transportam) 2,08 m
Tīkla standarts IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3at,IEEE 802.3x
10G atbalsta
Vara Ethernet kabeļu tehnoloģija 10BASE-T,100BASE-TX,1000BASE-T
Kabeļu tipi, kas ir atbalstīti Cat5,Cat5e
Pieslēgvietas atspoguļošana
Pilns duplekss
Plūsmas kontroles atbalsts
Linka sakopošana
Apraides vētras kontrole
Auto MDI/MDI-X
Savienotā koka protokols
Head-of-line (HOL) bloķēšana
Automātiska vienošanās
Atbalsta MAC address auto-learning
Atbalsta VLAN
Virtuālā LAN īpašības Tagged VLAN,Protocol-based VLAN
VLAN skaits 4094
Adrešu tabulas izmērs 16384 ieraksti
Komutācijas ietilpība 128 Gbit/s
Caurlaide 95,24 miljons pakešu sekundē
Uzglabāt un pārsūtīt
Rindu skaits 8
Jumbo Frames atbalsts
Jumbo rāmji 9216
Pakešu buferatmiņa 1,5 MB
Iepakojuma platums 450 mm
Iepakojuma dziļums 510 mm
Iepakojuma augstums 121 mm
Iepakojuma svars 7,06 kg
DHCP īpašības DHCP server,DHCP client
piekļuves vadības saraksts (ACL)
Piekļuves kontroles saraksta (ACL) noteikumi 768
IGMP iejaukšanās
Drošības algoritma atbalstīts 802.1x RADIUS,EAP,SNMP,SSH,SSH-2,SSL/TLS
SSH/SSL atbalsts
BPDU filtrēšana / aizsardzība
Autentifikācija Autentifikācijas uz MAC bāzes, Autentifikācijas uz pieslēgvietas bāzes
Slēdža tips Vadīts
Slēdža līmenis L2/L3
Quality of Service (QoS) atbalsts
Trafika klasifikācija
Sistēmas notikumu žurnāls
Sakraujams
Produkta krāsa Melns, Pelēks
LED indikatori Aktivitāte, Link, PoE, Jauda, Ātrums
Ventilatoru skaits 2 ventilators/ ventilatori
Drošība cUL, CB
Sertifikācija CE, FCC, C-Tick, VCCI, BSMI, CCC
Power over Ethernet (PoE)
Power over Ethernet (PoE) pieslēgvietu skaits 24
Power over Ethernet (PoE) jauda uz pieslēgvietu 30 W
Kopējais Power over Ethernet (PoE) budžets 370 W
Fiziska kraušana vienam uz otru (vienības) 6
Virtuāla kraušana (vienības) 32
Trokšņu līmenis 56,9 dB
Multiraides atbalsts
