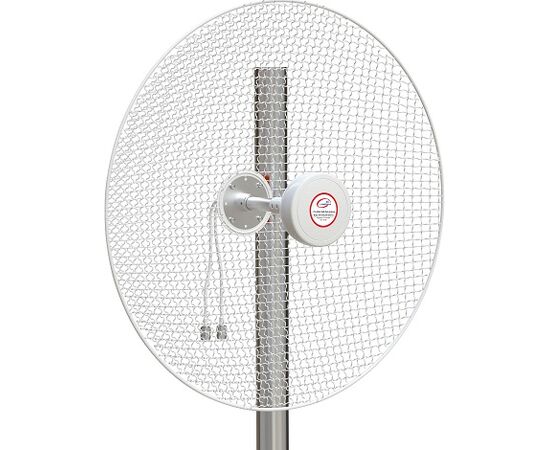

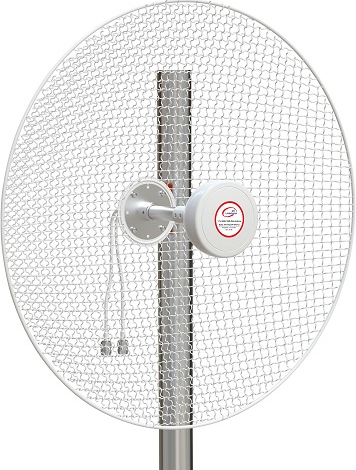

Hismart 5G / LTE / CBRS 2x2 MIMO Dish Antenna, 1.7-4.2GHz, 20dBi+22dBi

TV993505
Preces ID:1922959
18100 €
Piegādātāja noliktavā: 5 prece(s)
+ −
Pievienot vēlmju sarakstam
Pasūtot, birojā pēc 2-3 darba dienām
Piegāde
Apmaksas veidi
Mūsu priekšrocības

24 mēnešu garantija

SMS / E-pasta paziņojumi

Preču atgriešana 14 dienu laikā

Dažādi maksājuma veidiPay orders in convenient ways: cash to the courier, by bank transfer on the receipt of the bank or by credit card right at the time of the order.

Godīga cenaLepojamies, ka arī juridiskām personām esošā cena ir bez kādiem papildus maksājumiem!

LTE/5G/CBRS 2x2 MIMO antenna, 1710-2690MHz / 3300-4200MHz, 21-25dBi


Features:
Dual-polarized directional dish-design MIMO antenna for LTE, 5G, CBRS and Wi-Fi applications, 1710-2690 MHz / 3300-4200 MHz, 20 dBi / 22 dBi.
It operates in two frequency ranges and supports 2×2 MIMO technology, allowing it to transmit and receive two independent signals simultaneously.
Designed for long-distance connections and suitable for areas with weak signal coverage.
Lightning protection: DC grounding.


Technical specification:
Frequency range: 1710-2690MHz / 3300-4200MHz.
Gain: 1x 20±1dBi for 1.7-2.7 GHz, 1x 22±1dBi for 3.3-4.2 GHz.
VSWR: <2.
Impedance: 50 ohms.
Max. power per port: 50W.
Isolation: > 20dB.
Beam width at 1710-2690 MHz: horizontal 15°±5°, vertical 15 ±5°.
Beam width at 3300-4200 MHz: horizontal 12°±5°, vertical 12 ±5°.
Connector: 2x N Female.
Antenna diameter: 600 mm.
Mounting: on a pole: diameter 30-50 mm.
Polarization: dual slant +/-45°.
Application: LTE, 5G, CBRS, cellular networks, DAS (Distributed Antenna Systems), 2.4GHz Wi-Fi IEEE802.11b/g/n.
Operating temperature: -40°C~ +70°C.
Color: white.
Weight: 2kg.


Warranty: 24 months.


Ražotājs:
HISMART
