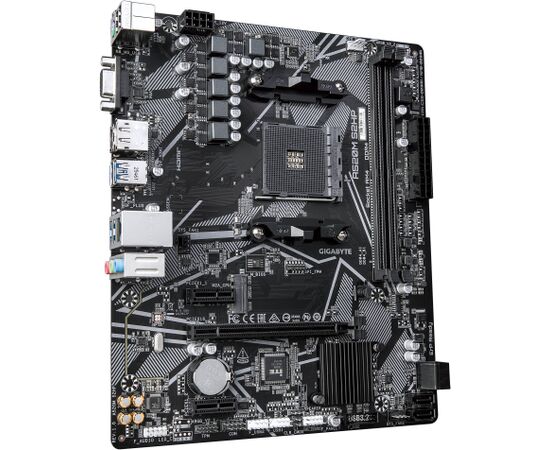

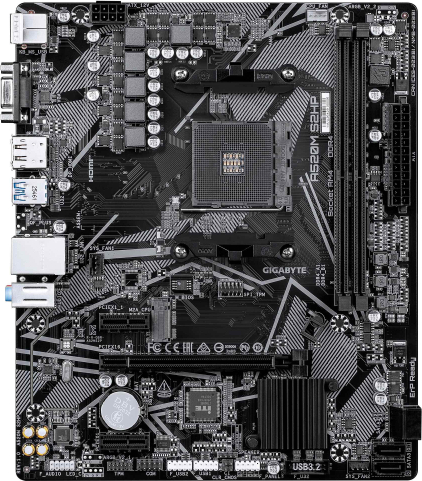

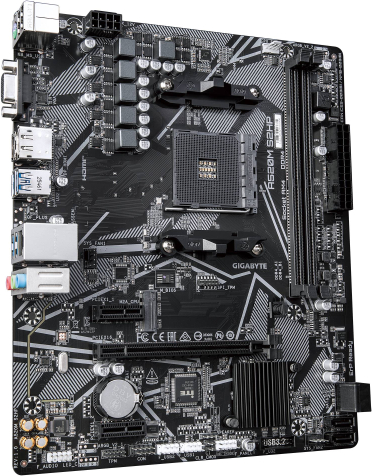

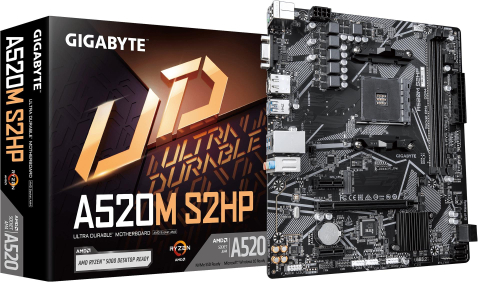

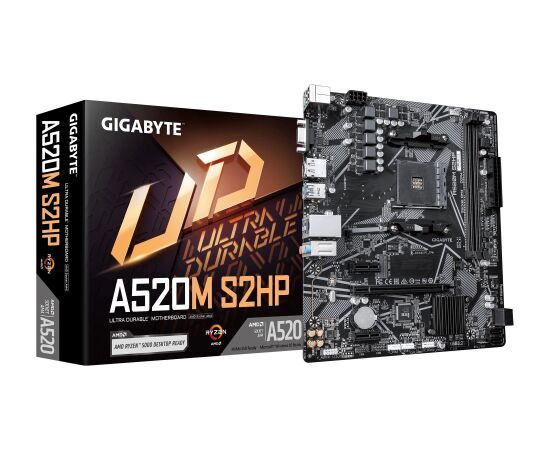

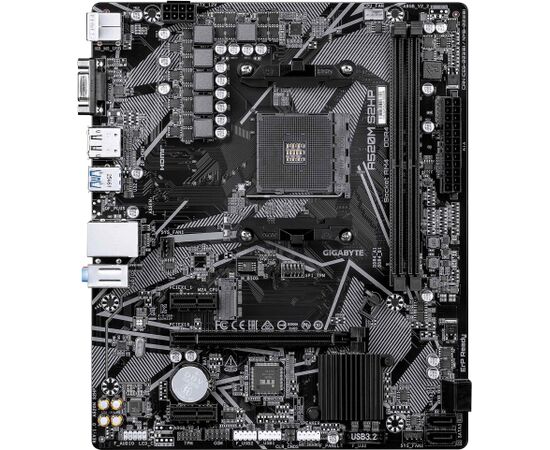

Mainboard GIGABYTE AMD A520 Socket AM4 micro ATX RAM DDR4-SDRAM 2xSlots 1xNumber of M.2 (M) slots A520MS2HP1.0

A520M S2HP 1.0
Preces ID:1978722
6690 €
Piegādātāja noliktavā: 30 prece(s)
+ −
Pievienot vēlmju sarakstam
Pasūtot, birojā pēc 1-2 darba dienām
Piegāde
Apmaksas veidi
Mūsu priekšrocības

24 mēnešu garantija

SMS / E-pasta paziņojumi

Preču atgriešana 14 dienu laikā

Dažādi maksājuma veidiPay orders in convenient ways: cash to the courier, by bank transfer on the receipt of the bank or by credit card right at the time of the order.

Godīga cenaLepojamies, ka arī juridiskām personām esošā cena ir bez kādiem papildus maksājumiem!

GIGABYTE A520M S2HP Motherboard. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, SATA, RAID levels: 0, 1, 10. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD

Manufacturer Website:
https://www.gigabyte.com/

Category Code MBA
CnCode 84733020
Unit Box Height 0.055
Unit Box Length 0.27
Unit Box Width 0.23
Motherboard chipset AMD A520
Product colour Black
Component for PC
Motherboard form factor micro ATX
Audio output channels 7.1 channels
Motherboard chipset family AMD
Processor manufacturer AMD
Processor socket Socket AM4
Compatible processor series AMD Ryzen 3000 Series
Maximum number of SMP processors 1
Supported processor sockets Socket AM4
Supported memory types DDR4-SDRAM
Number of memory slots 2
Memory slots type DIMM
Memory channels Dual-channel
ECC сompatibility ECC & Non-ECC
Supported memory clock speeds 2133/2400/2667/2933/3200/3333/3600/4866 MHz
Supported memory clock speed (max) 3200 MHz
Maximum internal memory 64 GB
Supported storage drive interfaces M.2,PCI Express 3.0,SATA
RAID support Jā
RAID levels 0/1/10
On-board graphics card Nē
HDCP Jā
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Number of SATA III connectors 4
ATX Power connector (24-pin) Jā
Power fan connector Jā
CPU fan connector Jā
Number of chassis fan connectors 2
RGB LED pin header Jā
Number of RGB LED pin headers 4

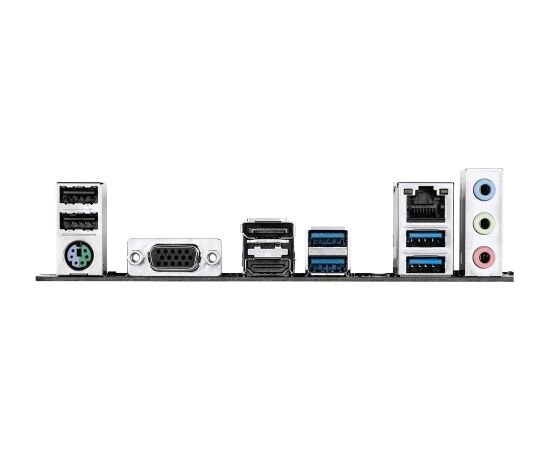

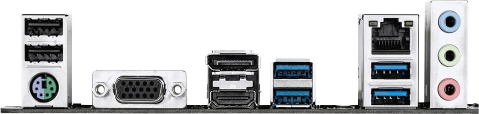

USB 2.0 ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
Ethernet LAN (RJ-45) ports 1
PS/2 ports quantity 1
HDMI ports quantity 1
Ethernet LAN Jā
Ethernet interface type Gigabit Ethernet
Wi-Fi Nē
PCI Express x1 (Gen 3.x) slots 2
PCI Express x16 (Gen 3.x) slots 1
Number of M.2 (M) slots 1
BIOS type UEFI AMI
BIOS memory size 128 Mbit
ACPI version 5.0
Clear CMOS jumper Jā
Clear CMOS button Jā
Desktop Management Interface (DMI) version 2.7
System Management BIOS (SMBIOS) version 2.7
Country of origin China
Products per shipping (inner) case 1 pc(s)
Battery weight 3 g
Lithium weight per battery 0.07 g
Package width 265 mm
Number of battery cells 1
Package depth 235 mm
Package height 52 mm
Battery capacity 220 mAh
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Package weight 772 g
Battery type CR2032
Width 244 mm
Depth 205 mm
Height 35 mm
Batteries included Jā
Warranty period 3 year(s)
Unit Calculated Weight 0.78 kg
Unit Calculated Volume 0.004187 cubm
Units per Shipping Box 10
Shipping Box Weight 7.8 kg
Unit Width 23 cm
Shipping Box Height 26 cm
Unit Depth 27 cm
Shipping Box Depth 56.5 cm
Unit Height 5.5 cm
Shipping Box Width 28.5 cm
Bullet Points
  • Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
  • 4+2 Phases Hybrid Digital VRM Solution with Low RDS(on) MOSFETs
  • Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
  • Fast Networks: GbE LAN
  • HDMI, Display Port, D-sub Ports for Multiple Display
  • Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Anti-Sulfur Resistors Design
Name MB AMD A520 SAM4 MATX/A520M S2HP 1.0 GIGABYTE
