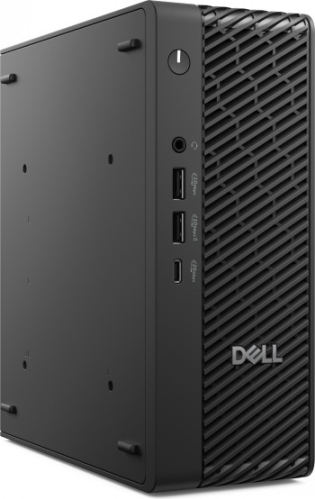

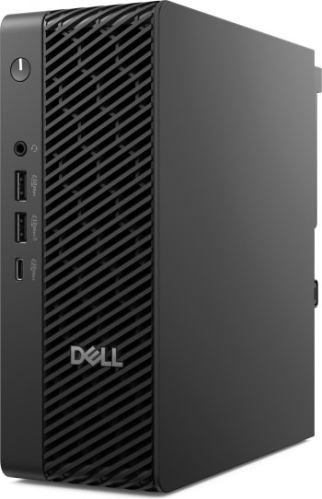

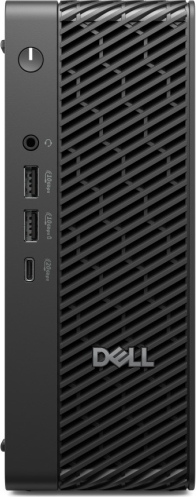

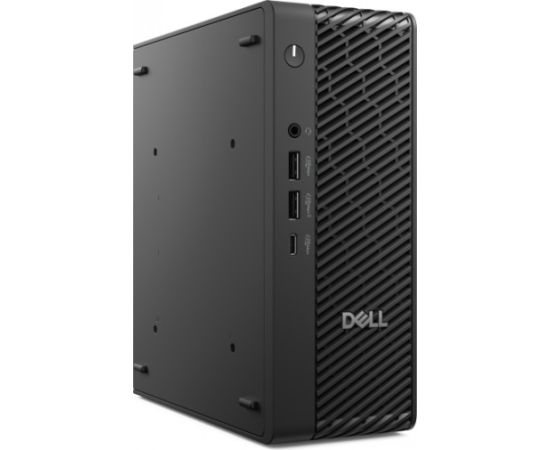

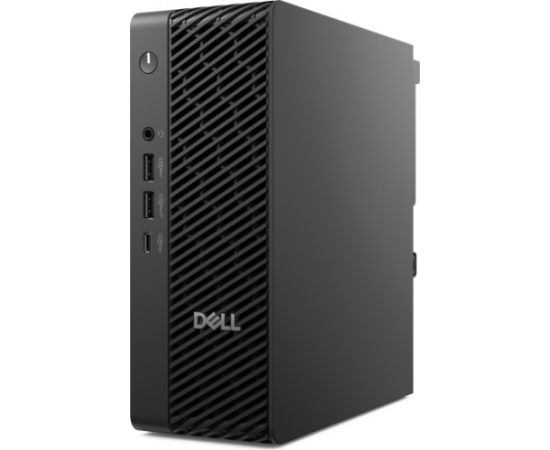

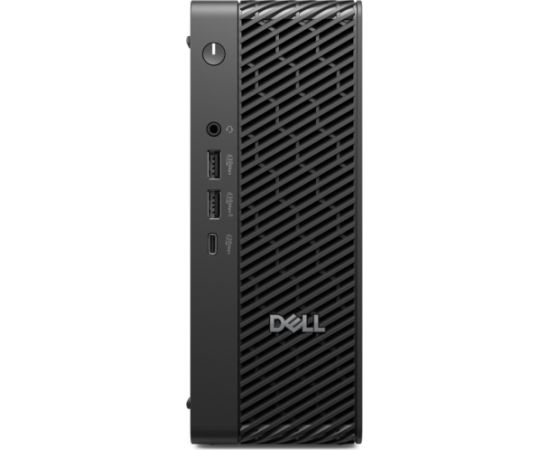

Dell Pro Max Micro is a high-performance, intelligent, and extremely compact workstation that delivers power even to the smallest spaces. It leverages Intel Core Ultra processors, an integrated AI accelerator (NPU), and vPro Enterprise management, making it an excellent choice for demanding professional use and centrally managed IT environments. A new thermal solution enables the 65 W processor to operate at up to 85 W power without compromising performance or cooling.
The compact chassis (only 2.54 kg and less than 180 mm deep) offers excellent connectivity, extensive expandability, and a modular design that can accommodate a powerful graphics card. The device uses recycled materials and is ENERGY STAR and EPEAT Gold certified. A great solution for modern workspaces where performance, security, and scalability are valued.
Key features:
- Processor: Intel Core Ultra 7 265 (20 cores, 30 MB cache, up to 5.3 GHz, 65 W, vPro Enterprise)
- Memory: 16 GB DDR5 SODIMM, 5600 MT/s, non-ECC (1/2 slots used)
- Storage: 512 GB SSD M.2 2280 PCIe Gen4, SED-ready
- Graphics: NVIDIA RTX A400, 4 GB GDDR6, 4x mDP–DP
- Operating system: Windows 11 Pro
- Wireless connectivity: Intel Wi-Fi 7 BE200, 2x2, 802.11be, MU-MIMO, Bluetooth 5.4
- Power supply: 280 W (7.4 mm barrel connector)
- Dimensions (H x W x D): 206 x 79.3 x 178 mm
- Weight: 2.34–2.54 kg

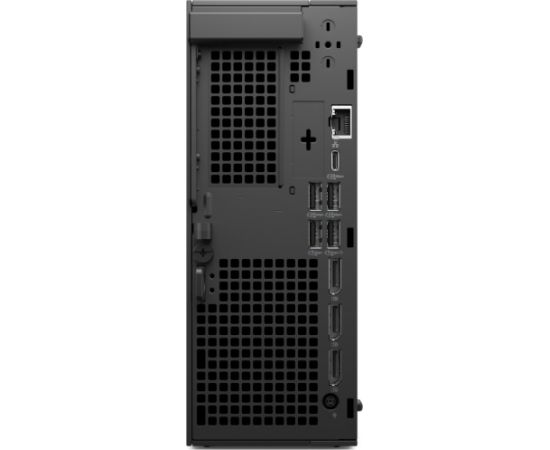

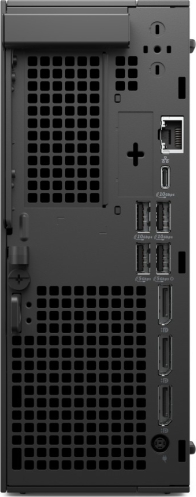

Ports:
- 1x USB-C 3.2 Gen 2x2 (20 Gbps) (front)
- 2x USB-A 3.2 Gen 2 (10 Gbps) (one with PowerShare) (front)
- 1x Headset (audio/mic combo) port (front)
- 1x USB-C 3.2 Gen 2 (10 Gbps) (rear)
- 2x USB-A 3.2 Gen 2 (10 Gbps) (rear)
- 2x USB-A 3.2 Gen 1 (5 Gbps) (one with Smart Power On) (rear)
- 3x DisplayPort 1.4a (HBR3) (rear)
- 1x RJ45 Ethernet (1 Gbps) (rear)
- 1x Power connector (rear)
Expandability:
- 2x DDR5 SODIMM (max 64 GB) (1/2 available)
- 2x PCIe Gen4 x8 (x8 + x1 wired) (1/2 available)
- 1x M.2 2280 Gen4 (occupied)
- 1x M.2 2280 Gen5 (available)
- 1x M.2 2230 (WLAN/BT) (occupied)
Security:
- TPM 2.0, Dell SafeID, SafeBIOS, Intel Secure Boot, Chassis Intrusion switch
- Kensington lock slot, padlock ring
In the box: No keyboard or mouse.
Warranty and service:
3-Year Dell NBD Basic Warranty – on-site part replacement, next business day response.
|
| Operating system provided | Windows 11 Pro | | Internal memory | 16 GB | | Processor family | Intel Core Ultra 7 | | Total storage capacity | 1 TB SSD | | Connections | Audio (3.5mm) | | Connections | DisplayPort | | Connections | Ethernet (RJ-45) | | Connections | USB-A | | Connections | USB-C | | Processor number of cores | 20 | | Wireles LAN (WLAN) | Jā | | Optical drive | Nē | | Memory slots (available) | 1 | | Integrated Memory Card Reader | Nē | | Maximum internal memory, GB | 64 GB | | Motherboard chipset | Intel W880 | | RAID controller | Nē | | Solid State Disk drive type | M.2 PCIe NVMe | | Processor model | Intel Core Ultra 7 256 (Max. 5.30GHz, 30M, 20C) | | Power supply, W | 280 | | Processor manufacturer | Intel | | Internal memory type | DDR5 | | Memory clock speed, MHz | 5600 | | Intel Virtualization technology | VT-x / VT-d | | Bluetooth | Jā | | Memory slots | 2 | | Intel HyperThreading | NO | | Dimensions W x D x H, mm | 79.3 x 178 x 206 | | Weight, g | 2540 | | Ethernet LAN (RJ-45) ports quantity | 1 | | Intel Turbo Boost, GHz | 5.30 | | Intel vPro | Jā | | Intel Smart Cache, MB | 30 | | Dedicated video memory (GB) | 4 | | Graphics adapter family | NVIDIA RTX | | Bluetooth version | 5.4 | | WLAN type | Wi-Fi 7 | | USB-A (USB 3.2) ports quantity | 6 | | DisplayPorts quantity | 3 | | USB-C (USB 3.2) ports quantity | 2 | | Number of performance-cores | 8 | | Number of efficient-cores | 12 | | Trusted Platform Module (TPM) version | 2.0 | | WLAN antennas | 2x2 | | Green certifications | EPEAT Gold | | Green certifications | Energy Star | | Graphic adapter | NVIDIA RTX A4000 4GB |
|
