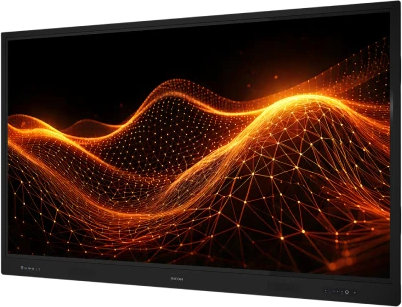

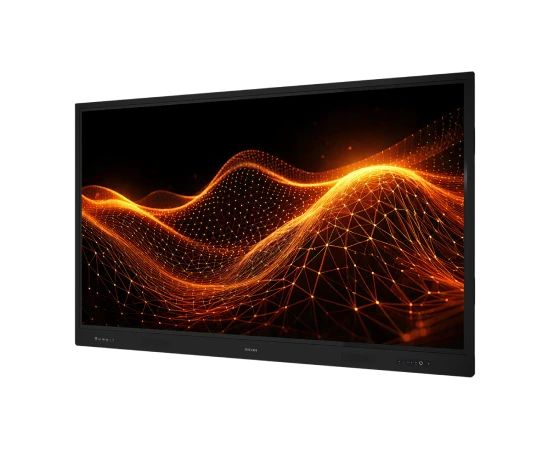

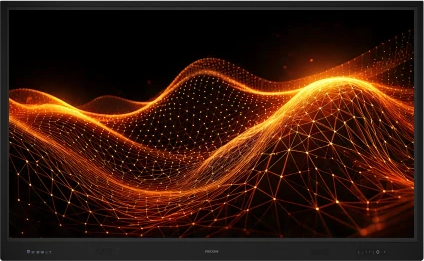

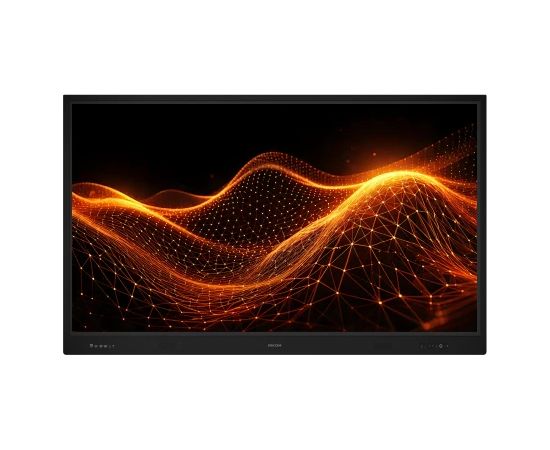

A8610 Interactive Whiteboard
- Panel size (diagonal): 86" wide
- Enjoy crisp graphics with 3840 x 2160 resolution
- Multi-touch point functionality (up to 40 touch points)
- Supports both wired and wireless connections
|
GENERAL
|
|
|

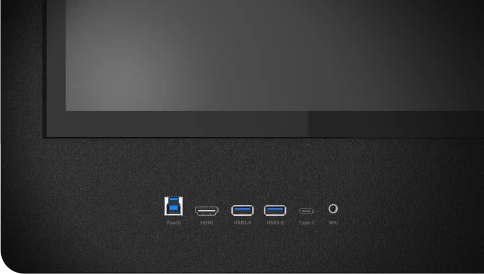

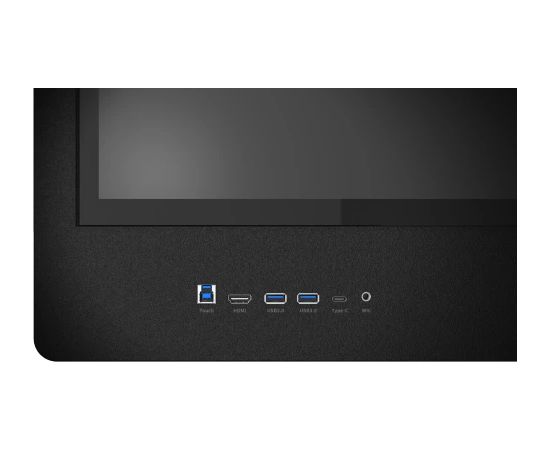

Front Interface
|
HDMI x1, USB C x1, USB A 3.0 x2, USB B 3.0 x1, MIC In x1
|
|
Rear Interface
|
USB A x3, USB C x1, USB B x3, HDMI In x2, DisplayPort x1, OPS Slot x1, RS232 x1, Audio Out x1, Line out or Headphone x1, SPDIF x1, HDMI Out x1, LAN 1000Base-T x2
|
|
Pre-installed app
|
Whiteboard, Picture-In-Picture, Eshare, Browser, Settings, Google Play Store, Google Calender, Files by Google, Search, Chrome, Gmail, Maps, YouTube, Drive, YT Music, Google TV, Meet, Photos
|
|
Dimensions: W x D x H (mm)
|
1,981 x 92 x 1,217
|
|
Package size: W x D x H (mm)
|
2,119 x 225 x 1,320
|
|
Weight (kg)
|
65
|
|
Housing material (face frame/back shell)
|
Aluminium/metal plate
|
|
Housing colour (face frame/back shell)
|
Black/black
|
|
VESA
|
4-M8 screw hole 800 x 400 mm
|
|
DISPLAY PANEL
|
|
|
Panel size: diagonal
|
86" wide
|
|
Effective area: W x H (mm)
|
1,895 x 1,065
|
|
Resolution: maximum (Full HD)
|
3,840 x 2,160
|
|
Colours: maximum
|
1,070,000,000
|
|
Brightness: maximum (cd/m²)
|
400
|
|
Contrast ratio
|
4,000 : 1
|
|
Pixel pitch (mm)
|
0.4935 x 0.4935
|
|
Response: grey to grey (ms)
|
8
|
|
Refreshing frequency
|
60 Hz
|
|
Viewing angle: H/V (°)
|
178/178
|
|
LED lifetime
|
50,000 hours
|
|
TOUCH SYSTEM
|
|
|
Touch technology
|
Infrared Touch Frame/ Zero Bonding
|
|
Accuracy (mm in touchable area)
|
1
|
|
Multi touch
|
Win11/10/8/7/XP, Android
|
|
Single touch
|
Linux, Mac OS X, Chrome
|
|
Protection glass thickness: including AR coating (mm)
|
3.2
|
|
Maximum touch points
|
40
|
|
Coating
|
Anti-glare, Anti-fingerprint
|
|
Hardness
|
8 H
|
|
CONTROLLER/ELECTRICAL
|
|
|
OS
|
Android 13.0 EDLA
|
|
Audio output power
|
15 W x2
|
|
RAM
|
8 GB
|
|
ROM Storage
|
128 GB
|
|
WIFI
|
Wifi5 Module, Wifi6 Module
|
|
Bluetooth
|
BT 5.2
|
|
ACCESSORIES
|

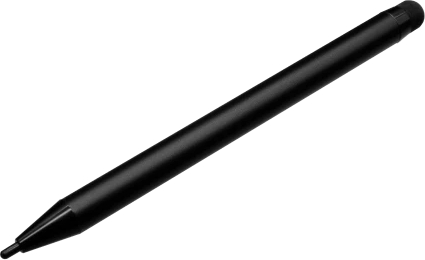

Power cable, Touch pen x2, Read this first sheet, Quick guide sheet, Batteries AAAx2, Remote control, USB type C cable (2m), HDMI 2.0 cable (3m), USB A-B 3.0cable (3m), Plastic clamp (3pcs+3pcs)
|
|
