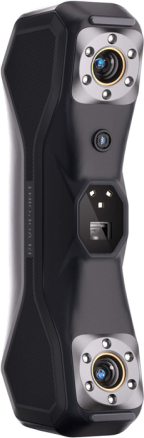

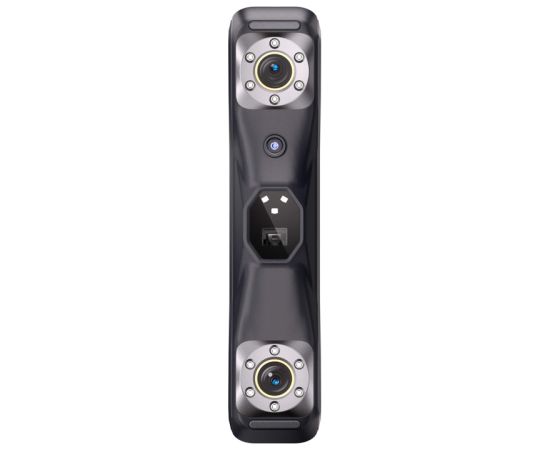

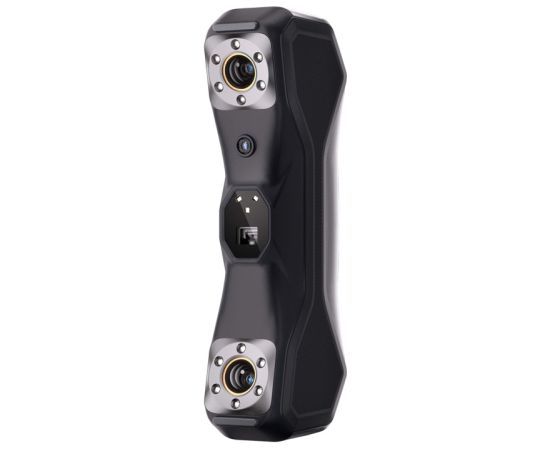

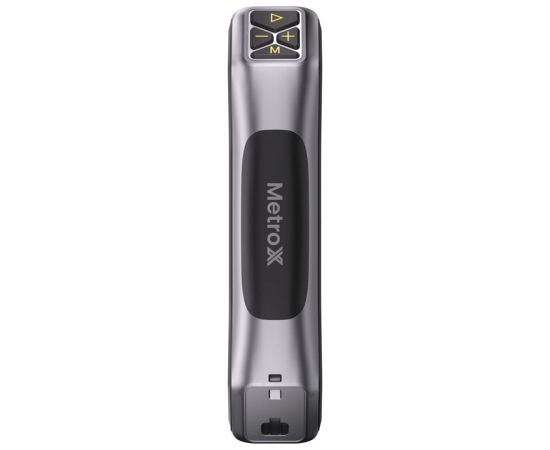

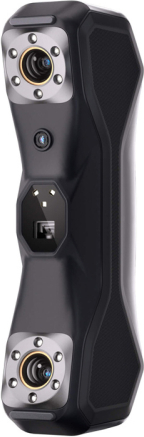

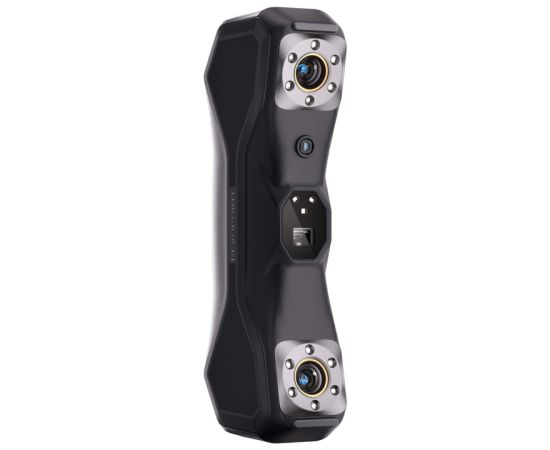

Revopoint MetroX Pro Standard 3D Scanner

Revopoint MetroX Pro Standard 3D Scanner

The Revopoint MetroX Pro is an advanced 3D scanner that combines multi-line laser and structured light technology, offering a precision of up to 0.01 mm and an accuracy of up to 0.02 mm. The device supports 4 scanning modes and achieves speeds of up to 7,000,000 points per second in full-field mode and up to 2,000,000 points per second in laser mode. This allows it to quickly and accurately map objects ranging in size from 10 × 10 × 10 mm to 1 × 1 × 1 m, making it a versatile tool for engineering and design applications.

Advanced technologies and measurement precision

The scanner utilizes a combination of Multi-line Laser Scan and Full-field Structured Light Scan technologies, allowing the operating mode to be adapted to a specific task and surface type. Users have access to 30 blue cross-line lasers, 15 parallel lasers, and 62 structured light lines, resulting in highly detailed mapping. This solution, combined with a precision of 0.01 mm and an accuracy of 0.02 mm, allows for the capture of even the finest details.

High performance and operational flexibility

Thanks to support for GPU-accelerated scanning and a frame rate of up to 60 FPS, the device enables fast data collection without compromising quality. The scanner offers both handheld and stationary modes, allowing you to adapt your workflow to the type of object and scanning conditions. Support for Feature, Marker, and Global Marker tracking methods enhances operational stability and facilitates scanning of various surfaces.

Wide scanning range and ease of use

The device operates at a distance of 200–400 mm, offering a field of view of 43 × 33°. At the closest distance, it captures an area of 160 × 70 mm, and at the maximum distance, 320 × 215 mm, allowing for convenient scanning of both smaller elements and larger technical components. The compact design, measuring 209 × 88 × 44 mm and weighing 508 g, facilitates transport and operation in various environments.

Software and System Compatibility

The scanner works with Revo Metro software and allows image streaming from a computer to mobile devices thanks to the Revo Mirror feature. It is compatible with Windows 10/11 (64-bit) and macOS 11.0 or later. Support for PLY, OBJ, STL, ASC, 3MF, GLTF, and FBX allows for easy further processing of models and preparation for 3D printing.

Stable operation and components

The scanner is equipped with a 2.0 GHz quad-core ARM processor and a built-in depth map processing system, which ensures stable and smooth operation during scanning. This allows the device to efficiently analyze data in real time, reducing delays and streamlining the entire 3D modeling process. The use of 12 blue LEDs further supports the optical system, improving the quality of captured data and helping to map details more accurately.

Included

• scanner
• tripod
• USB-C to USB-C cable
• power adapter
• test scanning model
• markers (6 mm) × 500
• rotating stand
• wrist strap
• carrying case
• calibration plate
• user manual
