Uni-T UT691-01 Visual Fault Locator

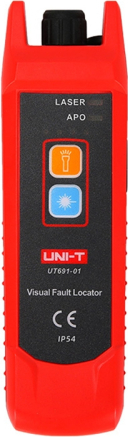

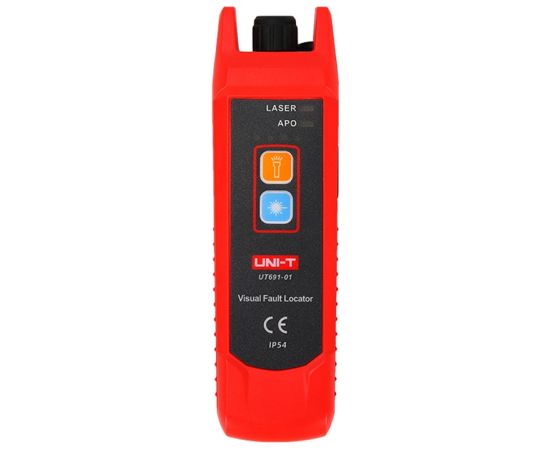

Uni-T UT691-01 Visual Fault LocatorThe Uni-T UT691-01 is a portable visual fault locator designed to detect faults in optical fibers, identify fibers along their entire length, and perform maintenance work on optical installations. The device uses visible red light with a wavelength of 650 ± 10 nm and offers two laser operating modes, facilitating quick diagnostics in the field. Its compact housing, non-slip design, and IP54 protection rating make this model well-suited for daily work in the construction and maintenance of fiber-optic networks.
Effective fault location in shorter sectionsThe UT691-01 model offers a laser output power of at least 1 mW and allows operation on fiber optic sections ranging from 2 to 3 km in length. The device is equipped with a universal 2.5 mm FC connector, which enhances ease of use for standard service applications. Continuous and pulse modes are available, making it easy to adapt the operating mode to specific tasks and measurement conditions.
Convenient operation and readiness for useThe locator uses a 3.7 V 1050 mAh lithium-polymer battery, which provides over 12 hours of operation. The device features a battery level indicator, an automatic shut-off function after 15 minutes, an LED flashlight, and resistance to drops from a height of 1 meter. Weighing 62 g and measuring 130 × 38 × 27 mm, the model remains convenient to carry and use on a daily basis.
Included in the set
Specifications
| ||||||||||||||||||||||||||||||||||||||||||||||||
