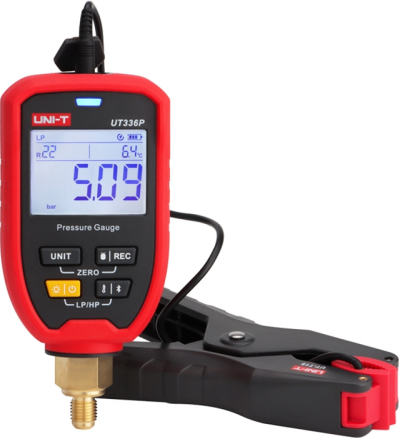

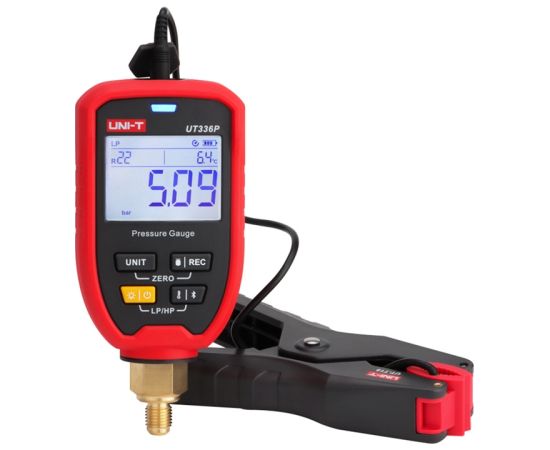

Uni-T UT336P Wireless Pressure Gauge Kit

The Uni-T UT336P Kit is a complete solution for working with refrigeration systems and heat pumps. It combines a wireless pressure gauge with a temperature probe, enabling simultaneous measurement of pressure and temperature and more accurate system diagnostics.

System Parameter Measurement and Analysis

The UT336P Kit offers a wide pressure measurement range in multiple units and temperature measurement from -50°C to 150°C. Connecting to the mobile app via Bluetooth allows for real-time data monitoring and analysis of parameters such as superheat and subcooling.

Features to make your work easier

The device allows you to store up to 8,000 measurements and set a logging interval, which is useful for long-term monitoring. High and low pressure alarms, a backlit screen, and the ability to work offline enhance user convenience.

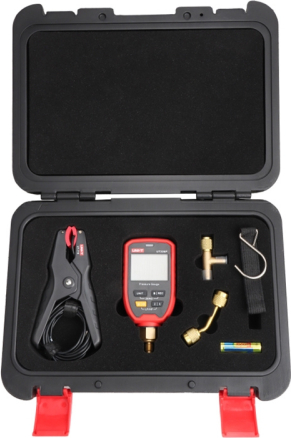

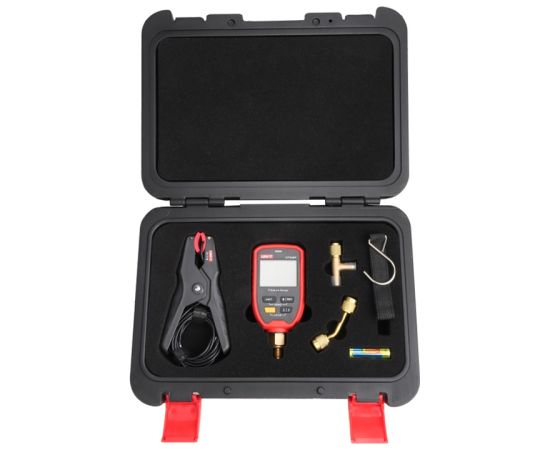

Included in the kit

  • Wireless pressure gauge
  • Temperature probe
  • 3 AA batteries
  • Wrist strap
  • Wrist strap
  • Tool kit
  • 1/4" SAE tee
  • 1/4" SAE elbow
  • User manual
  • Download guide



Specifications

ManufacturerUni-T
ModelUT336P Kit
TypeWireless pressure gauge with temperature probe
Pressure range-1 ~ 60 bar ±0.5% FS
Temperature range-50°C ~ 150°C ±(0.5°C / 1°C)
Pressure unitsbar, kg/cm², cmHg, psi, inHg, kPa, MPa
Temperature units°C / °F
Data log8,000 measurements
Recording interval1 s ~ 1 h
ConnectivityBluetooth
Supported media10 in the device / 90+ in the app
FeaturesData Hold, data logging, high and low pressure alarms, LCD backlight, pressure zeroing, auto power off
Temperature port3.5 mm
Connection1/4" SAE
Protection ratingIP54
Power supply3x AA batteries
Dimensions145 x 68 x 39 mm
Weight250 g
CertificationsCE, RoHS
