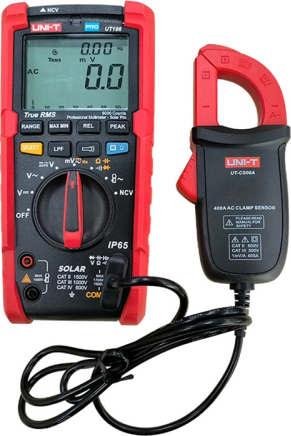

Uni-T UT-CS06A Flex Clamp Sensor

The UT-CS06A is a compact Flex Clamp current sensor designed to measure AC current up to 400 A. The device works with multimeters and data loggers, expanding their measurement capabilities without the need to interrupt the circuit. Thanks to its 28 mm diameter clamp design, it enables quick and convenient measurements in electrical installations, and the 1 mV/A output allows for easy interpretation of results by compatible measuring devices.

Included

UT-CS06A Clamp Sensor
Measuring cable
User manual

Specifications

Manufacturer	Uni-T
Model	UT-CS06A
Type	Flex AC Clamp Sensor
Current Range	1–400 A AC
Accuracy	±2.5% ±0.5 A (50–60 Hz) / ±2.8% ±0.5 A (60–400 Hz)
Frequency range	50–400 Hz
Jaw diameter	28 mm
Output ratio	1 mV/A
Cable length	1.1 m
True RMS	Depends on the multimeter
Response time	Depends on the multimeter used
Measurement accuracy	Depends on the multimeter used
Waveform display	Can be adapted to an oscilloscope
Power supply	No batteries required
Safety class	CAT III 300V / CAT II 600V
Drop resistance	1 m
Dimensions	158 × 65 × 33 mm
Certifications	CE, UKCA
