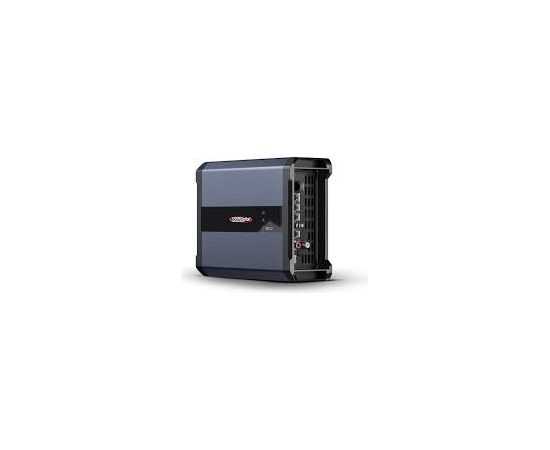

SounDigital 1200.1-1 EVO5 1 ohm

KODS: SD1200.1-1 EVO5

Preces ID:1860792

249¹⁰ ^€

Piegādātāja noliktavā: 6 prece(s)

+ −

Piegāde

Apmaksas veidi

Mūsu priekšrocības

24 mēnešu garantija

SMS / E-pasta paziņojumi

Preču atgriešana 14 dienu laikā

Dažādi maksājuma veidiPay orders in convenient ways: cash to the courier, by bank transfer on the receipt of the bank or by credit card right at the time of the order.

Godīga cenaLepojamies, ka arī juridiskām personām esošā cena ir bez kādiem papildus maksājumiem!

RažotājsSOUNDIGITAL

Preces apraksts
Specifikācija
Uzdot jautājumu
Energoefektivitātes lapa

The 1200.1 EVO 5 is a compact, modern amplifier that delivers 1200W RMS of power over 1 channel. The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects

Power @ 4Ω: 1 X 522 WRMS
Power @ 2Ω: 1 X 792 WRMS
Power @ 1Ω: 1 X 1200 WRMS

Frequency Response (-3dB):

5Hz ~ 25kHz

Subsonic Filter:

5Hz ~ 80Hz

Low Pass Filter:

50Hz ~ 1kHz

Bass Boost:

0dB ~ 12dB @ 50Hz

Operating Voltage:

9V ~ 16V

Signal-Noise Ratio:

95dB

Input Sensitivity:

0.2V ~ 2V

Current Draw (Music):

1Ω: 54A
2Ω: 52A

Current Draw (Max):

1Ω: 108A
2Ω: 105A

Total Efficiency:

1Ω: 88%
2Ω: 91%

Damping Factor:

2000

Power Cable:

16mm² (5 AWG)

Audio Output Cable:

1Ω: 2 x 4 mm² (6 AWG)
2Ω: 2 x 2,5 mm² (13 AWG)

Recommended Fuse (Music):

70A

Recommended Battery:

70Ah

Width:

13.6 cm / 5.4 in

Length:

18 cm / 7.1 in

Height:

5.48 cm / 2.1 in

Weight:

1.12 Kg.
