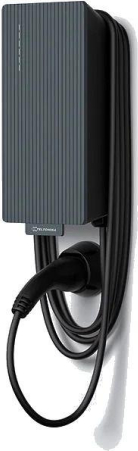

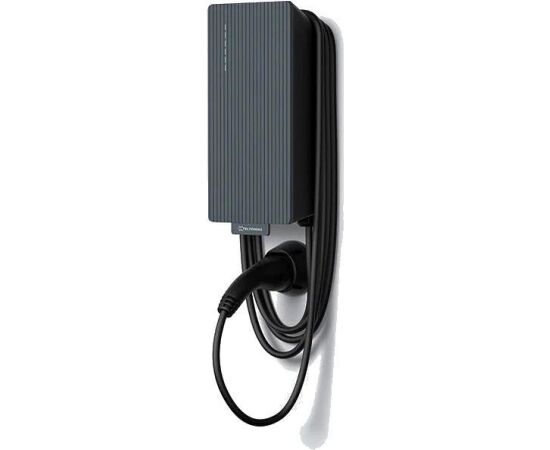

EV CHARGER 22KW EVC2 3PH/EVC2002120S0 TELTONIKA

EVC2002120S0
Preces ID:1977107
68310 €
Piegādātāja noliktavā: 3 prece(s)
+ −
Pievienot vēlmju sarakstam
Pasūtot, birojā pēc 1-2 darba dienām
Piegāde
Apmaksas veidi
Mūsu priekšrocības

24 mēnešu garantija

SMS / E-pasta paziņojumi

Preču atgriešana 14 dienu laikā

Dažādi maksājuma veidiPay orders in convenient ways: cash to the courier, by bank transfer on the receipt of the bank or by credit card right at the time of the order.

Godīga cenaLepojamies, ka arī juridiskām personām esošā cena ir bez kādiem papildus maksājumiem!

22kW (32A / 3-phase) 5 m cable.


Main features
DIMENSIONS  Width 190mm, Height 401mm, Depth 125mm
OUTPUT OPTIONS Type 2 cable 5m
FRONT PLATE OPTIONS Not included
CONTROL TYPES  Android app – Bluetooth and Local Wifi, iOS app – Bluetooth
OCPP 1.6 – Ethernet, wifi, 4G
POWER OPTIONS 22kw three phase
Detailed specifications
CERTIFICATIONS
CE, RCM & UKCA compliant
Codes and standards: 2014/35/EU, 2014/53/EU, IEC 61851-1, IEC 61851-21-2, IEC 62955
Environment - 2011/65/EU, REACH, RoHS, EUR1
CHARGER CONNECTIVITY
WiFi 2.4 Ghz b/g/n connection
Bluetooth low energy 5.0
NFC card reader ISO 14443A
Ethernet (RJ45)
4G/LTE (CAT 1)
INPUT CABLING
Cable entry  diameter — Up to 25mm
Wiring cable cross section in connectors — Up to 10mm2
Cable entry from option from bottom
Cable entry from option from back
PROTECTION
Input and output voltage and current monitoring
Overvoltage category — OVC III
Protection against electric shock
Residual current detection 6 mA DC (IEC 62955)
Ground fault detection
Degree of dust and water protection — IP56
Impact resistance — IK10
Fire class — UL94
RATED FREQUENCY 50/60 Hz
NETWORK/GROUNDING TYPES TN and TT
VOLTAGE  Three phase: 400 V (±10%)
OPERATING SPECIFICATIONS
Humidity to 95% RH non condensing
Operating temperature: -30ºC - +50ºC
Storage temperature: -40ºC - +60ºC
TEMPERATURE SENSORS In all main components
LED INDICATOR LIGHTS Showing charging sequence and warnings/errors
BUILT IN ENERGY METERING Accuracy deviation <1%
LOAD BALANCING
Static load balancing
Dynamic load balancing
Automatic phase balancing
Multi-device load balance
Multi-level load balance
Solar energy modes
Zero potential contact
Multi sensor support





Manufacturer Website:
https://www.teltonika-energy.com/products/evc2

Category Code EVC
CnCode 85444290
Unit Box Height 0.26
Unit Box Length 0.545
Unit Box Width 0.395
Unit Calculated Weight 7.2 kg
Product Net Weight 4 kg
Units per Shipping Box 1
Unit Width 39.5 cm
Unit Depth 54.5 cm
Unit Height 26 cm
Unit Calculated Volume 0.05597 cubm
Shipping Box Weight 7.2 kg
Shipping Box Height 26 cm
Shipping Box Depth 54.5 cm
Shipping Box Width 39.5 cm
Name EV CHARGER 22KW EVC2 3PH/EVC2002120S0 TELTONIKA
Ražotājs:
TELTONIKA
