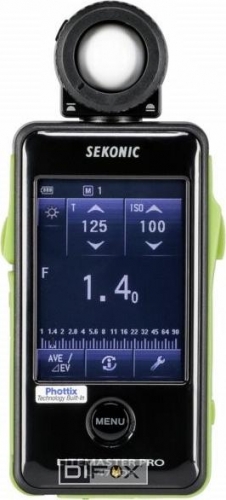

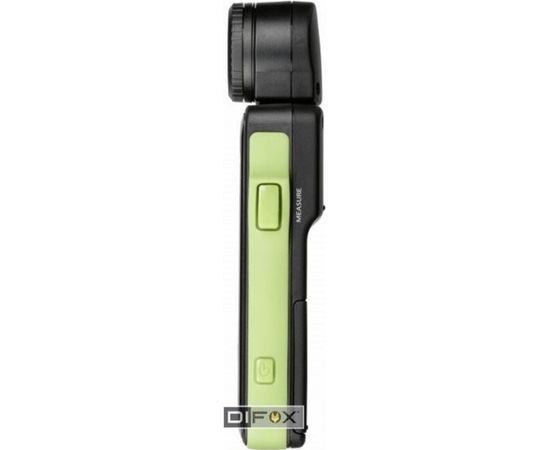

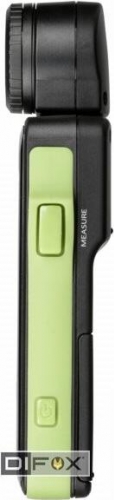

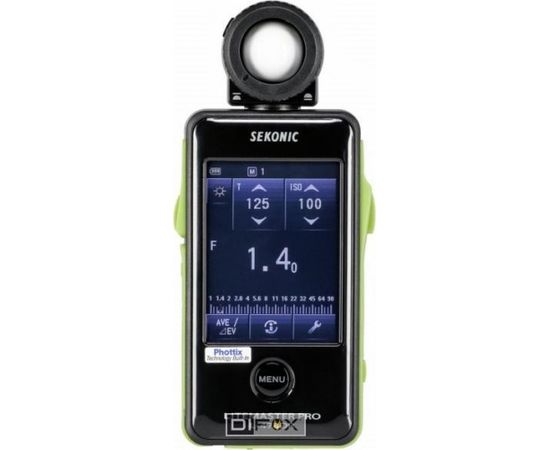

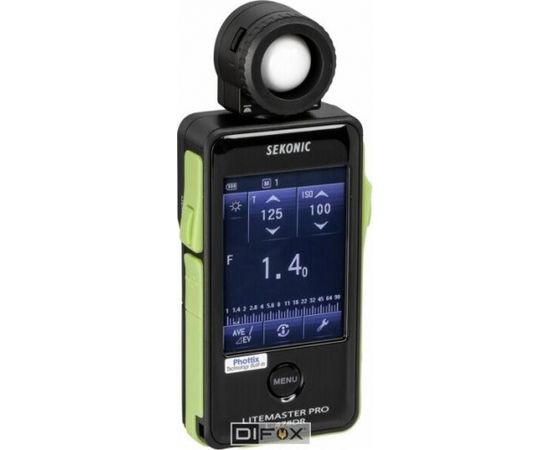

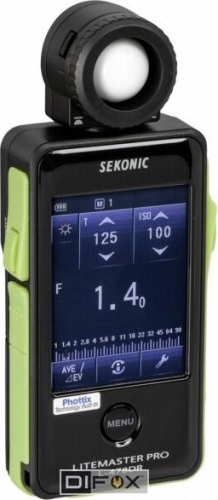

Sekonic L-478DR-PX Litemaster Pro Phottix
US Catalog Info
401-476
International Catalog
JR61 (CE and Canada, designated L-478DR-PX, English language display)
Sensor
SPD
Measuring System
Exposure MeterIncident light: Swivel head, retractable lumisphere, Reflected light: Removable, with Optional 5 deg. VF
Measuring Modes Ambient Light
T priority, F priority, TF priority, HD_CINE (T priority), CINE (f/s priority), Lux/FC, Cd/m2/FL
Measuring Modes Flash
Cordless, Cord-in (PC), Radio triggering (Built-in, Phottix), Multiple cumulative flash
Measuring Range (ISO 100) Ambient Incident Light
-2 to 22.9 EV
0.63 to 2,000,000 lx
0.1 to 180,000 fc
Measuring Range (ISO 100) Ambient Reflected Light
3 to 22.9EV
1.0 to 980,000 cd/m2
0.29 to 290,000 fl
Measuring Range Flash Incident Light
F1.0 to F161.2(=128.9),
Measuring Range Flash Reflected Light
F2.8 to F161.2(=128.9),
ISO Range
ISO 3 to ISO 409,600 + ISO 850
Aperture Range (Ambient Light)
F0.5 to 161.2(=128.9) in 1, 1/2, 1/3 step (Analog Scale: F1.0 to F90 in 1/3 step)
Aperture Range (Flash Light)
F0.5 to 161.2(=128.9) in 1, 1/2, 1/3 step (Analog Scale: F1.0 to F90 in 1/3 step)
Shutter Speeds Range (Ambient Light)
30m to 1/64,000s in 1, 1/2, 1/3 step (Analog scale: 4s to 1/2,000s in 1/3 step)
Shutter Speeds Range (Flash Light)
30m to 1/1,000s in 1, 1/2, 1/3 step
Frame Rate Range (Ambient Light)
1 to 1,000 f/s plus other 20 settings (customized from 0.001 to 9,999.999)
Shutter Angles Range (Ambient Light)
1 to 358 deg. plus other 20 settings (customized from 0.001 to 360)
EV Range (Ambient Light)
EV-27.9 to EV55.8
Exposure Profile
Yes
Memory
Yes (9 times)
Contrast/Comparison Function
Yes (+/-9.9EV in 1/10 step)
Radio System
Transmitter built-in - Phottix Strato II protocol (2.4GHz)
Flash vs Ambient Analyzing
Yes (in 10% step)
Filter Compensation
Yes (-12 to 12EV, preset 30 type)
Exposure Compensation
Yes (-9.9 to +9.9)
Calibration Compensation
Yes (-1.0 to +1.0)
Custom Settings
Yes (13 custom settings)
Storage Temperature
-20 to 60 deg. C
Power source
1.5V x 2 (AAA battery)
LCD
2.7" color dot matrix touch panel LCD
LCD Backlight
Yes
Weight (lbs.)
0.31
Weight (KG)
0.14
Product Depth Inches
5.50
Product Width Inches
2.20
Product Height Inches
1.00
Product Depth Centimeters
14.00
Product Width Centimeters
5.70
Product Height Centimeters
2.60
Product Metric Weight Grams
140.00
Start up guide
Soft Case
Strap
Anti-glare film
Safety Precaution
1-year warranty
Extendable at no charge to 3 years total (in the USA only) after registration, and is backed by our outstanding customer support team.
