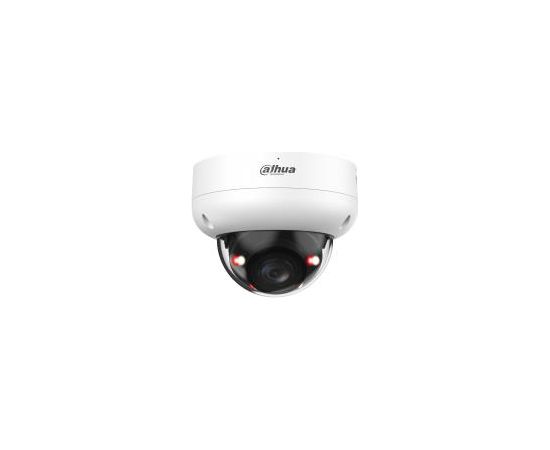

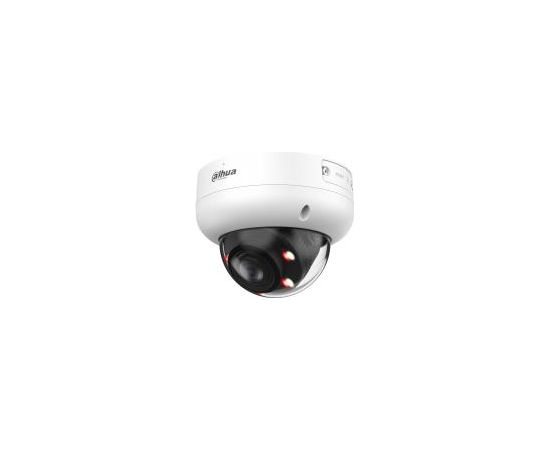

8MP Smart Dual Light Vari-focal Dome WizSense Network Camera
- 8-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
- Outputs max. 8 MP (3840 × 2160)@25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in multi-core light, the max. IR distance is 50 m and the max. warm light distance is 50 m.
- ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
- Abnormality detection: Motion detection,video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- Supports max. 512 G Micro SD card; built-in Mic.
- 12 VDC/PoE power supply.
- IP67, IK10 protection.
- SMD 4.0.
- Supports AI SSA.
- SMD area can be set in warm light areas that support triggering alarms.
Manufacturer Website:
https://www.dahuasecurity.com/
|
| Summary | Dahua Technology WizSense DH-IPC-HDBW3849R-ZAS-IL-27135. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.007 lx, Angle of rotation: 355°, Vertical field of view (thermal module): 58°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"), Number of effective pixels (H x V): 3840 x 2160 pixels. Signal-to-Noise Ratio (SNR) (panoramic camera): 56 dB | | Category Code | FNC | | CnCode | 85258900 | | Unit Box Height | 0.14 | | Unit Box Length | 0.14 | | Unit Box Width | 0.15 | | Form factor | Dome | | Housing material | Metal | | IK code | IK10 | | International Protection (IP) code | IP67 | | Mounting type | Ceiling | | Product colour | White | | Built-in light | Jā | | Certification | CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU | | Connectivity technology | Wired | | Day/night mode | Jā | | Dynamic range | 120 dB | | Placement supported | Indoor & outdoor | | Type | IP security camera | | Wide Dynamic Range (WDR) | Jā | | Adjustment shutter speed | Auto/Manual | | Angle of rotation | 355 ° | | Camera shutter speed | 1/3 s-1/100,000 s | | Lens viewing angle, diagonal | 138 - 36 ° | | Lens viewing angle, horizontal | 114 - 32 ° | | Lens viewing angle, vertical | 58 - 17 ° | | Minimum illumination | 0.007 lx | | Number of Privacy masking areas | 8 | | Pan range | 0 - 360 ° | | Tilt angle range | 0 - 80 ° | | Vertical field of view (thermal module) | 58 ° | | White balance | Auto/Custom modes/Lamp/Manual/Natural/Outdoor | | Number of effective pixels (H x V) | 3840 x 2160 pixels | | Number of sensors | 1 | | Optical sensor size | 1/2.7 " | | Progressive scan | Jā | | Sensor type | CMOS | | Signal-to-Noise Ratio (SNR) (panoramic camera) | 56 dB | | Auto focus | Jā | | Closest focusing distance | 1.5 m | | Detect distance (tele) | 257.4 m | | Detect distance (wide) | 89.9 m | | Fixed focus | Jā | | Focal length range | 2.7 - 13.5 mm | | Focus | Motorized/Manual | | Identify distance (tele) | 25.7 m | | Identify distance (wide) | 19 m | | Maximum aperture number | 1 | | Number of lenses | 1 | | Observe distance (tele) | 103 m | | Observe distance (wide) | 36 m | | Recognize distance (tele) | 51.5 m | | Recognize distance (wide) | 18 m | | LED type | IR/White | | Night vision | Jā | | Night vision distance | 50 m | | Number of illumination LEDs | 2 | | Back Light Compensation (BLC) | Jā | | Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) | | Frame rate | 30 fps | | Gain control type | Auto/Manual | | Highlight Compensation (HLC) | Jā | | Maximum resolution | 3840 x 2160 pixels | | Noise reduction | Jā | | Noise reduction technology | 3D noise reduction | | Region of Interest (ROI) encoding | Jā | | Smart IR | Jā | | Supported graphics resolutions | 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2304 x 1296/2592 x 1944/2688 x 1520/3072 x 1728/3072 x 2048/352 x 240/352 x 288/3840 x 2160/640 x 480 (VGA)/704 x 480/704 x 576 | | Total megapixels | 8 MP | | Video compression formats | H.264/H.265 | | Video streaming | Jā | | Audio formats supported | G.711/G.723/G.726/PCM | | Audio input channels | 1.0 channels | | Audio output channels | 1.0 channels | | Bit rate range | 3 - 8192 Kbit/s | | Built-in microphone | Jā | | Signal-to-Noise Ratio (SNR) | 56 dB | | Bluetooth | Nē | | Ethernet interface type | Fast Ethernet | | Ethernet LAN | Jā | | Networking standards | IEEE 802.1x/IEEE 802.3af | | Number of users | 20 user(s) | | Supported network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P | | User access level | User | | Wi-Fi | Nē | | Card reader integrated | Jā | | Compatible memory cards | MicroSD (TransFlash) | | Maximum memory card size | 512 GB | | RAM capacity | 1024 MB | | ROM capacity | 256 MB | | Ethernet LAN (RJ-45) ports | 1 | | Alarm input channels | 1 | | Alarm output channels | 1 | | Digest authentication | Jā | | Mirror | Jā | | Password protection | Jā | | Video motion detection | Jā | | Firmware upgradeable | Jā | | Management software | Smart PSS; DSS; DMSS | | DC output voltage | 12 | | Power consumption (max) | 9 W | | Power consumption (Power over Ethernet (PoE)) | 3.9 W | | Power source type | DC,PoE | | Operating temperature (T-T) | -30 - 60 °C | | Storage temperature (T-T) | -40 - 60 °C | | Mobile operating systems supported | Android/iOS | | Diameter | 122 mm | | Height | 94 mm | | Weight | 560 g | | Package weight | 740 g | | Number of cameras | 1 | | Model | IPC-HDBW3649R-ZAS-IL | | Units per Shipping Box | 1 | | Unit Calculated Volume | 0.00294 cubm | | Unit Calculated Weight | 0.75 kg |
|
