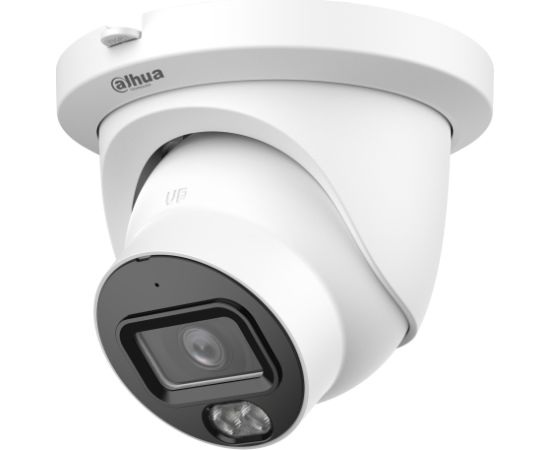

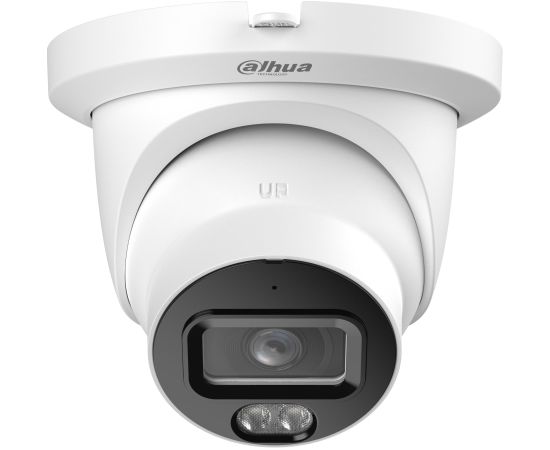

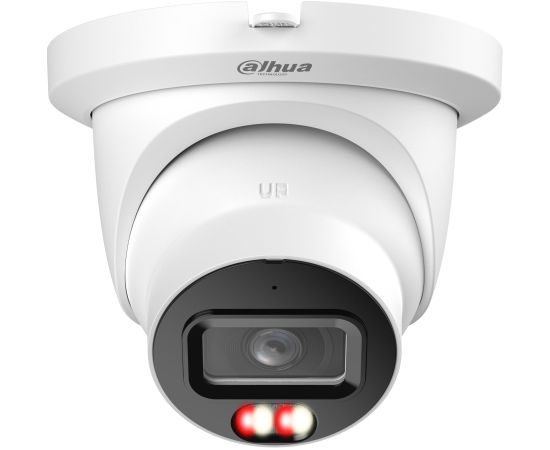

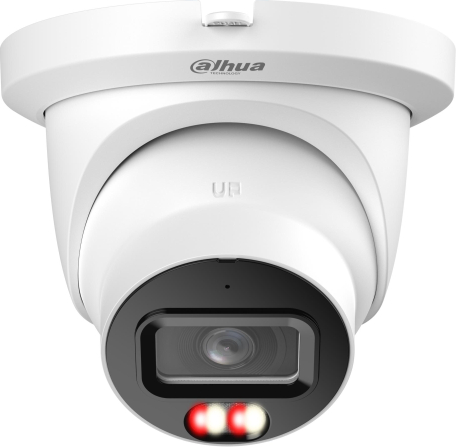

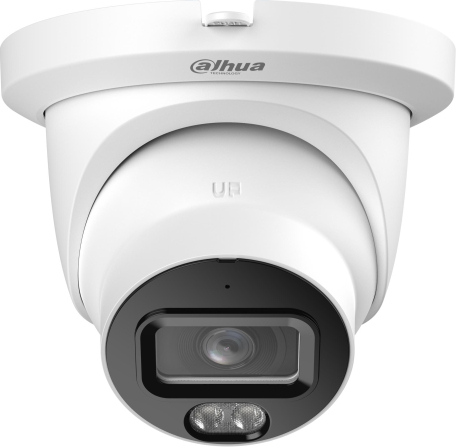

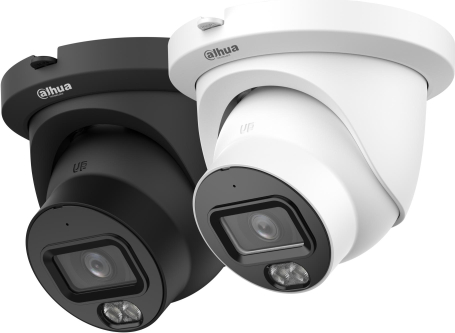

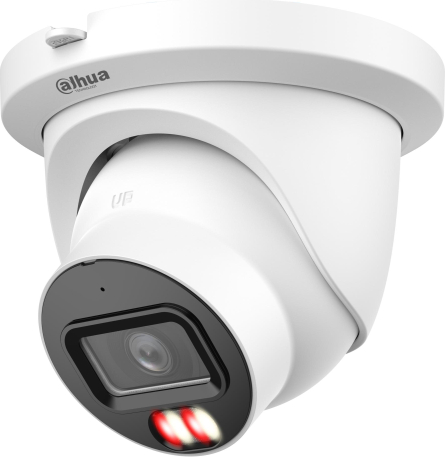

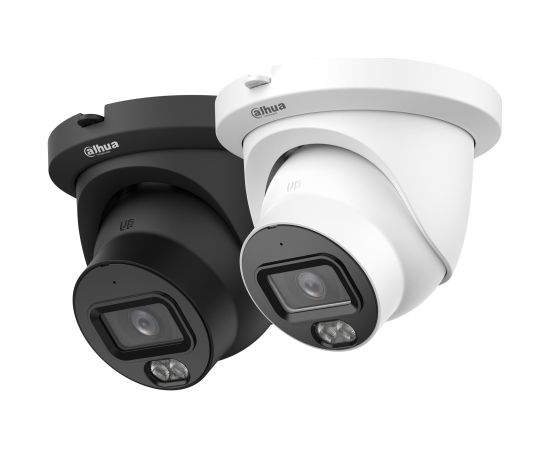

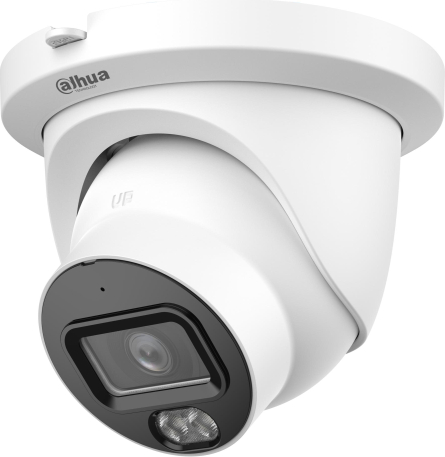

| Summary | Dahua Technology WizMind IPC-HDW5559TM-ASE-IL. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Turret. Minimum illumination: 0.0005 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 108.4°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 124 m, Observe distance: 49.6 m, Recognize distance: 24.8 m |
| Category Code | FNC |
| CnCode | 85258900 |
| Unit Box Height | 0.14 |
| Unit Box Length | 0.14 |
| Unit Box Width | 0.15 |
| Form factor | Turret |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
| Mounting type | Ceiling |
| Product colour | White |
| Alarm input/output | Jā |
| Connectivity technology | Wired |
| Day/night mode | Jā |
| Dynamic range | 56 dB |
| People counting function | Jā |
| Placement supported | Outdoor |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Jā |
| Angle of rotation | 360 ° |
| Camera pan control | Jā |
| Camera shutter speed | 1/3 - 1/100000 s |
| Camera shutter type | Electronic |
| Camera tilt control | Jā |
| Lens viewing angle, diagonal | 127.1 ° |
| Lens viewing angle, horizontal | 108.4 ° |
| Lens viewing angle, vertical | 60 ° |
| Minimum illumination | 0.0005 lx |
| Pan range | 0 - 360 ° |
| Tilt angle range | 0 - 80 ° |
| White balance | Auto/Manual/Natural/Outdoor/Regional custom/Street lamp |
| Optical sensor size | 1/2.7 " |
| Progressive scan | Jā |
| Sensor type | CMOS |
| Closest focusing distance | 3.2 m |
| Detect distance | 124 m |
| Fixed focus | Jā |
| Focal length range | 6 - 2.8 mm |
| Identify distance | 12.4 m |
| Maximum aperture number | 1.6 |
| Observe distance | 49.6 m |
| Recognize distance | 24.8 m |
| LED type | IR/White |
| Night vision | Jā |
| Night vision distance | 50 m |
| Back Light Compensation (BLC) | Jā |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Frame rate | 30 fps |
| Gain control type | Auto/Manual |
| Highlight Compensation (HLC) | Jā |
| Maximum resolution | 2960 x 1668 pixels |
| Noise reduction | Jā |
| Noise reduction technology | 3D noise reduction |
| Privacy masking | Jā |
| Region of Interest (ROI) encoding | Jā |
| Total megapixels | 5 MP |
| Video compression formats | H.264/H.264B/H.264H/H.265/M-JPEG |
| Video streaming | Jā |
| Audio formats supported | G.711 µ-law/G.711 A-law/G.723/G.726/PCM |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Built-in microphone | Jā |
| Bluetooth | Nē |
| Ethernet LAN | Jā |
| Number of users | 20 user(s) |
| Quality of Service (QoS) support | Jā |
| Streaming method | Multicast |
| Supported network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration |
| Wi-Fi | Nē |
| Built-in HDD | Nē |
| Card reader integrated | Jā |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 1000 GB |
| RAM capacity | 2000 MB |
| ROM capacity | 4000 MB |
| Ethernet LAN (RJ-45) ports | 1 |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Digital watermark | Jā |
| HTTPS encryption | Jā |
| Human and vehicle targets classification | Jā |
| Intelligent Video Surveillance (IVS) system features | Face detection/Heat map/Human detection/Intrusion/People counting/Tripwire |
| Mirror | Jā |
| Network access storage (NAS) | Jā |
| Video motion detection | Jā |
| Cloud-managed | Nē |
| DC output voltage | 12 |
| Power consumption (max) | 13.3 W |
| Power consumption (Power over Ethernet (PoE)) | 6.3 W |
| Power consumption (typical) | 4.2 W |
| Power source type | DC,PoE |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Mobile operating systems supported | Android/iOS |
| Diameter | 122 mm |
| Height | 105.5 mm |
| Weight | 530 g |
| Compliance certificates | CE/Electromagnetic Compatibility (EMC) |
| Package type | Box |
| Package weight | 710 g |
| Manual | Jā |
| Number of cameras | 1 |
| Audio input | RCA |
| Audio output | RCA |
| Browser supported | IE: IE 11, Chrome: Chrome 102, Firefox: Firefox 88 |
| Lens mount interface | M12 |
| Number of video streams | 4 |
