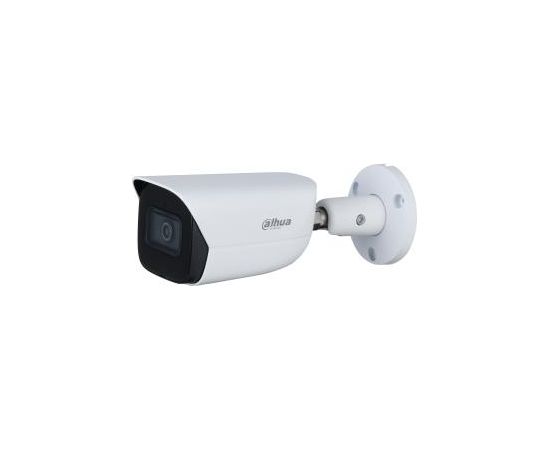

| Summary | Dahua Technology Lite IPC-HFW3441E-AS. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.005 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 103°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"), Number of effective pixels (H x V): 2688 x 1520 pixels. Detect distance: 56 m, Observe distance: 22.4 m, Recognize distance: 11.2 m |
| Category Code | FNC |
| CnCode | 85258900 |
| Unit Box Height | 0.11 |
| Unit Box Length | 0.25 |
| Unit Box Width | 0.14 |
| Form factor | Bullet |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Alarm input/output | Jā |
| Certification | CE-LVD: EN60950-1
CE-EMC: 2014/30/EU
FCC: 47 CFR FCC 15, B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
| Connectivity technology | Wired |
| Day/night mode | Jā |
| Placement supported | Outdoor |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Jā |
| Adjustment shutter speed | Auto/Manual |
| Angle of rotation | 360 ° |
| Camera pan control | Jā |
| Camera shutter speed | 1/3 - 1/100000 s |
| Camera shutter type | Electronic |
| Camera tilt control | Jā |
| Lens viewing angle, diagonal | 122 ° |
| Lens viewing angle, horizontal | 103 ° |
| Lens viewing angle, vertical | 55 ° |
| Minimum illumination | 0.005 lx |
| Pan range | 0 - 360 ° |
| Tilt angle range | 0 - 90 ° |
| White balance | Auto/Manual/Natural/Outdoor |
| Number of effective pixels (H x V) | 2688 x 1520 pixels |
| Number of sensors | 1 |
| Optical sensor size | 1/3 " |
| Progressive scan | Jā |
| Sensor type | CMOS |
| Closest focusing distance | 0.9 m |
| Detect distance | 56 m |
| Fixed focal length | 2.8 mm |
| Identify distance | 5.6 m |
| Maximum aperture number | 1.6 |
| Number of lenses | 1 |
| Observe distance | 22.4 m |
| Recognize distance | 11.2 m |
| LED type | IR |
| Night vision | Jā |
| Night vision distance | 50 m |
| Number of illumination LEDs | 1 |
| Back Light Compensation (BLC) | Jā |
| Bit rate | 3 Kbps-8192 Kbps |
| Bit rate control | Constant Bit Rate (CBR),Variable Bit Rate (VBR) |
| Frame rate | 30 fps |
| Gain control type | Auto/Manual |
| Highlight Compensation (HLC) | Jā |
| Maximum resolution | 2688 x 1520 pixels |
| Noise reduction | Jā |
| Noise reduction technology | 3D noise reduction |
| Privacy masking | Jā |
| Region of Interest (ROI) encoding | Jā |
| Supported graphics resolutions | 1280 x 720 (HD 720)/1280 x 960/2304 x 1296/2688 x 1520/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576 |
| Total megapixels | 4 MP |
| Video compression formats | H.264/H.264+/H.265/H.265+/M-JPEG |
| Video streaming | Jā |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Built-in microphone | Jā |
| Voice codecs | G.711a/G.711Mu/G.723/G.726 |
| Bluetooth | Nē |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Jā |
| Networking standards | IEEE 802.3af |
| Number of users | 20 user(s) |
| Quality of Service (QoS) support | Jā |
| Supported network protocols | IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP; RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP |
| Wi-Fi | Nē |
| Built-in HDD | Nē |
| Card reader integrated | Jā |
| Compatible memory cards | MicroSD (TransFlash) |
| Internal memory | 512 MB |
| Maximum memory card size | 256 GB |
| ROM capacity | 128 MB |
| Ethernet LAN (RJ-45) ports | 1 |
| Intelligent Video Surveillance (IVS) system features | People counting/Tripwire |
| Video motion detection | Jā |
| Behavior analysis | Intrusion detection,Line crossing detection |
| Web browser | Jā |
| Web-based management | Jā |
| DC output voltage | 12 |
| Power consumption (max) | 5.4 W |
| Power source type | DC,PoE |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Mobile operating systems supported | Android/iOS |
| Depth | 66.4 mm |
| Length | 192.7 mm |
| Weight | 590 g |
| Width | 70.5 mm |
| Package weight | 780 g |
| Number of cameras | 1 |
| Model | IPC-HFW3441E-AS-0280B-S2 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.00385 cubm |
| Unit Calculated Weight | 0.77 kg |
