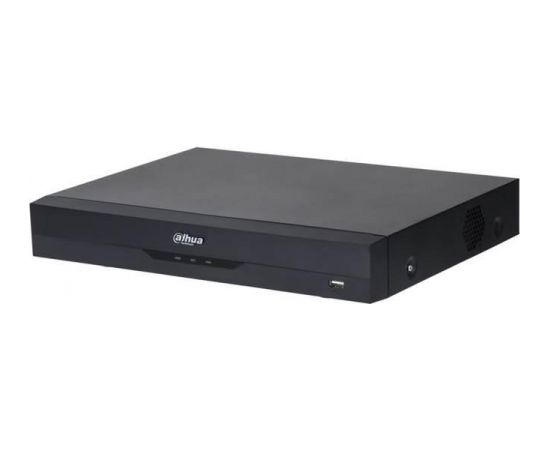

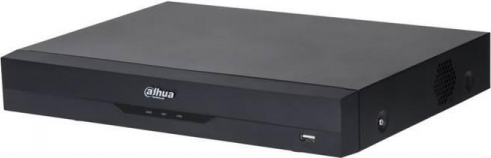

DVR 8CH HDCVI PENTABRID AI/XVR5108HS-4KL-I3 DAHUA
| Pentabrid capability: Each channel supports up to 8MP: IP, HDCVI, AHD, TVI and CVBS access can be configured
8-channel BNC interface
Recording: HDCVI/AHD/HD-TVI recording: 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
All channel 4K(1 fps–7 fps); 6MP(1 fps–10 fps); 5MP(1 fps–12 fps); 4K-N, 4MP/3MP(1 fps–15 fps); 4M-N/1080P/720P/960H/D1/CIF (1 fps–25/30 fps)
IP: 8+8 channels, each channel up to 8MP, Max 128 Mbps incoming bandwidth
AI Coding/H.265+/H.265/H.264+/H.264 video compression
G.711A, G.711U, PCM audio compression,
1x SATA interface up to 16 TB storage
VGA/HDMI up to 4K output
RJ-45, 2x USB ports, RS485
No front panel control, 1/1 Audio I/O, no Alarm I/O, Audio over Coax for 8 channels
Mini 1U case, mouse included
ONVIF 16.12, CGI Conformant, Smart Search
Third-party IP camera support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
AI: Up to 2 channels video stream (analog channel) Perimeter Protection
Up to 8 channels video stream (analog channel) SMD Plus
Up to 2 channels video stream (analog channel) human face recognition
IoT & POS functionalities
Free IP monitoring software available Manufacturer Website: https://www.dahuasecurity.com/ceen/products/All-Products/HDCVI-Recorders/Lite-AI-Series/I3-Series/4K-N/5MP-Series/XVR5108HS-4KL-I3 | ||||||||||||||||||||||||||
|
Ražotājs:
DAHUA
