Pentabrid capability: Each channel supports up to 6MP: IP, HDCVI, AHD, TVI and CVBS access can be configured

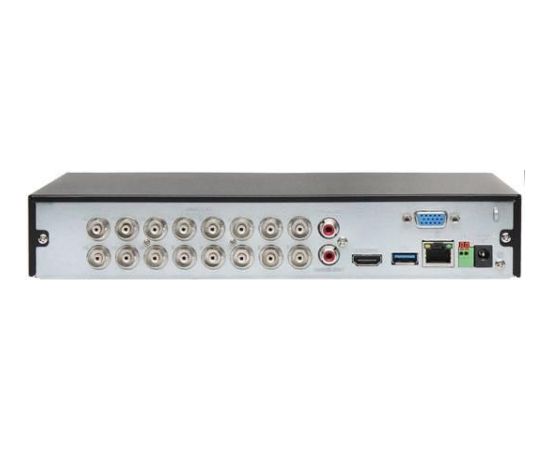

16-channel BNC interface
Recording: HDCVI/AHD/HD-TVI recording:, 5MP, 4MP, 3MP, 2MP
All channel 5M-N (1 fps–10 fps); 4M-N/1080P (1 fps–15fps); 1080N/720P/960H/D1/CIF (1fps–25/30 fps)
IP: 16+8 channels, each channel up to 6MP, Max 128 Mbps incoming bandwidth
AI Coding/H.265+/H.265/H.264+/H.264 video compression
G.711A, G.711U, PCM audio compression,
1x SATA interface up to 16 TB storage
VGA/HDMI up to 4K output
RJ-45, 2x USB ports, RS485
No front panel control, 1/1 Audio I/O, no Alarm I/O, Audio over Coax for 8 channels
Mini 1U case, mouse included
ONVIF 16.12, CGI Conformant, Smart Search
Third-party IP camera support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
AI: Up to 2 channels video stream (analog channel) Perimeter Protection
Up to 16 channels video stream (analog channel) SMD Plus
Up to 2 channels video stream (analog channel) human face recognition
IoT & POS functionalities
Free IP monitoring software available
Manufacturer Website:
https://www.dahuasecurity.com/ceen/products/All-Products/HDCVI-Recorders/Lite-AI-Series/I3-Series/5M-N/1080P-Series/XVR5116HS-I3
|
