In Sink Erator ISE Push Button Kit for Air Switch
In Sink Erator ISE Push Button Kit for Air Switch
Replacement Push Button & Bellows Kit - 64452
Suitable for 45, 55, 65, 75 Models with an Air Switch except Evolution Models
33mm Diameter Cut-out size
45mm Diameter of button

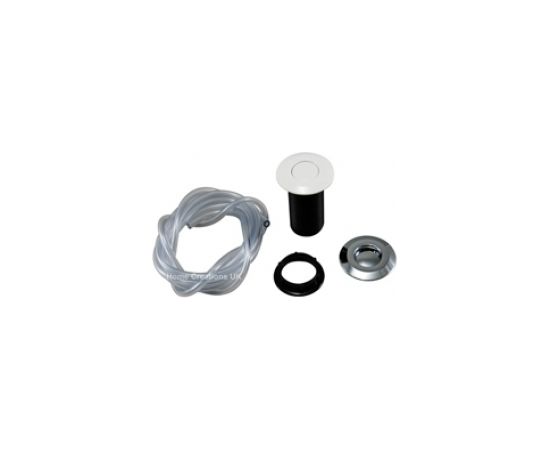

Includes;
- 2 x Interchangeable POLISHED CHROME and WHITE finish buttons.
- 2 metres of PVC air tube
To install the push button bellows;
Push one end of the PVC tubing onto the spout of the push button bellows, feed the other end of the tube through the hole in worktop and through the nut underneath the worktop.
Fit the push button bellows into the hold and then screw up the nut underneath the worktop until it is hand tight. Do not use a spanner to tighten the nut.
Then simply take the other end of the air tube and push it over the spout of the air switch, which is located on the underside of the waste disposer (or into the transformer if using the ISE Air Switch separate unit).
