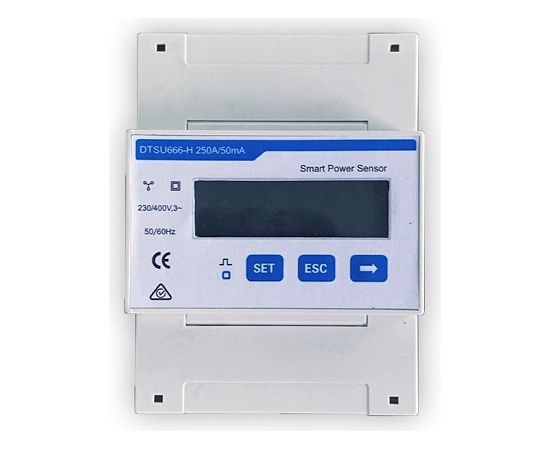

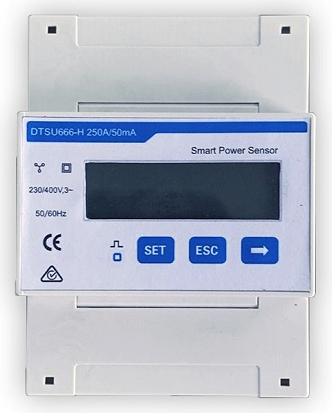

PV Smart Meter HUAWEI DTSU666-H, 250A

KODS: DTSU666-H

Preces ID:1703078

199⁷⁰ ^€

Piegādātāja noliktavā: 1 prece(s)

+ −

Pasūtot, birojā pēc 2-3 darba dienām

Piegāde

Apmaksas veidi

Mūsu priekšrocības

24 mēnešu garantija

SMS / E-pasta paziņojumi

Preču atgriešana 14 dienu laikā

Dažādi maksājuma veidiPay orders in convenient ways: cash to the courier, by bank transfer on the receipt of the bank or by credit card right at the time of the order.

Godīga cenaLepojamies, ka arī juridiskām personām esošā cena ir bez kādiem papildus maksājumiem!

RažotājsHUAWEI

Preces apraksts
Specifikācija
Uzdot jautājumu
Energoefektivitātes lapa

PV smart meter 250A, 3-phase, with RS485, Modbus, 3P4W
Features:
The smart meter is designed for grid export limitation and self-consumption monitoring.
Compatible with Huawei PV inverters.
Class1 measurement reliability.
With LCD display.
Smart Meter is easy to mount on DIN rail 3.5mm.

Specifications:
Nominal voltage: AC 230V~400V.
Power grid type: 3P4W.
L-L voltage range: AC 304V ~ 499V.
L-N voltage range: AC 176V ~ 288V.
Current: 250A/ 50mA.
Frequency: 50/60Hz.
Number of phases: 3.
Accuracy class: class 1 (voltage +/-0.5%, current /power +/-1%, frequency +/-0.01Hz).
Interface: RS485.
Baud rate 9600 bit/s.
Communication protocol: Modbus RTU.
Installation: on DIN rail 35mm.
Dimensions: 102x72x65.5 mm.
Operating temperature: -25°C to 60°C.
Operating humidity: 5-95% non-condensing.
Weight: 840g.
Colour: white.
Certifications: EN 61326-1:2013; IEC 61326-1:2012; EN 61326-2-1:2013; IEC 61326-2-1:2012; EN 61010-1:2010; IEC 61010-1:2010; EN 61010-2-1:2010; IEC 61010-2-1:2010.
Consumption: 1W.
RS485 cable length: 10m.

Warranty: 24 months.

Download Specification DTSU666-H.pdf
