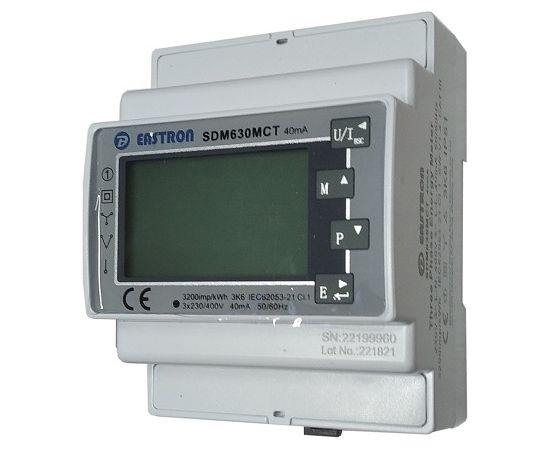

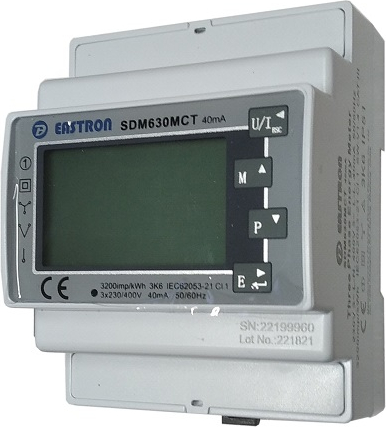

PV Smart Meter GROWATT TPMCTE100A, 100A

KODS: NV820351

Preces ID:1725474

197⁰⁰ ^€

Piegādātāja noliktavā: 3 prece(s)

+ −

Pasūtot, birojā pēc 2-3 darba dienām

Piegāde

Apmaksas veidi

Mūsu priekšrocības

24 mēnešu garantija

SMS / E-pasta paziņojumi

Preču atgriešana 14 dienu laikā

Dažādi maksājuma veidiPay orders in convenient ways: cash to the courier, by bank transfer on the receipt of the bank or by credit card right at the time of the order.

Godīga cenaLepojamies, ka arī juridiskām personām esošā cena ir bez kādiem papildus maksājumiem!

RažotājsGROWATT

Preces apraksts
Specifikācija
Uzdot jautājumu
Energoefektivitātes lapa

PV smart meter 100A, 3-phase, with RS485, Modbus, 3P4W
Features:
The smart meter is designed for grid export limitation and self-consumption monitoring.
Compatible with Growatt PV inverters.
Class1 measurement reliability.
With LCD display.
Smart Meter is easy to mount on Din rail.

Specifications:
Rated voltage: AC 230/400V.
L-L voltage range: AC 173 ~ 480V.
L-N voltage range: AC 100 ~ 289V.
Current: 100A.
Frequency: 50/60Hz.
Number of phases: 3.
Accuracy class: class 1 (voltage/current 0.5%, power 1%, frequency 0.2%).
Interface: RS485.
Baud rate 9600 bit/s.
Communication protocol: Modbus RTU.
Installation: on DIN rail 35mm.
Dimensions: 95.5x72x65 mm.
Safety class: IP51.
Operating temperature: -25°C to 55°C.
Operating humidity: 0-90% non-condensing.
Weight: 280g.
Colour: white.
Certifications: CE.
Consumption: 2W.
RS485 cable length: 15m.

Warranty: 24 months.

Download Quick Guide TPMCTE.pdf
