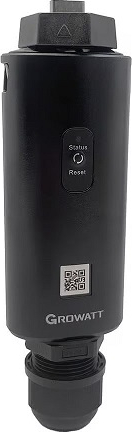

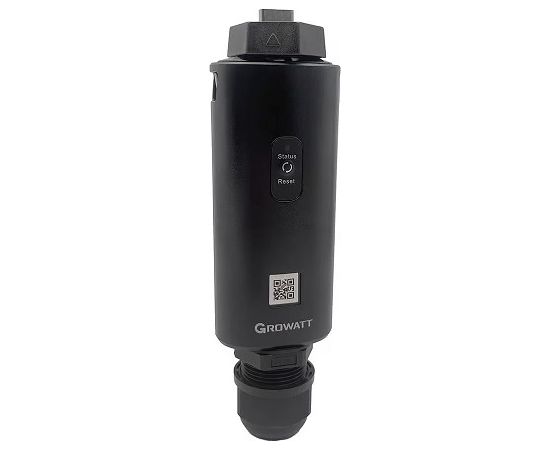

Datalogger GROWATT Shine WiLAN-X2
| Datalogger Growatt ShineWiLan-X2 Features: ShineWiLan-X2 is a professional device designed for monitoring and managing PV systems. This interface is used to link Growatt inverter parameters to the Growatt Cloud server via wireless or wired connection, enabling the monitoring of solar plant performance and generated energy through the ShinePhone app. The device supports Wi-Fi, LAN, and Bluetooth communication modules. A USB stick with a 50-meter wireless range connects your PV system to Wi-Fi. LAN connection is recommended for environments where cable installation is appropriate. Communication with the inverter occurs via the USB port using the Modbus RTU protocol. The device has built-in memory, so the connected inverter’s data is stored for up to 30 days, even if the internet connection is lost. The received data allows real-time monitoring and historical energy production analysis, as well as evaluation of the PV system’s condition and efficiency. The app provides alerts in case of errors or faults and enables remote diagnostics and basic troubleshooting without the need to visit the site. The device supports local configuration and firmware updates via smartphone using Bluetooth (BLE). It is an ideal choice for both residential and commercial solar energy systems. Technical specifications: Support network: Wi-Fi, Bluetooth, LAN. Wireless standards: 802.11 b/g/n; Ble4.2. Wireless frequency: 2.4GHz. Max. Wi-Fi range: 50m. Transmission power: 802.11b: 19.5±2 dBm (@11Mbps). 802.11g: 14±2dBm (@54Mbps). 802.11n: 18±2dBm (@HT20, MCS0). 802.11n: 13±2dBm (@HT20, MCS7). BLE: 0±2dBm(@1Mbps). Receiver sensitivity: CCK, 1 Mbps : -97dBm±2dBm. CCK, 11 Mbps: -88dBm±2dBm. 6 Mbps (1/2 BPSK): -92dBm±2dBm. 54 Mbps (3/4 64-QAM): -75dBm±2dBm. HT20, (MCS0) : -92±2dBm. HT20, (MCS7) : -72±2dBm. HT40, (MCS0) : -89±2dBm. HT40, (MCS7) : -69±2dBm. BLE: -93±2dBm (@1M,30.8%PER). Ethernet data rate: 100Mbps. Max. LAN communication range: 100m (Cat5e). Voltage: 5V. Power consumption: 2.5W, max. 4W. Interface: USB Type-A. Supported server: ShineServer (mqtt.growatt.com). App: ShinePhone. Data transfer interval: 5 min. Operating temperature: -30°C ~ +65°C. Protection class: IP65. Dimensions: 152x47x28 mm. Weight: 94g. Certificates: CE, UKCA, SAA, RoHS. Certifications:CE, RoHS. Warranty: 12 months.  |
Ražotājs:
GROWATT
