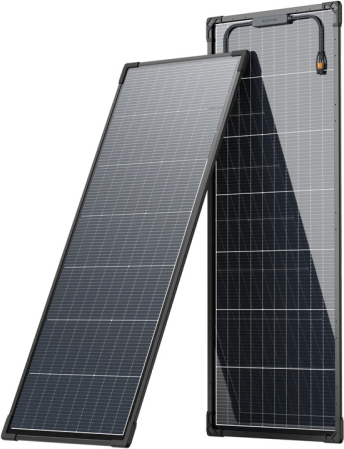

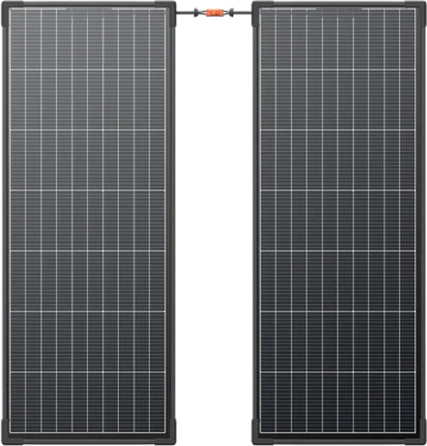

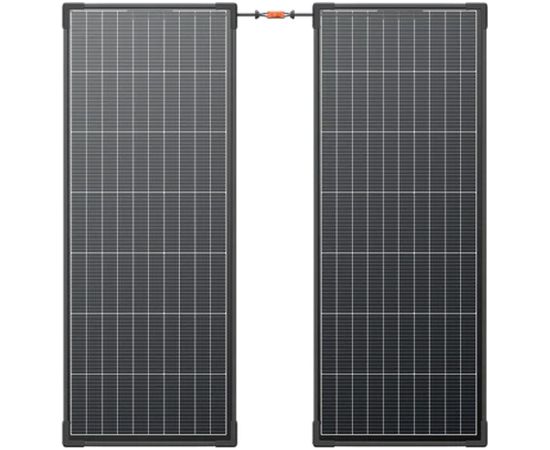

Set of 2x EcoFlow 130W photovoltaic panel (rigid construction)
Set of 2x EcoFlow 130W photovoltaic panel (rigid construction)The EcoFlow set of two rigid photovoltaic panels is a solution designed for motorhomes and mobile power systems. Each offers a nominal output of 130W and works with TOPCon cell technology, achieving conversion efficiencies of up to 25%. The 12mm-thick housing reduces air resistance, and IP68 sealing guarantees dust and water resistance. The modules can be combined in arrangements of up to 10 units, making it easy to tailor the installation to meet energy demands. Compatibility with the EcoFlow ecosystem and standard MC4 and XT60 connectors simplifies integration into existing infrastructure.
Slim design with low dragThe 12mm-thick chassis reduces air resistance by more than 60% compared to conventional solutions. Such optimization translates into lower fuel consumption while driving and more stable operation of the installation on the vehicle roof. The narrow, elongated shape allows efficient use of available space regardless of the type of vehicle - from vans to full-size campers.
Performance independent of the weatherCells made with TOPCon N-Type technology provide higher efficiency in a variety of lighting conditions. The modules generate 3 to 6% more energy than traditional P-PERC cells on cloudy days, and maintain a lower efficiency drop in high temperatures. Better conversion under varying sunlight translates into stable charging of devices regardless of conditions. In addition, the life of the modules reaches 30 years with up to 90% efficiency.
Stable and secure connectionsEcoFlow panels are equipped with LFB-40 ports with simplified design of positive and negative terminals. The solution used minimizes the risk of errors when connecting cables and allows quick installation and removal of the system. The ports are resistant to water, dust and shock, ensuring system reliability even in harsh operating conditions.
Scalability and flexibilityUp to 10 panels can be connected to the installation in parallel, providing a total power output of up to 1,300W. Each panel operates at an open-circuit voltage of 51V and a short-circuit current of 3.2A, promoting efficient power transmission at low amperage. The 43V operating voltage ensures interoperability with high-voltage systems, including EcoFlow portable power stations and compatible external installations. This configuration facilitates system expansion and reduces transmission losses.
Weather resistanceThe front of the panels, made of 2 mm thick tempered glass, provides effective protection against hail and mechanical damage. The whole system meets the IP68 standard, which means resistance to dust and contact with water. Reinforced corners protect the structure from micro-cracks that could affect its service life in the long term.
Compatibility with popular systemsCables terminated with MC4 connectors and XT60 plugs allow integration with popular power stations, including EcoFlow. The system supports plug-and-play technology, so it can be easily incorporated into an existing installation without the need to modify it. The flexible design allows you to freely expand the configuration as your energy needs grow.
Included:
| ||||||||||||||||||||||
