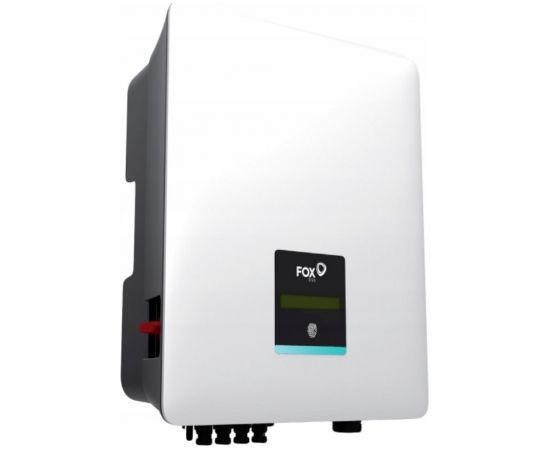

Fox Ess Inwerter FoxESS T5-G3 / 3-fazowy

KODS: T5-G3

Preces ID:905796

849⁷⁰ ^€

Prece izpārdota

Piegāde

Apmaksas veidi

Mūsu priekšrocības

24 mēnešu garantija

SMS / E-pasta paziņojumi

Preču atgriešana 14 dienu laikā

Dažādi maksājuma veidiPay orders in convenient ways: cash to the courier, by bank transfer on the receipt of the bank or by credit card right at the time of the order.

Godīga cenaLepojamies, ka arī juridiskām personām esošā cena ir bez kādiem papildus maksājumiem!

RažotājsFoxEss

Preces apraksts
Specifikācija
Uzdot jautājumu
Energoefektivitātes lapa
Video

Certification	AS4777.2-2015 / VDE-AR-N 4105 /VDE0126-1-1 /G98 / G99 / EN50549-1/ CEI 0-21/ NB/T32004 IEC62116 /IEC61727 /IEC616
Cooling system	Convection
Connectivity	E-stop
Topology	Transformerless
Power current type	DC-to-AC
Protection class	1 / AC: III; DC: ll
Purpose	Solar panel
Efficiency	98.6%
Product colour	White
Installation height (max)	3000 m
Power supply type	Indoor/outdoor
Electromagnetic compatibility	IEC 61000-6-1 /IEC 61000-6-2 /IEC 61000-6-3 /IEC61000-4-2/3/4/5/6/8
Built-in display	LCD
Safety	IEC 62109-1/2
International Protection (IP) code	IP65
Number of phases	3
Strings for MPP tracker	1+1
MPPT voltage range	140 - 1000 V
Apparent power	5500 VA
Maximum input voltage	1100 V
Nominal AC power	5000 W
Max. short circuit current of the module field	18.2 / 18.2 A
Start-up voltage	140 V
Number of MPP trackers	2
Maximum AC current	8 A
Rated mains frequency (Hz)	50/60, ±5
Nominal operating voltage	600 V
Nominal AC current	7.2 A
Maximum input power	7500 W
Output voltage	3/N/PE, 220V/380V, 230V/400V 240V/415V
Input current	14 / 14 A
Temperature protection	Y
Monitoring of isolation	Y
Monitoring of leakage current	Y
Overvoltage protection	Y
Overvoltage protection of AC output	Y
Island mode protection	Y
Overcurrent protection	Y
Polarity reverse circuit protection	Y
Short circuit protection	Y
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 100%
Operating temperature (T-T)	-25 - 60 °C
Width	480 mm
Depth	183.5 mm
Weight	17 kg
Height	370 mm
Quantity per pack	1 pc(s)
Noise level	30 dB
