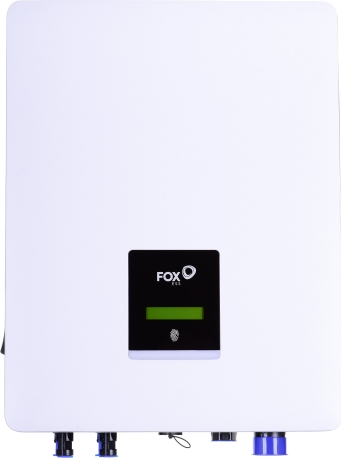

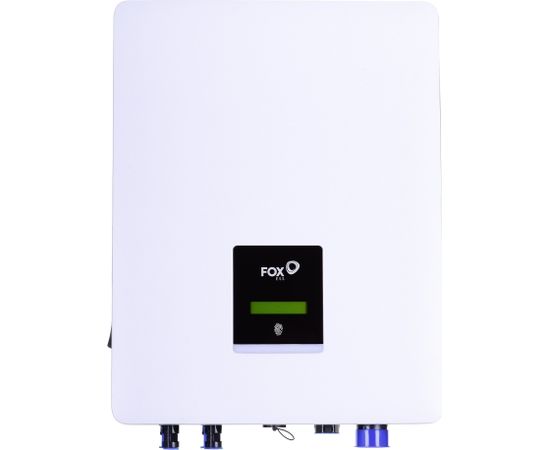

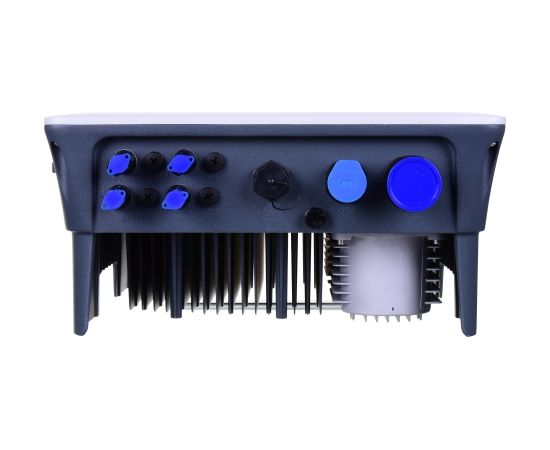

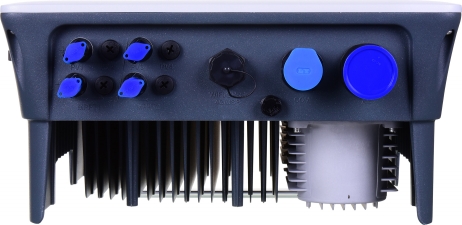

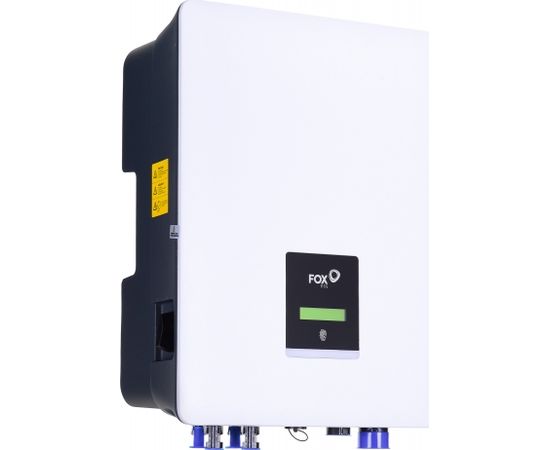

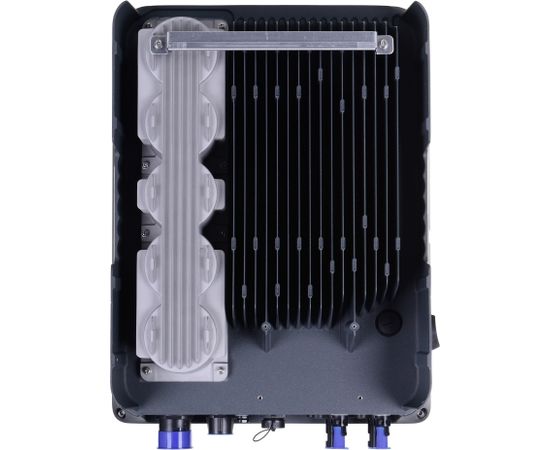

Fox Ess Inverter FoxEss T6-G3 / 3-phase

KODS: T6-G3

Preces ID:905826

846⁵⁰ ^€

Prece izpārdota

Piegāde

Apmaksas veidi

Mūsu priekšrocības

24 mēnešu garantija

SMS / E-pasta paziņojumi

Preču atgriešana 14 dienu laikā

Dažādi maksājuma veidiPay orders in convenient ways: cash to the courier, by bank transfer on the receipt of the bank or by credit card right at the time of the order.

Godīga cenaLepojamies, ka arī juridiskām personām esošā cena ir bez kādiem papildus maksājumiem!

RažotājsFoxEss

Preces apraksts
Specifikācija
Uzdot jautājumu
Energoefektivitātes lapa
Video

Certification	AS4777.2-2015 / VDE-AR-N 4105 /VDE0126-1-1 /G98 / G99 / EN50549-1/ CEI 0-21/ NB/T32004 IEC62116 /IEC61727 /IEC616
Power supply type	Indoor/outdoor
Power current type	DC-to-AC
Purpose	Solar panel
Protection class	1 / AC: III; DC: ll
Product colour	White
Connectivity	Counter
Built-in display	LCD
Efficiency	98.6%
Safety	IEC 62109-1/2
Installation height (max)	3000 m
Electromagnetic compatibility	IEC 61000-6-1 /IEC 61000-6-2 /IEC 61000-6-3 /IEC61000-4-2/3/4/5/6/8
International Protection (IP) code	IP65
Number of phases	3

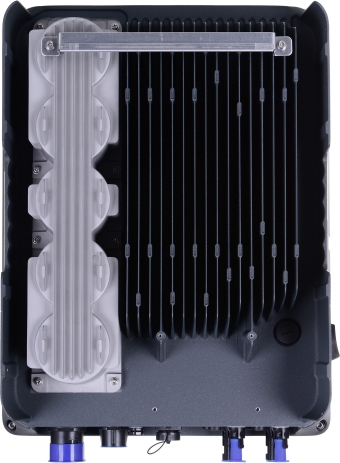

Cooling system	Convection
Topology	Transformerless
Maximum input power	9000 W
Nominal operating voltage	600 V
Output voltage	3/N/PE, 220V/380V, 230V/400V 240V/415V
Start-up voltage	140 V
Input current	14 / 14 A
Strings for MPP tracker	1+1
Rated mains frequency (Hz)	50/60, ±5
Nominal AC power	6000 W
MPPT voltage range	140 - 1000 V
Max. short circuit current of the module field	18.2 / 18.2 A
Number of MPP trackers	2
Maximum AC current	9.6 A
Maximum input voltage	1100 V
Apparent power	6600 VA
Nominal AC current	8.7 A
Overcurrent protection	Y
Short circuit protection	Y
Monitoring of isolation	Y
Polarity reverse circuit protection	Y
Overvoltage protection of AC output	Y
Temperature protection	Y
Monitoring of leakage current	Y
Overvoltage protection	Y
Island mode protection	Y
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100%
Depth	183.5 mm
Width	480 mm
Weight	17 kg
Height	370 mm
Quantity per pack	1 pc(s)
Noise level	55 dB
