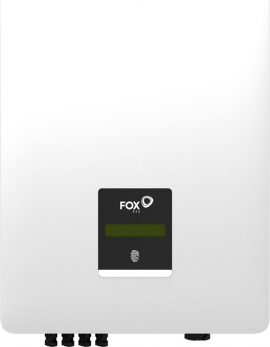

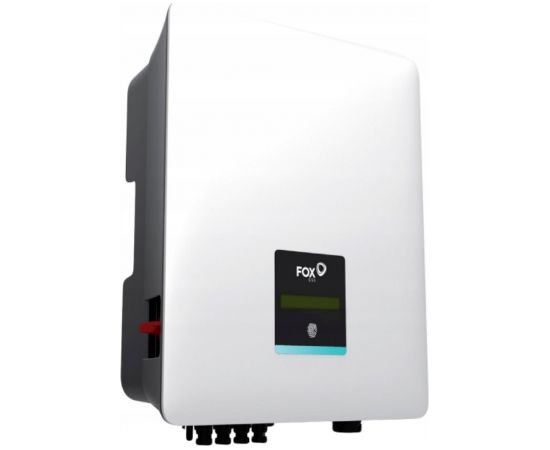

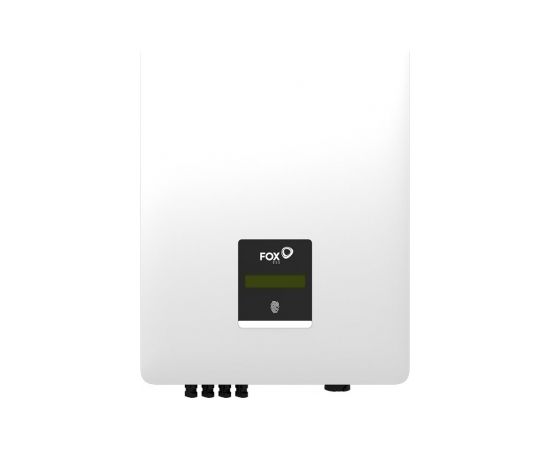

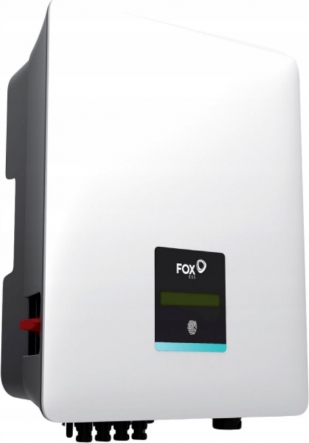

Fox Ess Inverter FoxEss T10-G3 / 3-phase

KODS: T10-G3

Preces ID:905762

1037¹⁰ ^€

Prece izpārdota

Piegāde

Apmaksas veidi

Mūsu priekšrocības

24 mēnešu garantija

SMS / E-pasta paziņojumi

Preču atgriešana 14 dienu laikā

Dažādi maksājuma veidiPay orders in convenient ways: cash to the courier, by bank transfer on the receipt of the bank or by credit card right at the time of the order.

Godīga cenaLepojamies, ka arī juridiskām personām esošā cena ir bez kādiem papildus maksājumiem!

RažotājsFoxEss

Preces apraksts
Specifikācija
Uzdot jautājumu
Energoefektivitātes lapa
Video

Certification	AS4777.2-2015 / VDE-AR-N 4105 /VDE0126-1-1 /G98 / G99 / EN50549-1/ CEI 0-21/ NB/T32004 IEC62116 /IEC61727 /IEC616
Connectivity	E-stop
Topology	Transformerless
Number of phases	3
Electromagnetic compatibility	IEC 61000-6-1 /IEC 61000-6-2 /IEC 61000-6-3 /IEC61000-4-2/3/4/5/6/8
Product colour	White
Efficiency	98.6%
Protection class	1 / AC: III; DC: ll
International Protection (IP) code	IP65
Safety	IEC 62109-1/2
Built-in display	LCD
Purpose	Solar panel
Installation height (max)	3000 m
Power supply type	Indoor/outdoor
Power current type	DC-to-AC
Cooling system	Convection
Maximum AC current	15.9 A
Nominal AC current	14.5 A
Number of MPP trackers	2
Start-up voltage	140 V
Strings for MPP tracker	1+1
Nominal operating voltage	600 V
Nominal AC power	10000 W
Rated mains frequency (Hz)	50/60, ±5
Maximum input power	15000 W
Input current	14 / 14 A
Apparent power	11000 VA
Maximum input voltage	1100 V
Max. short circuit current of the module field	18.2 / 18.2 A
MPPT voltage range	140 - 1000 V
Output voltage	3/N/PE, 220V/380V, 230V/400V 240V/415V
Monitoring of leakage current	Y
Temperature protection	Y
Monitoring of isolation	Y
Overvoltage protection of AC output	Y
Overvoltage protection	Y
Island mode protection	Y
Overcurrent protection	Y
Polarity reverse circuit protection	Y
Short circuit protection	Y
Operating relative humidity (H-H)	0 - 100%
Operating temperature (T-T)	-25 - 60 °C
Storage temperature (T-T)	-40 - 70 °C
Width	480 mm
Height	370 mm
Depth	183.5 mm
Weight	17 kg
Quantity per pack	1 pc(s)
Noise level	55 dB
