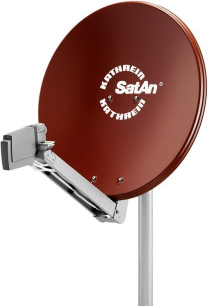

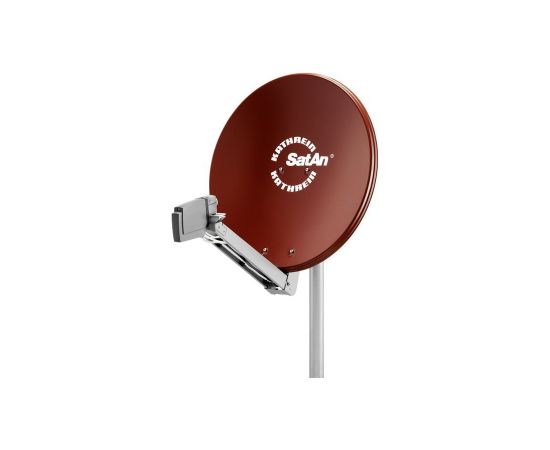

Kathrein CAS 80 red
| Featuress - Consists of refl ector, feed system support and mast support - Refl ector made of aluminium, powder coated - Feed system support made of galvanised sheet steel, plastics coated - All connectors (screws, rivets, discs) are made of corrosion-resistant stainless steel and zinc die-casting - Cable holder for up to 8 coaxial cables - Threaded clamp of hot-dip galvanised steel - High ease of installation: Completely pre-mounted, refl ector keyhole fi xing system, zinc die-cast wing nuts, standardised hexagon size, elevation scale on both sides, minimal support arm Product dimensions due to fold-down Features - Optimal electrical data in lowest mechanical Product dimensions due to offset-feed - Available in graphite-grey, white or red-brown - TÜV design approved - No additional components are required to be able to mount two universal feed systems to receive the signals of satellites 3° to 4° (ASTRA 19.2°/23.5°) or 6° (e.g. ASTRA/EUTELSAT-HOTBIRD) apart on the boom For any other combination, the ZAS 90 multifeed-adaptor plate is additionally required. Reflector Size 75 cm Area of Reception 10.7-12.75 GHz Mast Diameter 38-90 mm Netto weight (without packaging) 6.7 kg | ||||||||||||||||||||||||
|
Ražotājs:
KATHREIN
