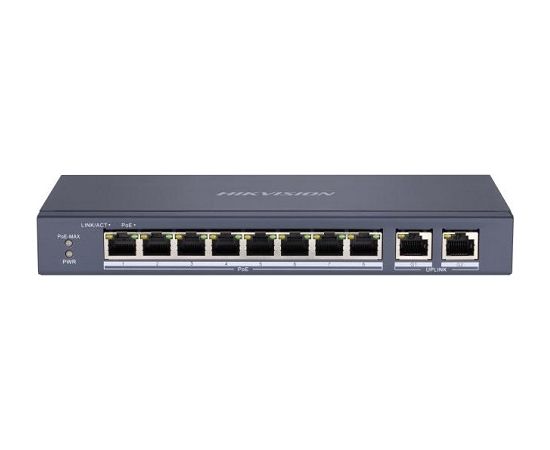

PoE switch Hikvision DS-3E0310P-E/M
| 8 Port Fast Ethernet Unmanaged POE Switch Features Model: DS-3E0310P-E/M 8 x 10/100 Mbps PoE port, and 2 x Gigabit RJ45 port. IEEE 802.3at/af standard for PoE ports (Max. 60 W PoE output). IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard. 6 KV surge protection for PoE ports. Up to 300 m long-range transmission. Wire-speed forwarding. Store-and-forward switching. Solid high-strength metal shell. Reliable fan-free design. Specifications: General • Shell: Metal material • Net Weight: 0.555 kg (1.22 lb) • Gross Weight: 1.20 kg (2.65 lb) • Dimension (W x D x H): 217.6 mm x 103.35 mm x 27.8 mm (8.57'' x 4.07'' x 1.09'') • Working Temperature: 0 °C to 40 °C (32 °F to 104 °F) • Storage Temperature: -40 °C to 85 °C (-40°F to 185 °F) • Relative Humidity: 5% to 95% (no condensation) • Power Supply: 48 VDC, 1.35 A • Power Consumption in Idle: 5 W • Installation Mode: Desk-Mounted,Wall-Mounted • Surge Protection: 6 KV Network Parameters • Ports: 8 x 10/100 Mbps PoE port, 2 x Gigabit RJ45 port • MAC Address Table: 8 K • Switching Capacity: 5.6 Gbps • Packet Forwarding Rate: 4.17 Mpps • Internal Cache: 4 Mbits PoE Power Supply • PoE Standard: IEEE 802.3af;IEEE 802.3at • PoE Power Pin: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) • PoE Port: Ports 1 to 8 • Max. Port Power: 30 W • PoE Power Budget: 60 W Dialing Function • Ports 1 to 8 : up to 300 m. Long range performance may vary depending on camera model or cable condition. Approval • EMC: FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015) • Safety: UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) • Chemistry: CE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006) |
Ražotājs:
HIKVISION
