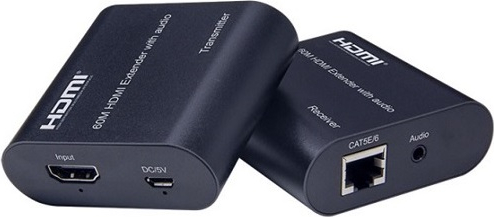

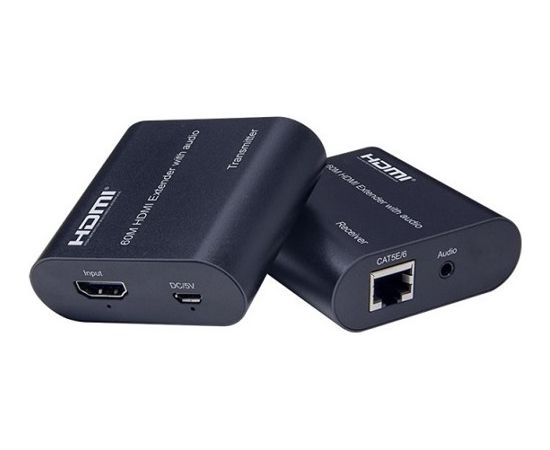

Extradigital HDMI Extender 60m, 1080P

KODS: CA916139

Preces ID:1702260

25²⁰ ^€

Piegādātāja noliktavā: 5 prece(s)

+ −

Pasūtot, birojā pēc 2-3 darba dienām

Piegāde

Apmaksas veidi

Mūsu priekšrocības

24 mēnešu garantija

SMS / E-pasta paziņojumi

Preču atgriešana 14 dienu laikā

Dažādi maksājuma veidiPay orders in convenient ways: cash to the courier, by bank transfer on the receipt of the bank or by credit card right at the time of the order.

Godīga cenaLepojamies, ka arī juridiskām personām esošā cena ir bez kādiem papildus maksājumiem!

RažotājsEXTRADIGITAL

Preces apraksts
Specifikācija
Uzdot jautājumu
Energoefektivitātes lapa

HDMI extender up to 60m, 1080P, EDID, with 3.5mm audio ports.
The HDMI extender uses a single Ethernet (Cat5e or Cat6) cable instead of an HDMI cable to transmit high-definition video and audio signals up to 60 meters. Power supply via micro USB cable.

Features:
Supports 1080p@60Hz signal.
EDID (Extended Display Identification Data) function ensures stable video transmission regardless of the connected display. The EDID switch allows you to choose whether the source will send video at 720P or 1080P resolution, ensuring compatibility and stable signal as needed. Default EDID resolution is set to 1080P. To switch, press for 3 seconds.
Both the TX and RX support 3.5mm stereo audio output.
Low power consumption, low operating temperature, and high safety level.
Simple connection (plug and play), no additional software required.
Can be used with TV, PC, projectors, laptops, DVD players, PS3, video cameras.

Technical specifications:
Max. (CAT5e/CAT6 cable) length between transmitter and receiver: 60m.
HDMI resolution: 1080p/1080i/720p/576p/576i/480p/480i.
Max. bandwidth: 150MHz.
Max. data rate: 4.5Gbps.
Input video signal: 0.5~1.5V p-p.
Output DDC signal: 5V p-p (TTL).
Input cable distance: up to 10m AWG26 HDMI.
Output cable distance: up to 15m AWG26 HDMI.
Max. transmitter (TX) operating current: 300mA.
Max. receiver (RX) operating current: 300mA.
Operating temperature: -15°C ~ +45°C.
Operating humidity: 5-90%RH (non-condensing).
Size: 60x56x19mm.
Weight: TX 53g; RX 53g.

Transmitter ports:
DC/5V - power input port.
Power indicator.
INPUT - HDMI input.
HDMI status indicator.
CAT5E/6 - CAT5e/CAT6 cable port.
AUDIO - stereo output.
EDID - 720P / 1080P switch button (press 3s).
Receiver ports:
DC/5V - power input port.
Power indicator.
OUTPUT - HDMI output.
HDMI status indicator.
CAT5E/6 - CAT5e/CAT6 cable port.
AUDIO - stereo output.

Packing list:
Transmitter (TX).
Receiver (RX).
Micro USB cable x2.
Users manual.

Warranty: 24 months.
