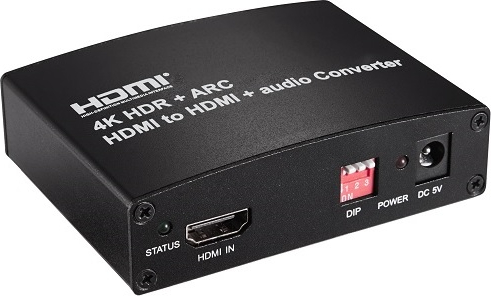

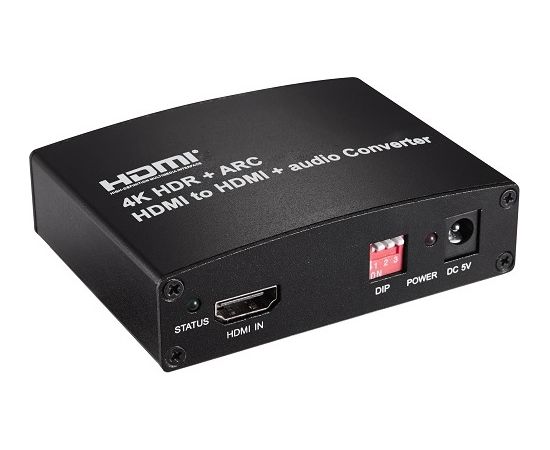

Extradigital HDMI Audio Extractor, HDMI to HDMI +Audio, 4K 60Hz

KODS: CA916122

Preces ID:1702261

39⁸⁰ ^€

Piegādātāja noliktavā: 5 prece(s)

+ −

Pasūtot, birojā pēc 2-3 darba dienām

Piegāde

Apmaksas veidi

Mūsu priekšrocības

24 mēnešu garantija

SMS / E-pasta paziņojumi

Preču atgriešana 14 dienu laikā

Dažādi maksājuma veidiPay orders in convenient ways: cash to the courier, by bank transfer on the receipt of the bank or by credit card right at the time of the order.

Godīga cenaLepojamies, ka arī juridiskām personām esošā cena ir bez kādiem papildus maksājumiem!

RažotājsEXTRADIGITAL

Preces apraksts
Specifikācija
Uzdot jautājumu
Energoefektivitātes lapa

HDMI to HDMI+audio converter converts the HDMI video signal to displayer/projector, and converts the stripped HDMI audio digital signal via the Optical/ Coaxial audio output to amplifier or speaker, the stripped HDMI audio analog signal via output to the headset, So that audio and video can be separated. The resolution of this converter can be up to 4096X2160/60Hz

Features:
Extracts audio from the HDMI video.
Provides both digital and analog audio outputs (optical, coaxial, 3.5mm audio).
Support HDMI 2.0/HDCP 2.2
Support 3D video format.
Support highest resolution to 4096X2160/60Hz.
Support the max baud rate of 6G and the TMDS clock is 600Mhz.
Support 8/10/12 bit deep color.
Support AWG26 HDMI standard cable: when the resolution is 1080p and below, input up to 8 meters, output up to 8 meters.
Support HDMI 2.0 standard cable: when the resolution is 4K/60H, input up to 3 meters, output up to 5 meters.
Support ARC/CEC control.
Support HDR.
Support YUV4:2:0/4:2:2/4:4:4 and RGB 4:4:4.
Supports EDID management.

Specifications:
HDMI version: HDMI 2.0.
HDMI resolution: max. 4096x2160@60 Hz.
Supported video format: 8/10/12 bit Deep Color.
Supported audio format: DTS-HD / Dolby TrueHD / DTS / Dolby AC3 / DSD.
Cable length (input): up to 8m (1080p resolution) HDMI AWG26; up to 3m (4K/60Hz resolution) HDMI 2.0.
Cable length (output): up to 8m (1080p resolution) HDMI AWG26; up to 5m (4K/60Hz resolution) HDMI 2.0.
Power adapter: AC (50Hz, 60Hz) 100V–240V; DC 5V / 1A.
Max. bandwidth: 600 MHz.
Max. data transfer rate: 6 Gbps.
Max. operating current: 0.83A.
Operating temperature: -15°C ~ +55°C.
Dimensions: 67x88x24 mm.
Weight: 150 g.

Input ports:
DC/5V – Power input.
POWER – Power indicator light.
DIP – EDID switch.
HDMI-IN – HDMI input.
STATUS – Status indicator light.

Output ports:
HDMI-OUT – HDMI output.
R/L – 3.5 mm (R/L) jack.
COAXIAL – RCA (coaxial) port.
OPTICAL – Optical (Toslink) port.

Warranty: 24 months.
