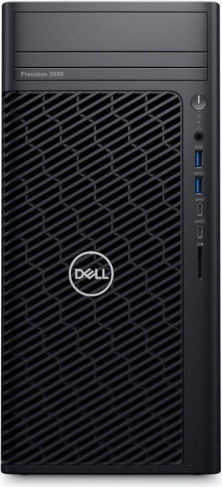

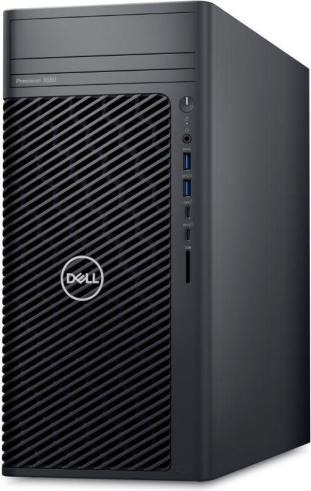

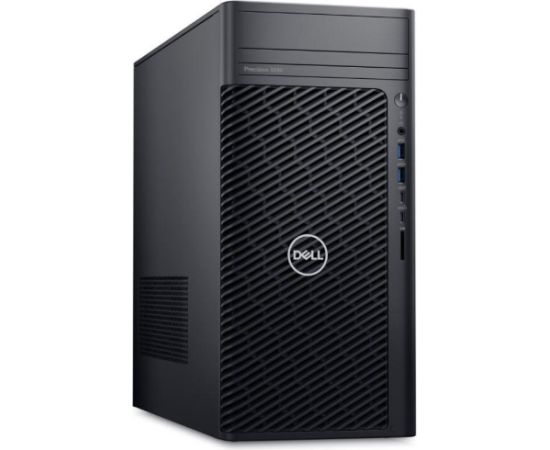

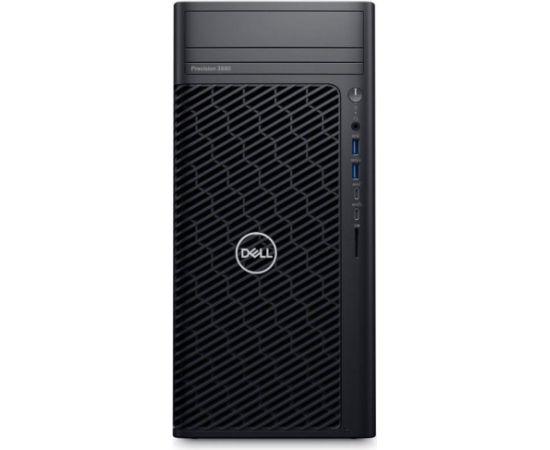

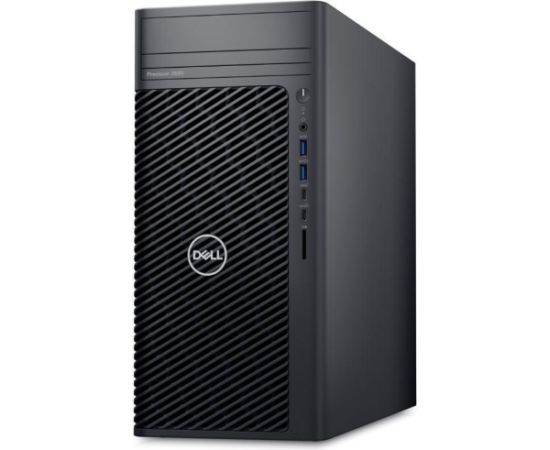

| Summary | DELL Precision 3680. Processor family: Intel® Core™ i9, Processor model: i9-14900K. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel UHD Graphics 770. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 500 W. Chassis type: Tower. Product type: Workstation. Product colour: Black |
| Category Code | DT |
| CnCode | 84714900 |
| Unit Box Height | 0.345 |
| Unit Box Length | 0.54 |
| Unit Box Width | 0.49 |
| Cable lock slot | Jā |
| Cable lock slot type | Kensington |
| Chassis type | Tower |
| Placement supported | Vertical |
| Product colour | Black |
| Viewing window | Nē |
| Water cooling system | Nē |
| Efficient cores | 16 |
| Efficient-core base frequency | 2.4 GHz |
| Efficient-core Max Turbo Frequency | 4.4 GHz |
| Maximum turbo power | 253 W |
| Number of processors installed | 1 |
| Performance cores | 8 |
| Performance-core base frequency | 3.2 GHz |
| Performance-core Max Turbo Frequency | 5.6 GHz |
| Processor base power | 125 W |
| Processor boost frequency | 6 GHz |
| Processor cache | 36 MB |
| Processor cache type | Smart Cache |
| Processor cores | 24 |
| Processor family | Intel® Core™ i9 |
| Processor generation | Intel® Core™ i9 (14th gen) |
| Processor manufacturer | Intel |
| Processor model | i9-14900K |
| Processor threads | 32 |
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Maximum internal memory | 128 GB |
| Memory data transfer rate | 4400 MT/s |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 4x DIMM |
| Non-ECC | Jā |
| Number of SSDs installed | 1 |
| NVMe | Jā |
| Optical drive type | Nē |
| SSD capacity | 1000 GB |
| SSD form factor | M.2 |
| SSD interface | PCI Express 4.0 |
| Storage media | SSD |
| Total SSDs capacity | 1000 GB |
| Total storage capacity | 1000 GB |
| Discrete graphics card | Nē |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card | Jā |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Jā |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| LAN controller | Intel® I219-LM |
| Wi-Fi | Nē |
| Combo headphone/mic port | Jā |
| DisplayPort version | 1.4a |
| DisplayPorts quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-out | Jā |
| Number of front USB ports | 4 |
| Number of rear USB ports | 6 |
| Number of USB ports with PowerShare support | 2 |
| PowerShare | Jā |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 3 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Audio chip | Realtek ALC3246-CG |
| Audio system | High Definition Audio |
| Built-in speaker(s) | Jā |
| Market positioning | Business |
| Motherboard chipset | Intel W680 |
| Number of speakers | 1 |
| Password protection | Jā |
| Product type | Workstation |
| Trusted Platform Module (TPM) | Jā |
| Trusted Platform Module (TPM) version | 2.0 |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Trial software | Microsoft Office Trial,McAfee Business Protection 1-year |
| 80 PLUS certification | 80 PLUS Platinum |
| Power supply | 500 W |
| Power supply input frequency | 47/63 Hz |
| Power supply input voltage | 90 - 264 V |
| Non-operating altitude | -15.2 - 10668 m |
| Non-operating shock | 105 G |
| Non-operating vibration | 2 G |
| Operating altitude | -15.2 - 3048 m |
| Operating relative humidity (H-H) | 20 - 85 % |
| Operating shock | 40 G |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating vibration | 0.52 G |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage temperature (T-T) | -40 - 65 °C |
| Sustainability certificates | ENERGY STAR/EPEAT Gold |
| Sustainability compliance | Jā |
| Depth | 420.2 mm |
| Height | 372.9 mm |
| Width | 173 mm |
| Cables included | AC |
| Carbon emissions, end-of-life (kg of CO2e) | 15.022 |
| Carbon emissions, energy usage (kg of CO2e) | 193.256 |
| Carbon emissions, logistics (kg of CO2e) | 17.864 |
| Carbon emissions, manufacturing (kg of CO2e) | 180.264 |
| Display included | Nē |
| PAIA version | GaBi version 1, 2024 |
| Total carbon footprint (kg of CO2e) | 406 |
| Desktop Computer Family name | Precision |
| KB language | ENG |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.091287 cubm |
| Unit Calculated Weight | 14 kg |
