Minis Forum X1-255 AMD Ryzen 7 H255 miniPC, barebone

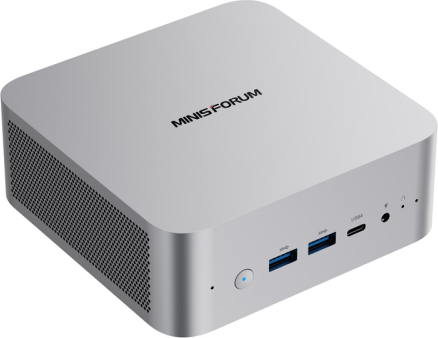

Minis Forum X1-255 is a high-performance PC that is suitable for both office work and more demanding tasks. Equipped with a powerful AMD Ryzen™ 7 processor and a variety of connectors, it allows you to freely customize your configuration. Thanks to its compact dimensions (128 x 126.5 x 52.5 mm), it will fit virtually anywhere - on a desk, behind a monitor or in a workspace with limited space.

A man watches a movie while sitting on the couch, on the table next to the mini pc

Powerful AMD Zen 4-series processor

At the heart of the device is an 8-core and 16-thread AMD Ryzen™ 7 255 processor, based on the Zen 4 architecture. A base clock speed of 3.8 GHz with the ability to accelerate to 4.9 GHz ensures smooth operation in office applications, browsers, and even lighter 3D modeling or video editing.

AMD Ryzen AI processor on a bright background

Built-in AMD Radeon™ 780M graphics

The integrated AMD Radeon™ 780M graphics chip allows for smooth high-definition multimedia and even simple graphics processing. It's a reasonable choice for users who don't need a dedicated graphics card, but still expect smooth image handling.

2 monitors and 2 tablets connected to mini pc on desk

Flexible memory and disk configuration

The X1-255 supports up to 64 GB of DDR5 memory clocked at 5600 MT/s for fast application loading and seamless multitasking. Two M.2 NVMe SSD (PCIe 4.0) slots support the installation of drives up to 4TB each, allowing you to build ultra-fast and high-capacity storage without external solutions.

Children in the classroom perform tasks on the computer, mini pc placed on the tables

Efficient cooling and quiet operation

A turbo fan with a speed of up to 4,000 rpm and a variable-phase material is responsible for cooling. This system effectively maintains a low temperature even under full load, while remaining quiet - in Silent mode it generates just 38 dB.

Device connected to mni pc minis forum on gray table

Reliable connectivity

The MiniPC offers a wide selection of ports, including USB4, HDMI 2.1 FRL, DisplayPort, OCuLink, as well as a 2.5G LAN connector. This makes it easy to connect a 4K/8K monitor, high-speed external drive or other accessories. The computer also supports Wi-Fi 7 and Bluetooth 5.4 for stable wireless connectivity.

Mini pc minis forum on light background next to icons of Ethernet port, Bluetooth and Wi-Fi

With convenience and installation in mind

The unit comes with a standard VESA mounting hole for easy installation on the back of a monitor, for example. You'll also find a power button, a Kensington Lock slot for theft protection and a dedicated reset hole.

A woman with blonde hair works in front of a computer, a mini pc lies on the table

Included

  • mini PC
  • power adapter
  • power cable
  • HDMI cable
  • mounting screws x4
  • M.2 to OCulink adapter card
  • mini PC stand
  • user manual



General information

ManufacturerMinis Forum
SeriesElite Mini
ModelX1-255
Operating SystemWindows 11 Pro support
Dimensions128 × 126 × 52.5 mm (L × W × H)
Weight0.6 kg



Processor (CPU)

Processor modelAMD Ryzen™ 7 255
Number of cores8 (Zen 4 architecture)
Number of threads16
Base clocking3.8 GHz
Maximum clocking (Turbo)4.9 GHz
TDP (Performance mode)Fast: 65W / Slow: 65W
TDP (Balance mode)Fast: 65W / Slow: 54W
TDP (Silent mode)Fast: 55W / Slow: 45W



Graphics chip (GPU)

Integrated graphicsAMD Radeon™ 780M



Memory (RAM)

Memory typeDDR5 (SO-DIMM ×2)
Configurations (optional)0 / 32 / 64 GB
Maximum bandwidth5600 MT/s
Maximum capacity64 GB



Storage

Drive type2 × M.2 2280 NVMe SSD (up to 4 TB per slot, PCIe 4.0 x4)
Disk (optional)0 / 1 TB



Cooling system

Cooling materialVariable-phase material
CPU fanTurbo fan 7515 mm
Max fan speed4000 rpm
Noise level (performance mode)45 dB / at a distance of 50 cm (MINISFORUM lab data)
Noise level (Balance mode)40 dB / 50 cm
Noise level (Silent mode)38 dB / 50 cm



Wireless and wired connectivity

ModuleM.2 2230 with Wi-Fi and Bluetooth
Wi-FiWi-Fi 7
Bluetooth5.4
Ethernet connector2.5 Gigabit LAN (RJ45)
Module: RTL8125BG-CG



Video outputs

HDMI1 × (up to 8K @ 60Hz / 4K @ 120Hz)
DisplayPort (DP)1 × (up to 8K @ 60Hz / 4K @ 120Hz)
USB42 × (up to 8K @ 60Hz / 4K @ 120Hz)



Audio outputs / inputs

Audio outputsHDMI ×1
DP ×1
3.5mm combo jack ×1
Speakers: 2 × (2W each)
Audio inputsDigital microphone (DMIC): 2 ×
3.5mm combo jack: 1 ×



Ports

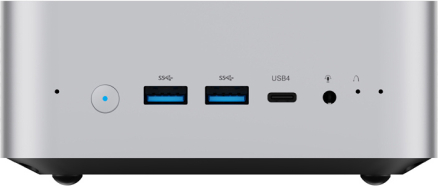

On the front1 × USB4 (PD power supply up to 15W)
2 × USB Type A (USB 3.2 Gen2)
2 × DMIC microphones
1 × Combo jack 3.5mm
1 × Reset hole

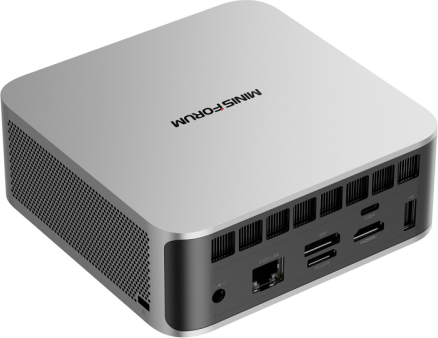

Rear1 × HDMI 2.1 FRL
1 × DP 2.0
1 × USB4 (PD power supply up to 100W & 15W)
1 × RJ45 (2.5 Gigabit LAN)
1 × OCuLink (via M.2 to OCuLink adapter)
1 × USB Type A (USB 2.0)
1 × DC-In



Other

Power button1 ×
Kensington slot1 × (right side)
Reset hole1 ×
VESA mountingYes
Power supply19V / 6.32A (120W)
Dimensions of the plug5525 mm
