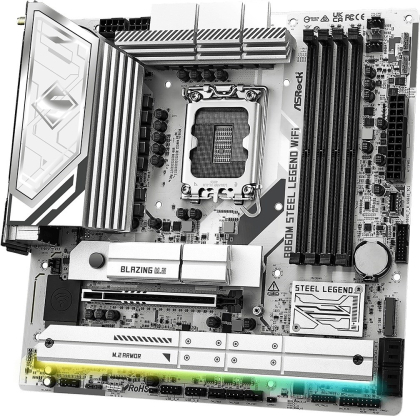

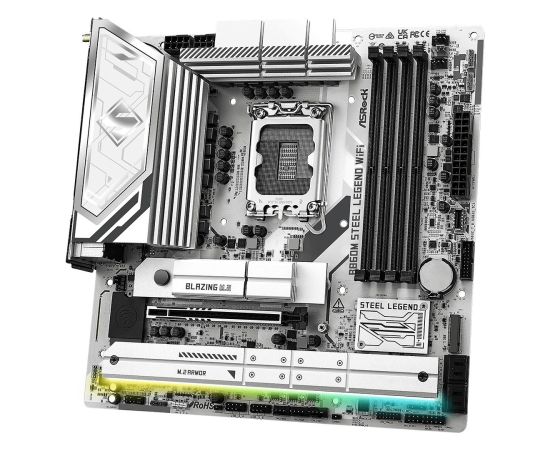

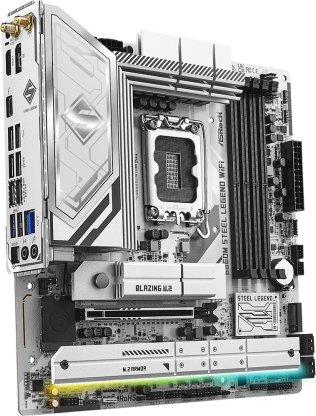

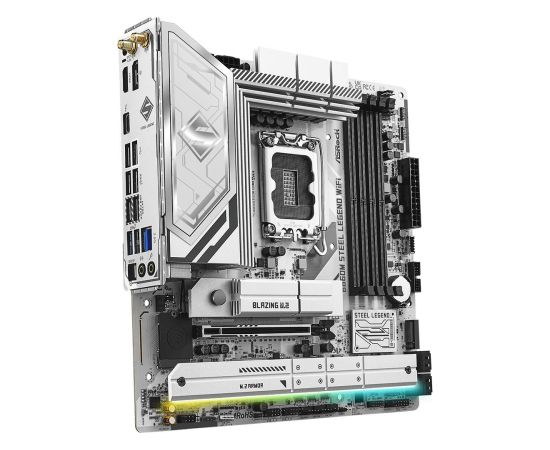

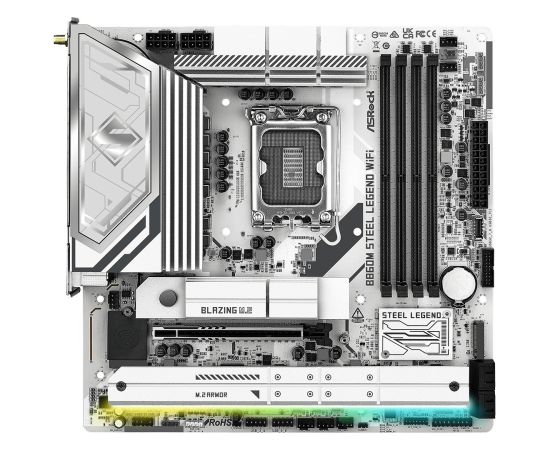

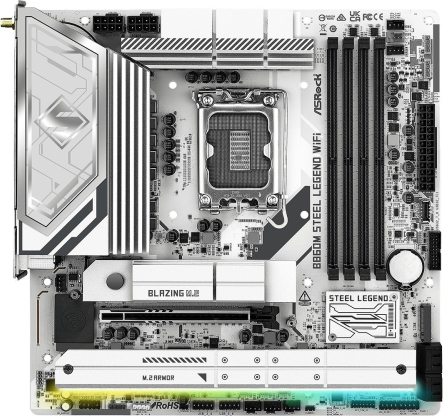

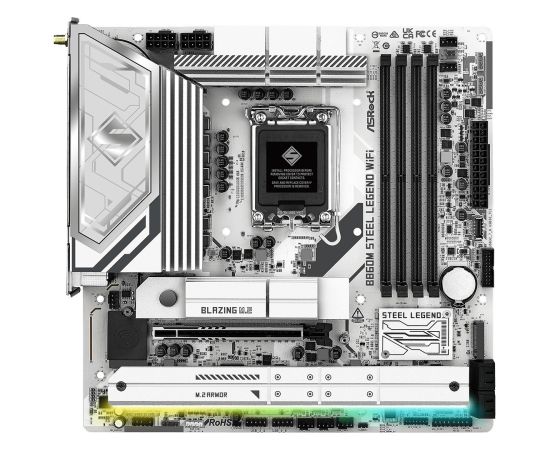

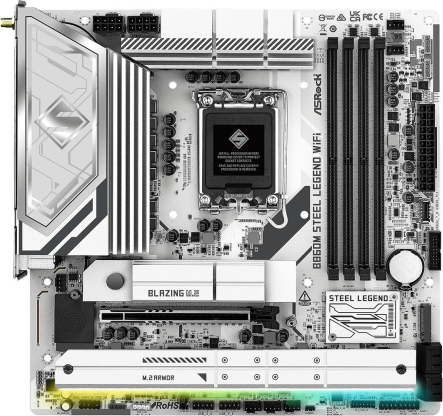

ASRock B860M Steel Legend WiFi motherboard

KODS: B860M STEEL LEGEND WIFI

Preces ID:1553960

203⁶⁰ ^€

Piegādātāja noliktavā: 4 prece(s)

+ −

Piegāde

Apmaksas veidi

Mūsu priekšrocības

24 mēnešu garantija

SMS / E-pasta paziņojumi

Preču atgriešana 14 dienu laikā

Dažādi maksājuma veidiPay orders in convenient ways: cash to the courier, by bank transfer on the receipt of the bank or by credit card right at the time of the order.

Godīga cenaLepojamies, ka arī juridiskām personām esošā cena ir bez kādiem papildus maksājumiem!

RažotājsASROCK

Preces apraksts
Specifikācija
Uzdot jautājumu
Energoefektivitātes lapa
Video

Processor manufacturer	Intel
Compatible processor series	Intel Core Ultra (Series 2)
Supported processor sockets	LGA 1851
Processor socket	LGA 1851 (Socket V1)
HDCP	Jā
On-board graphics card family	Intel Iris Xe Graphics
Maximum resolution	7680 x 4320 pixels
Certification	FCC, CE, ErP/EuP
Windows operating systems supported	Windows 11 x64
Audio output channels	7.1 channels
Motherboard chipset	Intel B860
Product colour	White
Motherboard form factor	micro ATX
Motherboard chipset family	Intel
Audio chip	Realtek ALC1220
Memory channels	Dual-channel
Supported memory types	DDR5-SDRAM
Maximum internal memory	256 GB
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Jā
ECC сompatibility	Non-ECC
Width	244 mm
Depth	244 mm
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Ethernet interface type	2.5 Gigabit Ethernet
Ethernet LAN	Jā
LAN controller	Dragon RTL8125BG
Wi-Fi standards	802.11b
Bluetooth	Jā
Top Wi-Fi standard	Wi-Fi 6E (802.11axe)
Bluetooth version	5.3
MU-MIMO	Jā
Wi-Fi	Jā
TPM connector	Jā
EPS power connector (8-pin)	Jā
Number of chassis fan connectors	4
CPU fan connector	Jā
RGB LED pin header	Jā
Number of SATA III connectors	4
Number of USB 3.2 Gen 2 Type-C ports	1
ATX Power connector (24-pin)	Jā
Front panel audio connector	Jā
Addressable LED connectors	3
Number of water pump connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
12V power connector	Jā
USB 2.0 connectors	4
Number of EPS power connectors (8-pin)	2
Number of CPU fan connectors	2
Number of RGB LED pin headers	1
BIOS type	UEFI AMI
RAID levels	10
Supported storage drive types	HDD & SSD
RAID support	Jā
Supported storage drive interfaces	PCI Express 4.0, PCI Express 5.0, SATA III
Number of storage drives supported	8

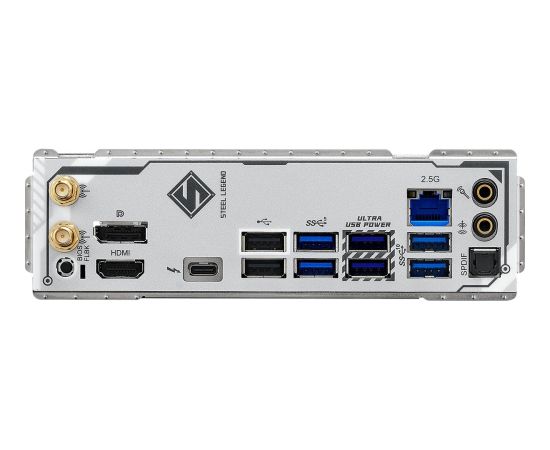

Thunderbolt ports quantity	1
USB connector type	USB Type-A
Headphone outputs	1
USB 2.0 ports quantity	2
HDMI version	2.1
DisplayPort version	1.4
MIC input	1
Antennas quantity	2
HDMI ports quantity	1
DisplayPorts quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Number of USB 3.2 Gen 1 ports	4
Flashback BIOS button	Jā
S/PDIF out port	Jā
Ethernet LAN (RJ-45) ports	1
PCI Express x16 (Gen 4.x) slots	1
Number of SATA III connectors	4
Number of M.2 (M) slots	4
3rd M.2 highest PCI Express generation	4.0
4th M.2 highest PCI Express generation	4.0
1st M.2 largest key size	2280
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	4.0
4th M.2 largest key size	2280
3rd M.2 largest key size	2280
PCI Express x16 (Gen 5.x) slots	1
1st M.2 highest PCI Express generation	5.0
Warnings	Do not open or modify the motherboard to prevent damage.
