General Specifications
|
|
|
Machine Type
|

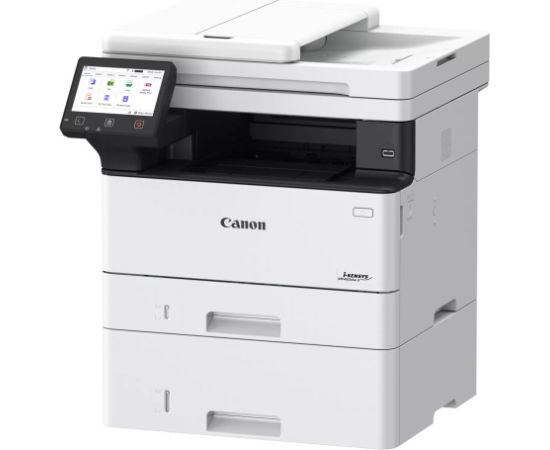

Mono Laser All-In-One
|
|
Available Functions
|
Print, Copy and Scan
|
|
Print Specifications
|
|
|
Print Speed
|
Single sided : Up to 40 ppm (A4)
Up to 65.4 ppm (A5-Landscape)
Double sided : Up to 33.6 ipm (A4)
|
|
Printing Method
|
Monochrome laser beam printing
|
|
Print Resolution
|
Up to 1200 x 1200 dpi
|
|
Warm-up Time
|
Approx. 14 seconds or less from power on
|
|
First-Print-Out Time
|
Approx: 5.0 seconds or less
|
|
Printer Languages
|
UFRII, PCL5e, PCL6, Adobe® PostScript
|
|
Fonts
|
45 PCL fonts
136 PostScript fonts
|
|
Print Margins
|
5 mm-top, bottom, left and right
10 mm-top, bottom, left and right (Envelope)
|
|
Toner Saver Mode
|
Yes
|
|
Advanced Printing Features
|
Encrypted Secure Print
Secure Print
Print from USB memory key (JPEG/TIFF/PDF)
Print from Cloud (Dropbox, GoogleDrive, OneDrive) (PDF/JPEG)
Microsoft Universal Print
iOS: AirPrint, Canon PRINT app
Android; Mopria certified, Canon PRINT app, Canon Print Service Plug-in, IPP everywhere
|
|
Copy Specifications
|
|
|
Copy Speed
|
Single sided (A4): Up to 40 ppm
Double sided (A4): Up to 33.6 ipm
|
|
First-Copy-Out Time
|
Approx. 6.1 seconds or less
|
|
Copy Resolution
|
Up to 600 x 600 dpi
|
|
Copy Modes
|
Text, Text/Photo (Default),Text/Photo (High Quality), Photo
|
|
Double Sided Copying
|
2-sided to 2-sided (Automatic)
|
|
Multiple Copies
|
Up to 999 copies
|
|
Reduction / Enlargement
|
25-400% in 1% increments
|
|
Other Features
|
Preset R/E Ratios by Area, Two-Sided, Density Adjustment, Original Type Selection, Two-sided Original, Sort, N on 1, Sharpness, Erase Frame, Copy ID Card, Copy Passport, Color Mode, Reserved copy
|
|
Scan Specifications
|
|
|
Standard Type
|
Colour
|
|
Scan Resolution
|
Optical: Up to 600 x 600 dpi
Enhanced: Up to 9600 x 9600 dpi
|
|
Scan Speed
|
Single sided mono: 50ipm (300x300dpi)
Single sided colour: 40ipm (300x300dpi)
Double sided mono: 100ipm (300x300dpi)
Double sided colour: 80ipm (300x300dpi)
Single sided mono: 40ipm (300x600dpi)
Single sided colour: 20ipm (300x600dpi)
Double sided mono: 80ipm (300x600dpi)
Double sided colour: 40ipm (300x600dpi)
|
|
Colour Scanning Depth
|
24 bit/24 bit (input/output)
|
|
Greyscales
|
256 levels
|
|
Compatibility
|
TWAIN , WIA, ICA
|
|
Maximum Scan Width
|
216mm
|
|
Scan to E-mail
|
TIFF/JPEG/PDF/Compact PDF/Searchable PDF / PDF/A-1b
|
|
Scan to Cloud
|
TIFF/JPEG/PDF/PNG
|
|
iFAX
|
ITU-T.37
|
|
Media Handling
|
|
|
Scanner Type
|
Platen, 2-sided ADF (single pass)
|
|
Paper Input (Standard)
|
250-sheet cassette
100-sheet multi-purpose tray
50-sheet ADF
|
|
Paper Input (Option)
|
550-sheet cassette (Option)
|
|
Maximum Paper Input Capacity
|
900 sheets
|
|
Paper Output
|
150-sheet
|
|
Media Types
|
Plain paper, Recycled paper, Heavy Paper, Thin paper, Label, Post card, Envelope
|
|
Media Sizes
|
Cassette (Standard and optional):
A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K,
Custom sizes: Min. 105 x 148 mm Max. 216.0 x 355.6 mm.
Multi-purpose tray:
A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Indexcard, Envelope (COM10, Monarch, C5, DL),
Custom sizes: Min 76.2 x 127 mm Max. 216.0 x 355.6 mm.
ADF:
A4, A5, A6, B5, Legal, Letter, Statement,
Custom sizes: Min. 48 x 85.0 mm Max 216 x 355.6 mm
|
|
Media Weights
|
Cassette (standard and optional): 60 to 120 g/m2 Multi-purpose tray: 60 to 199 g/m2 ADF: 60 to 120 g/m2
|
|
Double Sided Printing
|
A4, Legal, Letter, OFFICIO, B-OFFICIO, M-OFFICIO, GLGL, Foolscap
Custom size - Min. 210 x 279.4 mm Max. 216.0 x 355.6 mm
60 to 120 g/m2
|
|
Interface & Software
|
|
|
Interface Type
|
USB 2.0 Hi-Speed, 10BASE-T/100BASE-TX/1000Base-T, Wireless 802.11b/g/n, Wireless Direct Connection
|
|
Operating System Compatibility
|
Windows® 11 / Windows® 10 / Server® 2025 / Server® 2022 / Server® 2019 / Server® 2016
Mac OS X version 10.15 & up
Linux
|
|
Network Protocol
|
Print:
TCP/IP (LPD/Port9100/IPP/IPPS/WSD)
Scan:
Push Scan: File: FTP (TCP/IP), SMB3.1.1 (TCP/IP)
E-mail/I-Fax: SMTP (send), POP3 (receive)
Pull Scan: TCP/IP
Management:
SNMPv1, SNMPv3 (IPv4,IPv6)
Security:
TLS1.3, IPSec, IP address filtering, IEEE802.1X, SNMPv3, SSL (HTTPS, IPPS)
Security (wireless):
Infrastructure Mode:
WPA-PSK(AES), WPA2-PSK(AES), WPA3-SAE (AES), WPA-EAP(AES), WPA2-EAP(AES), WPA3-EAP(AES)
Access Point Mode:
WPA2-PSK(AES), WPA3-SAE (AES)
|
|
Software and Printer Management
|
MF Scan Utility,
Remote User Interface (RUI),
Department ID Management,
Toner Status Tool,
iW Enterprise Management Console: Server-based software for centralised management of a fleet of devices
Cooperating with External Security Audit System (Security Information and Event Management)
eMaintenance: embedded RDS allows remote eMaintenance services such as meter capture, automatic consumables management and remote diagnostics
Application Library
|
|
General Features
|
|
|
Recommended Monthly Print Volume
|
750 - 4,000 pages per month
|
|
Duty Cycle
|
Max. 80,000 pages per month
|
|
Processor Speed
|
1200MHz
|
|
Memory
|
1GB
|
|
Storage
|
4GB
|
|
Control Panel
|
12.7 cm LCD Colour Touch Screen
|
|
Dimensions with Trays
(W x D x H)
|
420 mm x 460 mm x 375 mm
|
|
Installation Space
(W x D x H)
|
689 mm x 1,081 mm x 824 mm
|
|
Weight
|
Approx. 16.3 Kg
|
|
Power Source
|
220-240V(±10%) 50/60Hz (±2Hz)
|
|
Power Consumption
|
Maximum: Approx. 1,280 W
Active printing: Approx. 480W
Standby: Approx. 8 W
Sleep mode: Approx. 0.9 W
Typical Electricity Consumption (TEC): 0.32 kWh/week (230V)
For detailed information relating to Lot26 regulation, please go to:
https://www.canon-europe.com/business/lot26/
|
|
Noise Levels
|
Sound Pressure:
Active: 53 dB
Standby: Inaudible
Sound Power:
Active: Duplex 68dB / Simplex 67dB
Standby: Inaudible
|
|
Consumables
|
|
|
Cartridges
|
Cartridge 070 (3,000 pages)
Cartridge 070H (10,200 pages)
|
|
Accessories & Options
|
|
|
Items
|

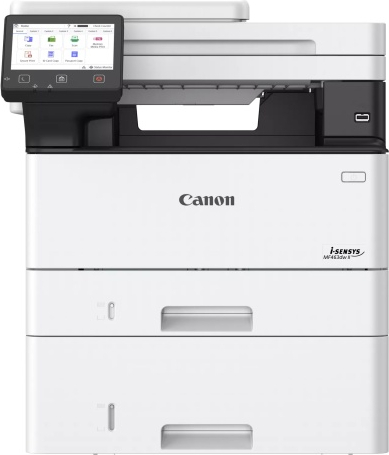

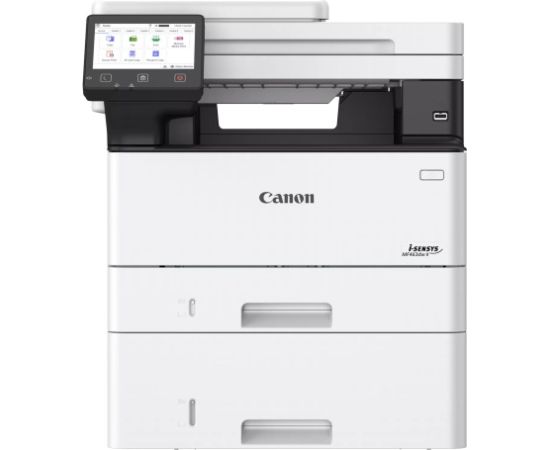

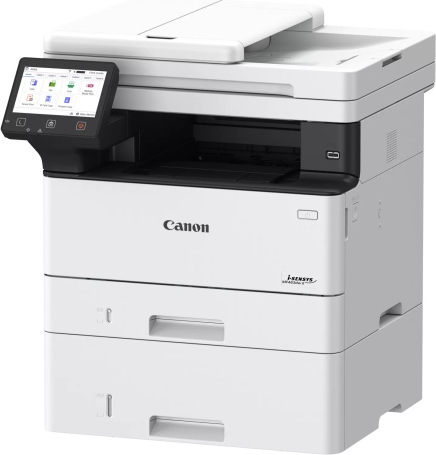

CST.Feeding Module-AH1 (550-sheet cassette) (Option)
|
|
