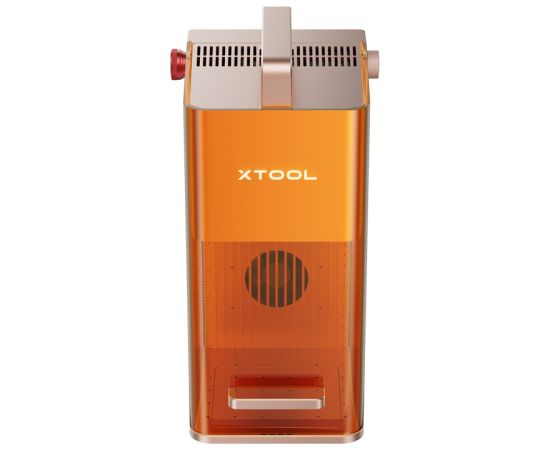

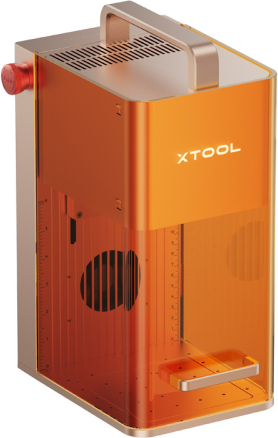

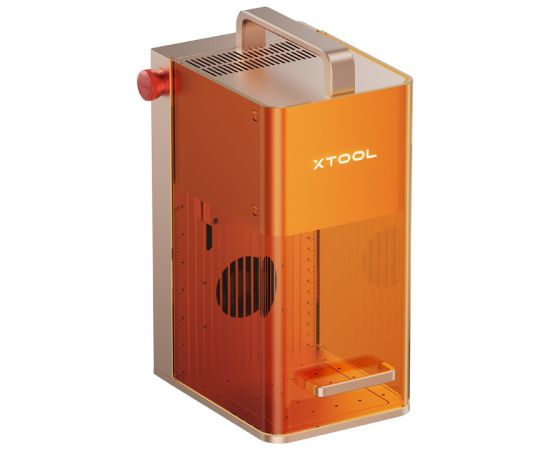

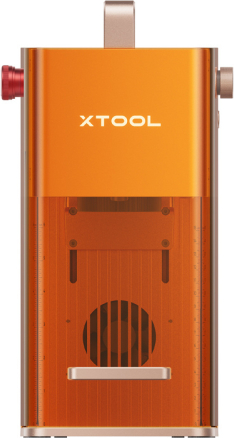

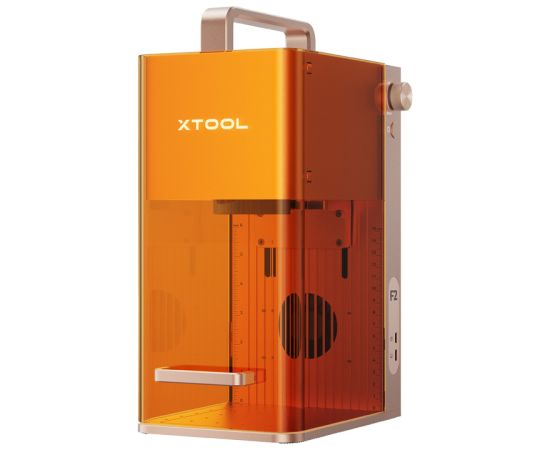

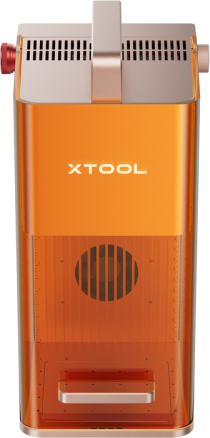

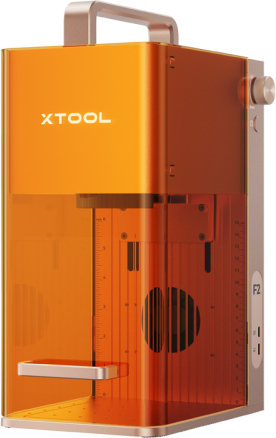

2-in-1 xTool F2 laser engraving machine

2-in-1 xTool F2 laser engraving machine

The 2-in-1 xTool F2 laser engraving machine is equipped with a 15 W diode laser and a 5 W infrared laser, enabling fast and accurate engraving on more than 300 types of materials. It offers speeds of up to 6,000 mm/sec and a movement precision of 0.00199 mm, allowing detailed designs with high repeatability. The standard work area is 115 × 115 mm, and the built-in 50 MP camera enables positioning with 0.1 mm accuracy, minimizing material waste and reducing makeready time.

Dual laser system - wide range of materials

The use of two types of laser significantly expands material processing capabilities. The 15 W diode laser allows cutting wood or plastics, while the 5 W infrared laser is designed for precision engraving of metals, providing clear, darker results.

High speed and detail quality

The F2 model achieves speeds of up to 6,000 mm/s, allowing it to complete various types of projects in a very short time. For example, you can engrave a 13 × 13 mm pendant in just about 49 seconds, and a 71 × 95 mm Christmas card in about 3 seconds. In addition, the small size of the laser spot (0.08 × 0.06 mm for the diode laser and 0.03 × 0.03 mm for the infrared laser) allows you to achieve ultra-thin, even lines, clean edges and high resolution engravings. The device excels at reproducing fine details, high-contrast graphics and photos.

Portable design and expandable working area

The compact design (only 175 × 237 × 334 mm) and weight of 4.6 kg make the xTool F2 engraving machine very easy to transport and convenient to use in various places such as studios, stores and trade shows. The standard 115 × 115 mm working area works well for most projects and working with small items, and if needed, you can expand it to 400 × 115 mm with an optional expansion module ( sold separately). This allows you to realize larger projects and increase the efficiency of batch production.

Intelligent 50 MP camera - full visualization of the work area

The built-in 50 MP camera allows full visualization of the working area and precise alignment of projects with an accuracy of 0.1 mm. This ensures that the design is perfectly aligned the first time, reducing errors and minimizing material waste. The visualization system also includes an enlarged workspace when a dedicated expansion module is used, combining the standard field and the secondary space into one consistent preview. This solution makes it easier to create more complex designs!

Engraving of round objects

A rotary attachment is also available for sale separately, which allows engraving cylindrical and spherical objects, such as cups, thermoses, baubles or rings. This solution enables full, even engraving around the entire surface of the object and expands the range of possible implementations.

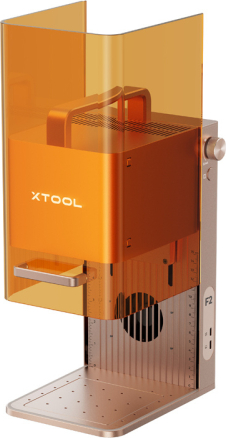

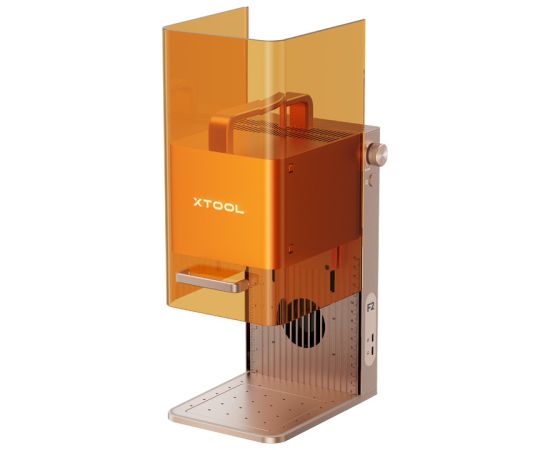

Safe operation and enclosed design

The xTool F2's fully enclosed housing reduces smoke and laser radiation emissions, allowing safe indoor use. So you can use the engraving machine at home, in the store or in the office without worry.

Multiple applications

The xTool F2 engraving machine will be great wherever speed and repeatability are important. You will successfully use it for engraving jewelry, personalizing small products and creating decorations or utility accessories - both individually and in short series. Thanks to its mobile design, high working speed and high precision, the device allows you to carry out orders efficiently - also during fairs, events or directly at the point of sale.
