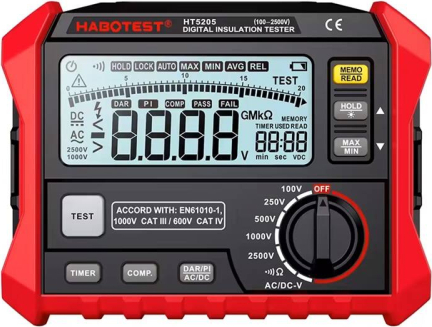

Habotest HT5205 digital insulation tester

Habotest HT5205 is a digital insulation tester that allows you to accurately test the resistance of electrical circuits, wires and electronic devices. Thanks to its wide measuring range (up to 200 GΩ), it allows you to identify potential hazards resulting from weakened insulation, preventing failures and the risk of electric shock. The rugged and shockproof housing, large LCD display and advanced functions such as voltage detection and time measurement make the device an indispensable tool for electricians and electrical installation specialists.

Precise measurements

The device offers AC/DC voltage, resistance and circuit continuity measurements, allowing comprehensive diagnostics of electrical installations. In addition, it is equipped with a dielectric absorption coefficient function and polarization index, which provide accurate information about the condition of insulation.

Timed measurement function and audible alarm

The HT5205 offers a timed insulation resistance measurement function that allows the test to stop automatically after a preset time. In addition, a built-in audible alarm alerts you when the limit values are exceeded, making the device safer to work with.

Ease of use

Thanks to the large LCD display, reading the results is quick and convenient even in unfavorable lighting conditions. A function dial allows easy setting of the measurement range, and a low-battery indicator lets you know when the battery needs to be replaced, eliminating the risk of erroneous readings.

Durable design

Rubber reinforcements protect the device from bumps and drops, and a silicone cover provides resistance to extreme temperatures. This makes the HT5205 tester suitable for workshops, construction sites and harsh industrial environments.

Set for professional applications

The tester comes with test leads, crocodile clamps, 8 AA batteries and a protective case.

Included:

  • Habotest HT5205 digital insulation tester
  • Storage case
  • Test lead x2
  • Crocodile clamp x2
  • AA battery x8
  • User manual



General

ManufacturerHabotest
Manufacturer codeHT5205



Insulation resistance measurement range

100V0 - 1GΩ
250V0 - 2GΩ
500V0 - 20GΩ
1000V0 - 100GΩ
2500V0 - 200GΩ



Open circuit voltage / accuracy

250VDC 250V / ±10%
500VDC 500V / ±10%
1000VDC 1000V / ±10%
2500VDC 2500V / ±10%



DC voltage measurement

Range1000V
Resolution1V
Accuracy±1.0% of reading +5



AC voltage measurement

Range750V
Resolution1V
Accuracy±1.0% of reading +5



Continuity measurement

Range200Ω
Resolution0,1Ω
Accuracy±1.0% of reading +5
Sound signal functionActivates when the resistance is less than 50Ω



Insulation test measurement range

Minimum measurement value3.00MΩ (values below 3.00MΩ are not displayed)
Maximum measurement value200GΩ



Power supply

Battery type8 × AA (included)
Automatic switch offyes


Ražotājs:
HABOTEST
