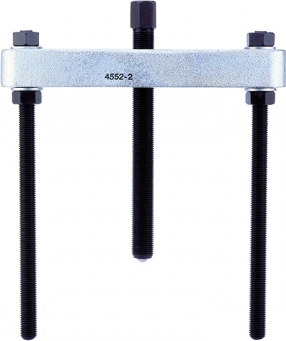

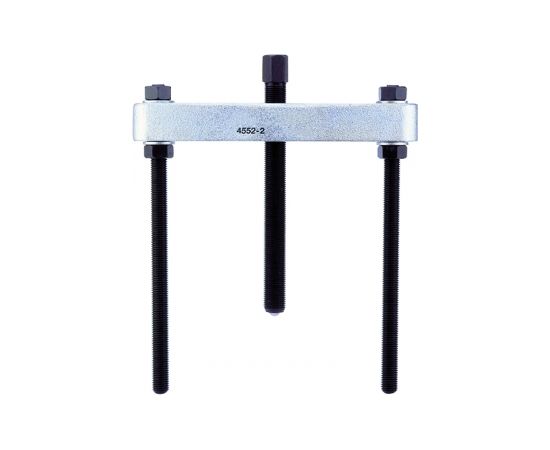

Bahco Puller for separator
| • For maintenance jobs in garages and workshops • To be used with separators series 4551 • Once separation is done, use this puller to complete the job, opening capacity/span depth in mm: • 4552-1, Capacity 45-140 mm, length 150 mm • 4552-2, Capacity 55-200 mm, length 210 mm • 4552-3, Capacity 90-260 mm, length 315 mm • 4552/B Spare body • 4552K Spare tie rod • 4532/S Spare spindle • 4532-OAB/S for 4552-1 (M14 x 1.5 x 135, SW 17, 175 g) • 4532-CD/S for 4552-2 and 4552-3 (G1/2" x 14 x 210, SW 22, 575 g) • The sharp tapered cutting edges of separator are pressed behind the part to be removed • Operation: The sharp tapered cutting edges of separator No. 4551 are pressed behind the part to be removed when tightening the stud nuts • Use puller No. 4552 to withdraw separator and part from the shaft by tightening the rod nuts |
Ražotājs:
BAHCO
